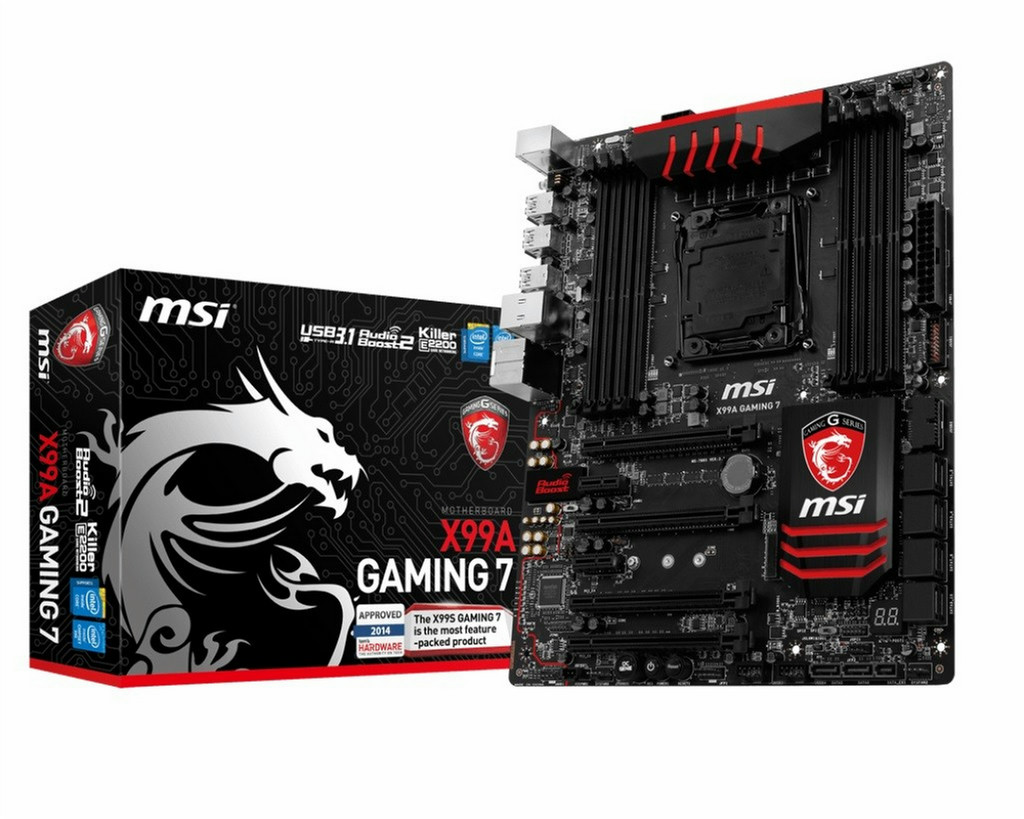

MSI X99A GAMING 7 Intel X99 LGA 2011-v3 ATX motherboard

MSI X99A GAMING 7 Intel X99 LGA 2011-v3 ATX motherboard

EAN: 824142114070
MPN: 7885-032R
发送方式:
交货来源:
德国
更新价格... 📣 询问价格 Не поставляется
运输成本:
От

凡购买和价格 (Advertising *)

顶部
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

技术特点

顶部

性能

主板元件 ATX
处理器插座 LGA 2011-v3 (Socket R)
主板芯片组系列 Intel
音频输出通道数量 7.1 channels
音频系统 Realtek ALC1150
RAID 配置 1, 5, 10
组件应用 PC
可支持的Windows操作系统 Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

内存参数

可支持内存时钟速度 2133, 2200, 2400, 2600, 3000 MHz
无错误检测和更正 Y
无缓冲内存 Y
支持的内存类型 DDR4-SDRAM
内存通道支持 Quad
内存插槽类型 DIMM
內存插槽数量 8
最大内部存储 128 GB

处理器

SMP(适用于表面安装的封装形式)处理器的最大数量 1
处理器插槽 LGA 2011-v3
英特尔®酷睿™ i3/ i5 / i7 系列 i7-xxx Extreme Edition
兼容处理器 Core i7 Extreme Edition

基本輸出輸入系統/BIOS

基本输入输出系统类型 UEFI
清除CMOS按钮 Y
清除CMOS跳线 Y
BIOS开关按钮 Y

内置输入/输出系统

USB 2.0接口 4
ATX电源接头 Y
风扇电源接头 Y
TPM(可信任安全平台模组)接口 Y
USB 3.0(第 1代3.1)连接器 4
SATA III连接器数量 10
周边(莫仕)电 源连接器(4针) 1
PS电源接口 (8针) Y
支持存储驱动器界面 M.2, Serial ATA III
CPU风扇接口 Y
前面板音频接头 Y

扩展槽

PCI Express x1(Gen 2.x)插槽 2
PCI Express X16(Gen 3.x)插槽 4

联网

局域网控制器 Bigfoot Killer E2205
以太网接口类型 Gigabit Ethernet

图像

并行处理技术支持 3-Way CrossFireX, 3-Way SLI
分立图形支持 Y

背板输出端口

USB3.1(第 2 代3.1)Type-A 端口数量 2
PS/2连接埠数量 1
USB2.0端口的数量 2
S/PDIF输出接口 Y
数字音频光学输出 1
USB 3.0(第 1代3.1)Type-A 端口数量 6

重量和尺寸

深度 244 mm
宽度 305 mm

另外

主板晶片 Intel X99
以太网连接器 Y
以太网路(RJ-45)连接接口数量 1
Intel X99, Socket 2011-3, 8 x RDIMM DDR4, PCI-E, SATA III, USB 3.1, USB 3.0, USB 2.0, Gigabit LAN, PS/2, ATX - Supports New Intel® Core™ i7 processors Extreme Edition in LGA 2011-3 socket;
- Supports Quad Channel DDR4-3333(OC) Memory;
- USB 3.1: Delivering speeds up to 10Gb/s, USB 3.1 offers performance twice as fast as a regular USB 3.0 connection;
- Turbo M.2: delivering next generation M.2 Gen3 x4 performance with transfer speeds up to 32 Gb/s;
- SATA Express + USB 3.1 + SATA 6Gb/s;
- Multi-GPU: Quad NVIDIA SLI & AMD CrossFire Support;
- OC Engine: Reach higher overclocking results with more flexible BCLK adjustments at 100/125/167MHz;
- Audio Boost 2: Reward Your Ears with True Quality;
- Killer Ethernet: Kill Your Lag;
- USB Audio Power: Super Stable 5V Power & Better Signal Transmission over USB;
- XSplit Gamecaster: Show off you skills to the world with a six month premium license for this popular streaming software;
- Guard-Pro: Improved Protection and Power Efficiency;
- OC Genie 4: Overclock in 1 Second;
- Gaming App: Boost your framerate;
- Click BIOS 4: Easily Fine-tune Your System;
- Sound Blaster Cinema 2: Benefit from Creative software to get a more realistic surround sound experience;
- Gaming Device Port: Optimized with Triple Gold-plating for High Polling Rate Gaming Devices.

Let the games begin
MSI® GAMING motherboards are designed to provide gamers with best-in-class features and technology. Backed by the imposing looks of MSI's Dragon, each motherboard is an engineering masterpiece tailored to gaming perfection.

The best gaming weapons at hand

- Amazing sound with Audio Boost 2, powered by Creative Sound Blaster Cinema 2;
- USB Audio Power;
- The highest frag and the lowest lag with Killer™ E2200 Game Networking;
- Push your SSD to the limit with Turbo M.2 & SATA-Express;
- Show off your gaming skills to the world with XSplit Gamecaster;
- SteamOS ready out of the box;
- Military Class 4 components;
- Super stable with Guard-Pro;
- Specialized production lines just for GAMING motherboards;
- OC Genie 4;
- Gaming Device Port;
- Boost your FPS with the MSI GAMING App;
- Click BIOS 4 (click here to visit our dedicated BIOS page);
- Optimized for multiple graphics cards (SLI & CrossFire certified);
- Take control with Command Center & Live Update 6;
- OC Essentials.

MSI USB 3.1 2X FASTER
USB 3.1 allows for speeds up to 10 Gbps, doubling the speed compared to USB 3.0 and 20x faster than legacy USB 2.0. USB 3.1 is even faster than SATAIII! Transferring your favorite games, music and movies over USB has never been faster.

Feature
- 2x faster than USB 3.0;
- 20X faster than USB 2.0;
- Up to 10Gbps data transfer bandwidth;
- Boost transfer rate between your PC and external storage devices.

Want to show off your skills or just make a fun GAMING video for your friends?

XSplit Gamecaster & Broadcaster V2 lets you easily record your gaming moments and broadcast your live gameplay sessions to Twitch, YouTube, UStream and more.

It's simple, easy to use and ideal for sharing your gameplay with friends, family or the world - Or for capturing those perfect gaming moments, just for the heck of it.

So what are you waiting for? Join the revolution and start streaming and recording with XSplit Gamecaster today.

OC Engine
Run into unstable situations when pushing your CPU to the limit? This occurs because the internal clocks are linked through the 100 MHz BCLK strap. Thanks to a integrated Clock Generator, MSI motherboards support more flexible BCLK adjustments, from 100 / 125 / 167 MHz straps.

Using these straps prevents system crashing while overclocking on the edge and opens doors to achieve the absolute maximum. The MSI X99 motherboards all come with the next generation Clock Generator offering even lower jitter and power consumption resulting in even higher stability under extreme conditions.

DDR4 more speed, more bandwidth, less power
MSI engineers made sure you can enjoy high speed DDR4 compatibility. DDR4 brings higher memory speeds at even lower power usage as low as 1.2v.

DDR4 offers higher volume sticks, this means larger memory configurations are possible up to 128GB.

Reward your ears with true quality
Get ready for ear-drum shattering sound, with MSI Audio Boost 2! With Audio Boost 2 we're delivering the highest audio quality with the use of Creative Sound Blaster Cinema 2 so you can enjoy crystal clear sound and music through 8-channel HD Audio.

Isolated Audio PCB
With traditional onboard audio the signal is distorted by electromagnetic signals from the rest of the PCB. Audio Boost 2 acts like a dedicated soundcard by physically isolating the audio circuitry which is separated by a red LED path. Less interference gives you a more clear audio signal.

Direct Audio Power
Enjoy a heavy caliber audio experience with Direct Audio Power. A dedicated power input to Audio Boost 2 allows for a more powerful and stable power delivery, resulting in a more explosive and pure sound experience.


Creative Sound Blaster Cinema 2
Thanks to Creative Sound Blaster Cinema 2, you're getting amazing surround sound with just stereo headphones or speakers.
Creative Sound Blaster Cinema 2 enables you to clearly hear specific sounds in gaming environments. Hear your enemies perfectly, make your ears a decisive tool to finish on top.

EMI Shielding
To shield the audio core from EMI (Electromagnetic Interference) caused by other add-in cards the audio chip is protected by a high-grade EMI cover with backlight illumination.

Dedicated Headhpone Amplifier
Prepare for an eargasm. The built-in dedicated headphone amplifier rewards your high quality headphone with the most amazing studio level sound quality up to 600Ω delivered from your gaming PC.

Tired of having to connect your headset in difficult to reach places? MSI GAMING motherboards are designed to be easy to use, featuring front & rear audio outputs fueled by Audio Boost 2.

High Quality Audio Capacitors
With the use of professional Nichicon Japanese capacitors, specially designed for audio purposes, MSI GAMING motherboards provide the highest possible audio signal filtering. Delivering high fidelity crystal clear sound with exceptional acoustics and realism.

- Acoustic series;
- Lower Tolerance;
- Lower Dielectric Absorption;
- Lower ESR;
- Lower Leakage Current;
- Higher Stability.

Golden Audio Connectors
With golden audio connectors you get the best possible signal output with less chance of distortion.

- Up to 600Ω crystal clear sound with exceptional acoustics;
- Dedicated amplified output (red) optimized for studio-grade headgear;
- Superb signal conductivity and will not wear over time.

USB Audio Power
When connecting multiple USB devices, most motherboards will be unable to deliver a strong 5V power signal to all USB ports. This is highly noticeable with high-quality external USB DACs where sound quality degrades as the motherboard is unable to deliver a perfect USB signal.

Only MSI USB Audio Power continuously delivers a stable 5V to the USB ports on motherboards, making sure you can continue to enjoy the crystal clear audio standard you expect.

Benefits
- Enhances USB Audio Quality;
- Stable 5V Power & Better Signal Transmission over USB.

Killer™ E2200 Game Networking
Kill your lag!
The Killer™ E2200 Intelligent Networking Platform is built for maximum networking performance for online games and high-quality streaming media. Featuring Advanced Stream Detect™, Killer E2200 automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge. With this exclusive, automatic traffic prioritization, games and real-time chat get priority over low-level system chatter, giving you the lowest latency for game data on the most controllable network hardware available.

Fast storage with SATA Express
SATA Express introduces a new solution in high speed storage through PCI-Express, providing more bandwidth for the latest generation SSDs up to 10 Gb/s.

Push your SSD even harder with Turbo M.2
Delivering speeds up to 32Gb/s using Gen3 x4, Turbo M.2 is more than 5 times faster than a regular SATA III connection! Enjoy a blazing fast system boot up and insanely fast loading of applications and games with MSI motherboards.

Next generation M.2
Turbo M.2 is the successor to M.2 10 Gb/s, offering 3 times more performance up to 32 Gb/s using Gen3 x4. M.2 is packed in a small form factor and is compatible with 3 different sizes to fit most storage solutions. All latest generation Intel® based MSI motherboards feature Turbo M.2 storage.

SteamOS support out of the box
MSI is committed to PC Gaming and that is why MSI GAMING motherboards support SteamOS by default. Because of this, MSI works close with numerous tier #1 system integrators that released their popular SteamBOX PCs.

Military Class 4 components
Military Class 4 is the next step in high quality components. The Hi-c CAP, Super Ferrite Choke and Dark CAP will make sure that your PC runs more stable under extreme gaming conditions.

Hi-c CAP
A Hi-c CAP is a very small, but super-efficient capacitor. Besides ensuring enough spacing around a CPU socket to install large coolers, it also allows for 93% energy efficiency. Thanks to Hi-c CAP`s MSI mainboards are the most energy efficient in the market.

Super Ferrite Choke
Super Ferrite Choke uses a Ferrite core that is Super-Permeable. This allows the Super Ferrite Choke to run at a 35 degree Celsius lower temperature, have a 30% higher current capacity, a 20% improvement in power efficiency and better overclocking power stability.

Dark CAP
With their aluminum core design, Dark CAP`s has been a staple in high-end design mainboard designs and provides lower Equivalent Series Resistance (ESR) as well as its over-10-year lifespan.

Circuit Protection
Carefully selected materials, multiple PCB layers and shielding result in the best circuit protection for our GAMING motherboards.

ECO Power
With MSI ECO Center you can physically cut the power to unused chips to save up to 19% power usage.

Humidity Protection
10% Reduction in moisture absorption helps prevent "Conductive Anodic Filament". Untreated PCB's can have 10x higher failure rate.

High Temperature Protection
All key components used in MSI motherboards have all passed military testing ensuring stable operation in the harshest environments.

ESD Protection
Each and every I/O port is protected against the hazards of Electro Static Discharge.

EMI Protection
All MSI motherboards comply with stringent American FCC regulations and reduce the impact of Electromagnetic Interference.

Focus on quality

We put extra effort in increasing customer satisfaction. Our RMA rate has drastically decreased in the last few years.
To achieve the highest quality the MSI GAMING motherboards are developed by our most senior engineers on the most advanced production lines.

We are continuously improving our customer services, so in case you might run into a problem you can be assured we offer a fast response to your questions and hand you in depth information on the subject.

Gaming Device Port
MSI Gaming Device Port is optimized to deliver the best connectivity for high end gaming mice to fully utilize it's speed. This results in a much faster and smoother mouse response in games.

Gaming benefits
- More responsive;
- Smoother gameplay;
- Faster reactions.

Technical benefits
- 3x more gold than regular connectors;
- 10x longer lifetime when plugging/un-plugging;
- Prevents oxidation.

OC Genie 4
OC Genie is the world's first built-in hardware overclocking technology on motherboards. With this one-second overclocking option we're giving you even more performance. Just hit the button and your PC gets another adrenalin shot. Delivering up to 20% of free extra performance for the CPU, memory and iGPU.

BOOST YOUR FRAME RATE
Outperform your competition with the MSI GAMING APP which allows simultaneous control of both your Motherboard and Graphics Card's overclocking.

Simply select your preferred mode with the click of a button:
- Silent;
- Gaming;
- OC.

This allows you to tune the system to your pleasure without any technical knowledge of overclocking. Scenamax quickly adjusts color temperature and contrast to the viewing scenario.

Click BIOS 4
The MSI Click BIOS 4 is the latest UEFI BIOS with optimizations for Windows 8. Not only that it also reacts faster, runs smoother and has better mouse support. And this all comes with many cool features. Click on the button on the right to visit our dedicated BIOS page and learn more.

Optimized for multiple graphics cards

Quad SLI / Crossfire
The X99S GAMING 7 motherboard supports Quad SLI / CrossFire. Optimal PCI-Express slot placement allows for better fitting and airflow.

That way, you can enjoy the best graphics at the highest framerate jumping off from your screen when running a NVIDIA® SLI™ or AMD CrossFire™ setup.

Software

Live Update 6
MSI Live Update is renewed! Our popular software automatically downloads and installs the latest drivers, BIOS and software. Rest assured while your system is always configured using the latest software so you get the maximum performance and stability.

Command Center
MSI's Command Center software is a very powerful tool to push your motherboard to the max. With a very intuitive touch ready interface, Command Center allows users to tune settings to increase system stability, maximize overclocking performance and adjust cooling features.

Unlimited RAMDisk
MSI Command Center integrates an unlimited RAMdisk. With a RAMdisk you can create a virtual drive from your system memory enabling speeds 20x faster than a modern SSD.

- Speed up system performance;
- Load complete game images;
- Speed up games, apps and browser.

Super charger
With MSI Super Charger you can simply deliver more power than regular USB chargers to your smartphone, tablet, USB game controller or portable console.
This allows you to quickly charge these devices for use when you're not gaming on your PC, eliminating the need for wall power sockets.

USB Redrivers
USB 3.0 signal integrity suffers with longer cable length. The special USB 3.0 Redrivers on GAMING motherboards, connected to the internal USB 3.0 ports, enable you to use longer USB 3.0 cables, especially in larger chassis.

Smart Fan Control
Smart Fan Control gives you complete control of all your fans on the motherboard, convenient for gamers and overclockers;

- Users can real-time monitor the status of the fans;
- Set profiles;
- Record fan speed, voltage and temperate status into a log file.

Dragon Heatsink
With an awesome product comes an inspiring heatsink! Styled after the iconic MSI GAMING Dragon. The heatsink is oversized to provide the best thermal transfer and heat dissipation to enable your PC to just game 24 hours per day.

OC Essentials
A small set of tools that are essential to get the best performance out of your motherboard.

- Increase stability;
- Assist in trouble shooting;
- Allow you to keep your complete system in check;
- Allow for simple management.

This way you can keep your mind on gaming and be confident that you have the tools to maximize your performance.

Connectivity
Be sure to take full advantage of all the GAMING weapons by connecting your devices to the optimized ports.

Audio Boost 2
- 30µg Gold plated Audio Connectors;
- Amplified Audio.

USB Audio Power
- Optimized stable 5V USB ports;
- Best sound quality for external DACs.

Gaming Device Port
Optimized for high-rate gaming keyboards and mice;
Triple gold plating for extended lifetime.
