内存参数
| 內存插槽数量 |
8 |
| 最大内部存储 |
128 GB |
| 内存插槽类型 |
DIMM |
| 内存通道支持 |
Quad |
| 错误更正代码 |
Y |
| 支持的内存类型 |
DDR4-SDRAM |
内置输入/输出系统
| USB 2.0接口 |
1 |
| 前面板音频接头 |
Y |
| 机箱防盗接口 |
Y |
| CPU风扇接口 |
Y |
| PS电源接口 （8针） |
Y |
| SATA III连接器数量 |
10 |
| USB 3.0（第 1代3.1）连接器 |
1 |
| TPM（可信任安全平台模组）接口 |
Y |
| ATX电源接头 |
Y |
背板输出端口
| USB 3.0（第 1代3.1）Type-A 端口数量 |
4 |
| S/PDIF输出接口 |
Y |
| 麦克风/音频输入插孔 |
Y |
| 耳机输出端口 |
3 |
| PS/2连接埠数量 |
1 |
| USB3.1（第 2 代3.1）Type-A 端口数量 |
2 |
性能
| 音频系统 |
Realtek ALC892 |
| 主板芯片组系列 |
Intel |
| 组件应用 |
PC |
基本輸出輸入系統/BIOS
| BIOS开关按钮 |
Y |
| 清除CMOS跳线 |
Y |
| 基本输入输出系统类型 |
UEFI |
扩展槽
| PCI Express X16（Gen 3.x）插槽 |
3 |
| PCI Express x1（Gen 2.x）插槽 |
2 |
另外
| 以太网路(RJ-45)连接接口数量 |
1 |
| 以太网连接器 |
Y |
| 主板晶片 |
Intel X99 |

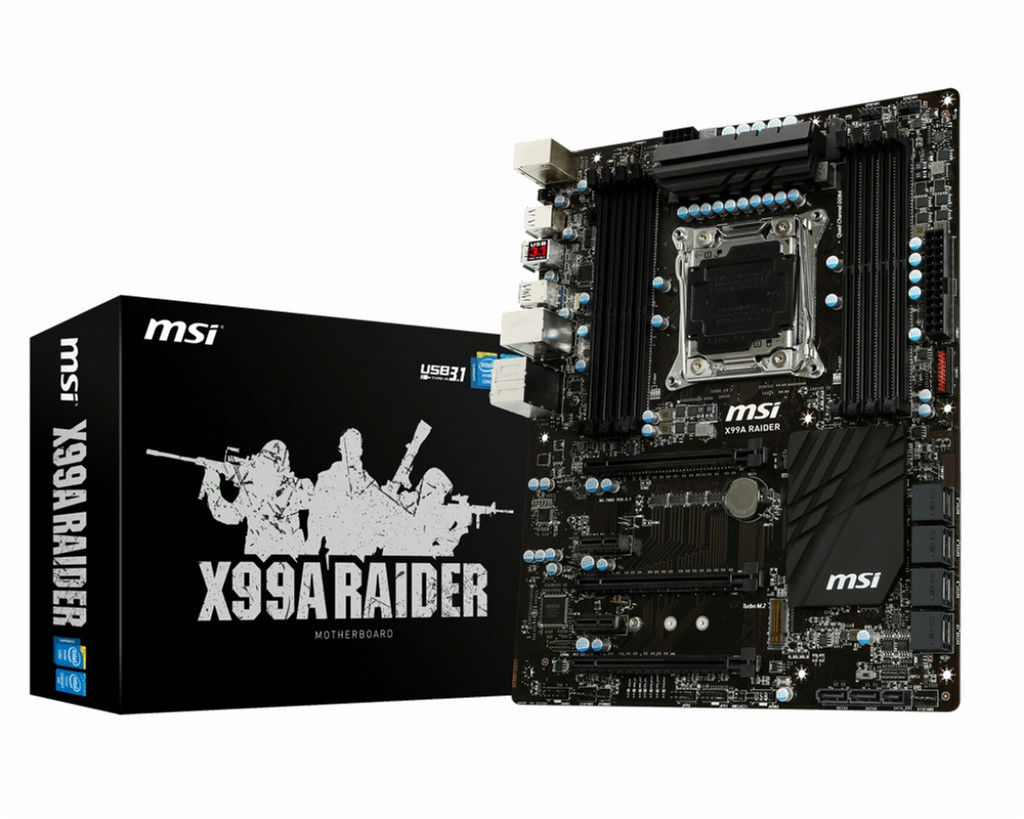

Intel X99 Express, LGA2011-3, DDR4 x 8, PCIe 3.0 x16 x 3, PS/2, USB 2.0 x 4, USB 3.0 x 4, USB 3.1 x 2, LAN, ATX
<b>Optimized for multiple graphics cards</b>
With a large number of PCI-Express 3.0 x16 slots for every MSI motherboard, you get to choose optimal placement for your graphics cards for better fitting and airflow up to Quad SLI/CF. That way, you can enjoy the best graphics at the highest framerate jumping off from your screen when running a NVIDIA® SLI™ or AMD CrossFire™ setup.
<b>Meet the new speed king</b>
USB 3.1 allows for speeds up to 10 Gbps, doubling the speed compared to USB 3.0 and 20x faster than legacy USB 2.0. USB 3.1 is even faster than SATAIII! Transferring your favorite games, music and movies over USB has never been faster.
Feature
- 20X faster than USB 2.0
- 2x faster than USB 3.0
- Up to 10Gbps data transfer bandwidth
- Boost transfer rate between your PC and external storage devices
<b>Push your SSD to the limit</b>
Enjoy a blazing fast system boot up and insanely fast loading of applications and games with selected MSI motherboards. We offer the next generation of high speed storage support through M.2 and SATA Express. M.2 and SATA Express transfer data through a PCI Express 2.0 x2 interface up to 10 Gb/s, making it 67% faster than SATA 3.0 solutions.
<b>Faster storage solutions with M.2</b>
M.2 is the successor to mSATA, offering a 67% performance increase up to 10 Gb/s. M.2 is packed in a small form factor and is compatible with 3 different sizes to fit most storage solutions.
<b>Flexible fast storage with SATA Express</b>
SATA Express introduces a new solution in high speed storage through PCI Express, providing more bandwidth for the latest generation SSDs. We offer flexible solutions with a M.2 to SATA Express converter for more convenience
<b>INTEL® GIGABIT LAN</b>
Always connected with Intel® Gigabit LAN networking. The latest MSI 9 series motherboards come equipped with the high quality network solution from Intel®. Optimized for multimedia and gaming use to deliver a stable and fast network connection.
<b>Military Class 4</b>
Military Class 4 is the next step in high quality components. The Dark Choke and Solid CAP will make sure that your PC runs more stable under extreme gaming conditions.
<b>SUPER FERRITE CHOKES</b>
uper Ferrite Chokes use a Ferrite core that is Super-Permeable. This allows the Super Ferrite Chokes to run at a 35 degree Celsius lower temperature, have a 30% higher current capacity, a 20% improvement in power efficiency and better overclocking power stability.
<b>DARK CHOKE</b>
Dark Choke uses the special core design and allows the Dark Choke to run at a lower temperature with higher capacity and better power efficiency and stability.
<b>OC Genie 4</b>
With the one-second overclocking option OC Genie we're giving you even more performance. Just hit the button and your PC gets another adrenalin shot straight away. Give your system an awesome performance boost with ease.
<b>CLICK BIOS 4</b>
The MSI Click BIOS 4 is the latest UEFI BIOS with optimizations for Windows 8. Not only that it also reacts faster, runs smoother and has better mouse support. And this all comes with many cool features. Click on the button on the right to visit our dedicated BIOS page and learn more.
