性能
| 主板元件 |
ATX |
| 可支持的Linux操作系统 |
Y |
| 主板芯片组系列 |
Intel |
| 组件应用 |
PC |
内存参数
| 可支持内存时钟速度 |
2133, 2400, 2600, 2800, 3000, 3200, 3600 MHz |
| 支持的内存类型 |
DDR4-SDRAM |
| 内存通道支持 |
Dual |
| 内存插槽类型 |
DIMM |
| 內存插槽数量 |
4 |
| 最大内部存储 |
64 GB |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
128 MB |
| 基本输入输出系统类型 |
UEFI AMI |
| 清除CMOS跳线 |
Y |
| ACPI的版本 |
5.0 |
内置输入/输出系统
| USB 2.0接口 |
2 |
| ATX电源接头 |
Y |
| TPM（可信任安全平台模组）接口 |
Y |
| USB 3.0（第 1代3.1）连接器 |
2 |
| SATA III连接器数量 |
6 |
| CPU风扇接口 |
Y |
| 机箱防盗接口 |
Y |
| 机箱风扇接头数量 |
1 |
| 前面板音频接头 |
Y |
背板输出端口
| DVI-D接口数量 |
1 |
| USB3.1（第 2 代3.1）Type-A 端口数量 |
1 |
| USB3.1（第 2 代3.1）Type-C 端口数量 |
1 |
| PS/2连接埠数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
| HDMI端口数量 |
1 |
扩展槽
| PCI Express X16（Gen 3.x）插槽 |
3 |
| PCI Express x1（Gen 3.x）插槽 |
4 |
另外
| 主板晶片 |
Intel Z170 |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

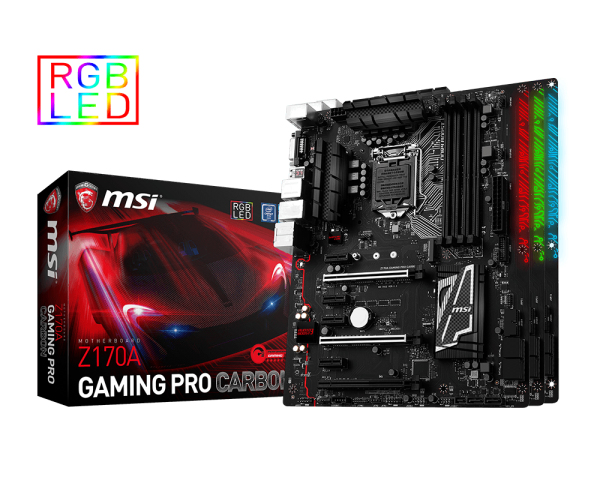

Socket LGA1151, Intel Z170 Chipset, 4 x DDR4 up to 64GB, 1 x Gigabit Ethernet, 6 x SATA, 1x M.2, 3 x PCI-Express x16, 4 x PCI-Express x1
BLACK WITH CARBON SKIN
Carbon-fiber-reinforced polymer is used extensively the world of car racing, where each second counts. Besides its strength and futuristic look, carbon-fiber is also very light for ultimate performance to pursue track records. MSI GAMING motherboards are dedicated to ultimate performance and the best gaming experience. The CARBON motherboards black scheme combines flashiness with sophistication that is sure to make your pc stand out in looks and performance.
Mystic Light
Customize and set up your own color scheme with Mystic Light. Select any of the colors from the palette to match your systems' design. Just change it to another one with MSI GAMING APP, and make your PC look & feel brand new !
GAME IN STYLE
Each game demands different skills, each gamer selects, customizes and levels their own gaming character. Why stop there? MSI Performance GAMING motherboards allow you to fully customize & personalize your gaming PC to any color you want while delivering top performance for a great gaming experience.
UNMATCHED MEMORY PERFORMANCE AND STABILITY
With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability.
An added XMP LED highlights an active Extreme Memory Profile for the best memory speed and stability setting.
DOMINATE THE GAME WITH LOWEST LATENCY
Get ready to crush your enemies on the battlefield with MSI® GAMING LAN, featuring carefully selected components to ensure the best online gaming experience without lag.
DEDICATED GAMING LAN WITH INTEL
Experience a more fluid game with Intel® i219 LAN. Intel® i219 LAN is designed to deliver high performance when gaming, delivering more throughput than other solutions.
Intel® i219 LAN is optimized for championship level online and LAN eSports by reducing CPU overhead and offering exceptionally high TCP and UDP throughput. This way, your CPU can be used more effectively and you can enjoy more FPS when gaming.
GAMING OPTIMIZED BANDWITH MANAGEMENT
Dedicated to giving you the best online gaming experience with optimized traffic prioritization and low latency, MSI GAMING LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games.
LAN PROTECT
Featuring 15KV anti-surge protection to shield your network from lightning strikes and static electricity, LAN Protect is a LAN connector designed to give you the best networking experience. It's highlighted with a red LED inside the RJ45 connector to show its functionality.
REWARD YOUR EARS WITH STUDIO GRADE SOUND QUALITY
With Audio Boost 3, powered by Nahimic Sound Technology, we're delivering the highest sound quality through the use of premium quality audio components. That way, you can enjoy breathtaking, crystal clear sound and music through 8-channel HD Audio or high impendence headphones and truly dominate the game.
