性能
| 主板元件 |
ATX |
| 主板芯片组系列 |
Intel |
| 英特尔® 极限内存认证标准 （Intel® XMP) |
Y |
| 组件应用 |
PC |
内存参数
| 可支持内存时钟速度 |
2133, 2400, 2600, 2800, 3000, 3200 MHz |
| 错误更正代码 |
Y |
| 无缓冲内存 |
Y |
| 支持的内存类型 |
DDR4-SDRAM |
| 内存通道支持 |
Dual |
| 内存插槽类型 |
DIMM |
| 最大内部存储 |
64 GB |
基本輸出輸入系統/BIOS
| 基本输入输出系统类型 |
UEFI |
| 清除CMOS跳线 |
Y |
内置输入/输出系统
| USB 2.0接口 |
2 |
| ATX电源接头 |
Y |
| TPM（可信任安全平台模组）接口 |
Y |
| SATA III连接器数量 |
6 |
| PS电源接口 （8针） |
Y |
| CPU风扇接口 |
Y |
| 机箱防盗接口 |
Y |
| 前面板音频接头 |
Y |
| 串行端口接头连接器 |
1 |
| M.2 (M) 插槽数量 |
1 |
背板输出端口
| DVI-D接口数量 |
1 |
| USB3.1（第 2 代3.1）Type-A 端口数量 |
6 |
| PS/2连接埠数量 |
2 |
| 耳机输出端口 |
1 |
| S/PDIF输出接口 |
Y |
| 麦克风/音频输入插孔 |
Y |
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
扩展槽
| PCI 插槽 |
2 |
| PCI Express X16（Gen 3.x）插槽 |
2 |
| PCI Express x1（Gen 3.x）插槽 |
3 |
另外
| 主板晶片 |
Intel Z170 |
| 以太网路(RJ-45)连接接口数量 |
1 |

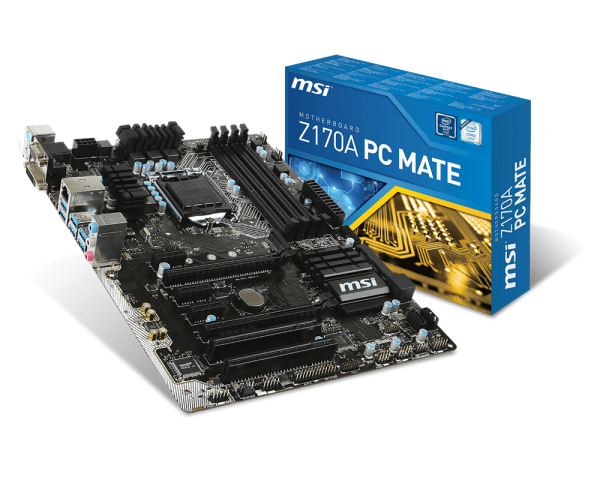

6th Gen Intel Core i3/i5/i7, LGA1151, Intel Z170 Chipset, DDR4-3200, ATX
UNMATCHED MEMORY PERFORMANCE AND STABILITY
With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability.
FAST STORAGE WITH SATA EXPRESS
SATA Express offers a solution in high speed storage through PCI-Express, providing more bandwidth for the latest generation SSDs up to 16 Gb/s.
TURBO M.2
Delivering speeds up to 32Gb/s using Gen3 x4, Turbo M.2 is over 5 times faster than a regular SATA III connection! Enjoy a blazing fast system boot up and insanely fast loading of applications and games with MSI motherboards.
TURBO U.2 HOST CARD (OPTIONAL)
The U.2 Host Card delivers performance up to 32 Gb/s and allows support for next gen 2.5-inch SSDs using the U.2 connector. A redriver chip is added to increase data transfer speed.
THE ALL NEW, AWARD-WINNING CLICK BIOS 5
Explore the greatly improved, award-winning CLICK BIOS 5 and use it to tune your system to maximum performance. MSI CLICK BIOS 5 is the next generation UEFI BIOS with optimizations for Windows 10.
Control your system in two modes: EZ mode, for the most used settings and functions. Advanced mode for more detailed settings and fine-tuning options to boost your system’s performance.
- Variety of options to boost your game performance
- Next gen UEFI BIOS with award winning design
- High-resolution multi language scalable font
- Easy to use
- Advanced overclocking
