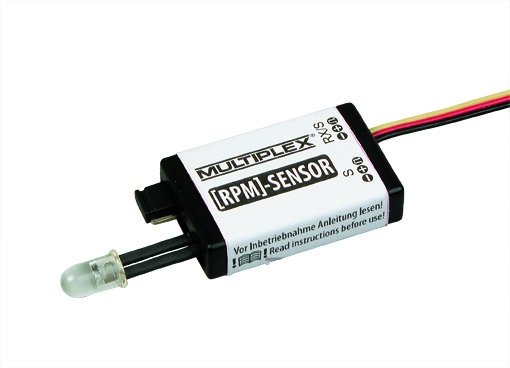

MULTIPLEX RPM-Sensor

RPM-Sensor (optic) Optical rev-count sensor for determining the rotational speed of revolving components such as propellers, wheels, shafts… Typical application: optimising the propeller size to match the electric motor
Contents: Rev-count sensor with optical pick-up

The following can be activated and altered using the MULTImate, or using Sensor Data Manager on the PC:
Address Address (screen line on transmitter) at which the rotational speed is displayed
Top alarm Upper rev count value, above which an alarm is triggered at the transmitter
Bottom alarm Lower rev count value, below which an alarm is triggered at the transmitter
Option Additional generation of minimum, average or maximum rotational speed
Address option Address (screen line on transmitter) at which the optional value is displayed
Blade count Number of propeller blades
