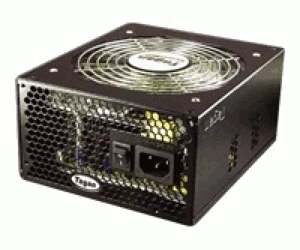

Tagan Easycon XL 700 W Power Supply
Features
• Modular 700 Watt powersupply.
• Compatible with Intel EPS12V Ver.2.9 and EPS/ATX downward versions with four independent +12V rails.
• Independent four +12V rails provide individual electricity to different devices and avoid heavy-loading devices share power in the same time.
• Universal motherboard support due to 20+4 pin main power as well as 4-pin & 8-pin +12V power connectors for 20, 20+4, 24+4, and 24+8 configurations.
• ≥80% electricity efficiency average saves money and reduces losing power become heat.
• Extraordinary round TMI connector and socket with different color (black and green) avoids wrong connection and pin scratch.
• User can use TMI modular cables on demand to optimize air flow for PC cooling.
• Two 6-pin PCI Express connectors support NVIDIA SLI technologies, and ATI Crossfire graphic cards.
• PCI-Express 6PIN cables with REMI technology reduce EMI ripples and noises to save device lifetime and enhance display performance.
• Support high-end motherboard with VGA 4pin socket for graphic card electricity.
• 13.5cm upper silent fan with nanometer ceramic material can release heat and be noiseless.
• Total 14+1* IDE and SATA hard disks are available for top users. (*VGA 4Pin)
• Rear window with honeycomb structure is the strongest framework for case and biggest air-flow space.
• Thermal control fans are adjustable automatically by temperature inside of the power supply. Fan speed up when temperature rises.
• Super-big heat sink inside the power release heat in optimum efficiency.
• Black mesh and copper-shielding cables help user to optimize airflow for thermal release.
• Internal OVP (Over Voltage Protection) and OCP (Over Current Protection) function avoids sudden power surge damage peripherals.
• Universal AC input range for all countries: 110~240VAC with active PFC for better electricity performance.
• Unique ground wire with golden pin can release static electricity from power supply and avoid damage.
• Drawer case package is the originated and unique design by Tagan and could be used after power installed.
• Including cable bands for cable management.
