性能
| 类型 |
Fan |
| 最大气流 |
43.8 cfm |
| 最小气流 |
21.3 cfm |
| 气流 |
74.4 m³/h |
| 最低空气压力 |
0.39 mmH2O |
| 最大空气压力 |
1.1 mmH2O |
| 噪音水平（高速） |
15.2 dB |
| 转速（最小） |
300 RPM |
| 转速（最大） |
1000 RPM |
| 适用于 |
Computer case |
| 风扇数量 |
1 |
| 风扇直径 |
120 mm |
能量控制
| 额定电流 |
0.04 A |
| 电压 |
DC 3.5 - 12 V |

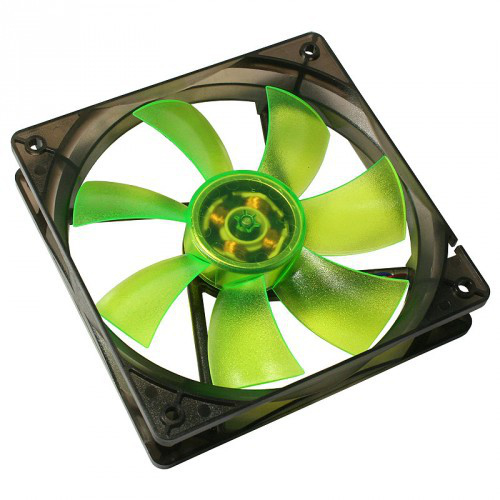

FX EVO 120 mm PWM, 300 - 1000 RPM, 21.3 - 43.8 CFM, 0.48 W, 4-Pin PWM
Nanoxia FX EVO series
Congratulations for purchasing this first-class high-end fan. High quality materials provide a remarkably quiet and powerful operation. The fans of the Nanoxia FX EVO series were manufactured based on the newest developments in science and technology. The fans offer a very wide, unique speed-range. Even at voltages below 4 volts the fan starts reliably. From starting rpm until maximum speed the speed increases very smoothly.
Nano Technology Bearing
The essential characteristic of the new Nanoxia FX EVO fan series is the Nano Technology Bearing. The special nanotechnology material allows the fabrication of solid bearings with minimal abrasion. Due to special surface structure, Nanoxia nanotechnology bearings do not need any grease or oil. It is insensitive to environmental influences such as water, dust or sand. Particles that are larger than a nanometer cannot penetrate into the bearing and damage it.
ECO Traction
The ECO traction allows a very smooth start and an effective conversion of electrical energy into kinetic energy. The result is an increase of efficiency of the Nanoxia fan motors. So the ECO Traction is also a small contribution to a better and more efficient "Green PC".
Makrolon® Frames and Rotors
Frames and rotors of the Nanoxia fans are made by the high-tech polycarbonate Makrolon® made by Bayer Material Science. The proven material allows the fabrication of very lightweight, unbreakable and extremely robust components.
Balanced Rotors
For a smooth and steady movement of a fan, it is essential that the rotor and the fan blades are as balanced as possible. Only when lateral movement is trimmed by weights, are long durability and low vibrations guaranteed. By using the latest computer technology, Nanoxia rotors are perfectly balanced and tested to a tolerance of less than 0.2 mm.
PWM technology (automatic speed adjustment)
The fan motor receives a special PWM signal from the motherboard. The fan electronically adjusts the engines power to the requirements accordingly. The PWM control of Nanoxia fans has a very linear control range, so that speed steps are very gentle and hardly perceptible.
Detachable Impeller
For optimum cleaning, Nanoxia fans have a special axis mount that allows a detaching of the fan blades (rotor) to clean it under running water.
Durability and warranty
Due to the Nanoxia Nanotechnology bearings and the especially high-quality fan motors, we offer our fans a manufacturer's warranty of 10 years. The lifetime of the bearing amounts more than 150,000 hours.
