显示器
| 显示器尺寸 |
24 " |
| 可视尺寸，横向 |
518 mm |
| 可视尺寸，纵向 |
324 mm |
| 可视尺寸，对角线 |
611 mm |
| 长宽比 |
16:10 |
| 响应时间 |
14 ms |
| 原机长宽比 |
16:10 |
| 对比度 |
1000:1 |
| 视角，水平 |
178 ° |
| 视角，垂直 |
178 ° |
| 像素 |
0.27 x 0.27 mm |
| 显示器亮度 |
300 cd/m² |
| 显示技术 |
IPS |
| 3D兼容性 |
N |
| 显示器 |
LCD |
端口 & 界面
| 复合视频 |
1 |
| DVI-D接口数量 |
1 |
| USB集线器版 |
USB 2.0 |
| USB Type-A 下游端口数量 |
1 |
| 分量视频(YPbPr/YCbCr)输入 |
1 |
| VGA（D-SUB）端口数量 |
1 |
人体工程学
| VESA 安装支架 |
Y |
| VESA 安装系统兼容界面 |
100 x 100 mm |
环境条件
| 运行湿度范围(H-H) |
20 - 85% |
| 储存温度范围 (T-T) |
-20 - 50 °C |
| 储存相对湿度范围（H - H） |
5 - 85% |
重量和尺寸
| 深度 |
99 mm |
| 重量 |
6900 g |
| 宽度 |
604 mm |
| 高度 |
404 mm |
另外
| 产品色彩 |
White |
| 超级视频输入 |
1 |
| RS-232接口 |
1 |
| 以太网连接器 |
N |
| 能源效率等级 |
Unspecified |
| 运行温度范围（T - T） |
0 - 35 °C |

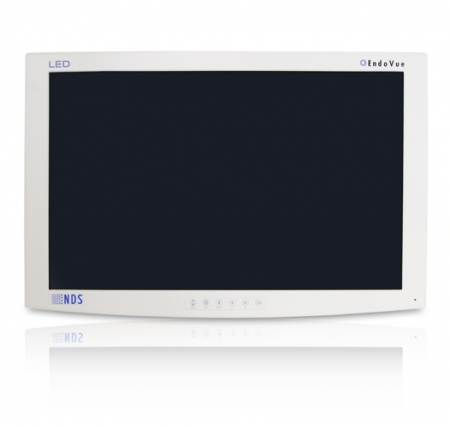

EndoVue - 24'', 1920 x 1200, 16:10, 300 cd/m2, 14 ms, Rest of World (ROW)
Fully compliant for medical use in surgery, the 24” EndoVue® HD LED is a high-quality, low-cost surgical display solution featuring an LED backlight. It is an affordable alternative to a full-featured surgical display but can still accommodate high- definition signals from a variety of medical imaging sources, including endoscopes, ultrasound, PACS, and vital signs. It also features a fanless cooling design to minimize the risk of spreading airborne contaminates within the sterile field. EndoVue® displays can be packaged with the NDSsi ConductORTM and ZeroWire® products to provide a cost-effective video integration solution that is simple to install.
- Industry Leading LED Backlight Technology
- Large, 24” Diagonal Size
- HD Imaging Compatible
- High Resolution (1920 x 1200)
- Programmable User and Modality Preferences
- Fanless Cooling, Sealed Front Enclosure (IP 32)
- Safe Low Voltage 24 VDC Remote Power Supply
- Compact and Lightweight Design
- Flexible Standard VESA Mounting
