其他功能
| 可视尺寸，横向 |
1252.8 mm |
| 可视尺寸，纵向 |
704.7 mm |
| 可视尺寸，对角线 |
145 mm |
| 线缆锁插槽 |
N |
| 内置摄像头 |
N |
| 遵守工业标准 |
DDC2Bi |
端口 & 界面
| 复合视频 |
1 |
| DVI-D接口数量 |
1 |
| 复合视频输出 |
1 |
| 分量视频(YPbPr/YCbCr)输入 |
1 |
另外
| 水平扫描范围 |
31.5 - 91.1 kHz |
| 超级视频输入 |
1 |
144.78 cm (57 ") LCD 1920 x 1080 px, 0.6525 x 0.6525 mm, 450 cd/m2, 1000:1, 16 ms, D-Sub, SVI-D, 350 W, 66000 g, Black

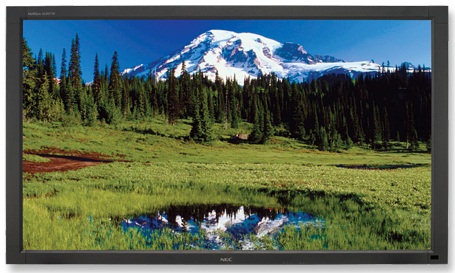

57" Large-Screen Display
Tackle your biggest display solution projects with the 57” NEC MultiSync LCD5710, a large-screen LCD display ideal for digital signage applications. This model boasts the Digital Signage Technology Suite (DSTS), nearly 30 features that enhance display management, improve screen performance and lower total cost of ownership.
- Out-of-the-box calibration to the DICOM grayscale display function for luminance.
- ColorComp™ digital uniformity correction reduces screen uniformity errors and compensates for differences in color/grayscale and luminance across the entire screen.
- GammaComp™ MD software ensures consistent image quality, while providing a simple interface for conformance to the DICOM standard and an easy-to-use QA environment for medical imaging.
- 12-bit RGB lookup tables (LUTs) for gamma provide for more finely detailed, high-definition rendering of color images and crisper display of even the most delicate shadings and color differences.
- Auto Luminance control with X-Light™ Pro backlight/sensor design allows for consistent brightness and color.
- 4-way ergonomic design (height-adjust, pivot, tilt & swivel) enhances your viewing comfort.
- Wide-format screen increases productivity by expanding your working area to view multiple application windows.
- Auto Black Level Adjustment enables a greater ranges of black levels for better image performance.
Advanced Cooling System
Prevents the likeliness of image retention and improves color uniformity.
CableComp™
Equalizes the video signal to eliminate color halos on long cable runs.
Digital Signage Technology Suite
Boasts more than 20 advanced features to enhance display management, improve screen performance and lower total cost of ownership.
Round-The-Clock Scheduler
Allows for advanced scheduling of monitor powering up/down, increasing panel lifetime, reducing power consumption and saving the time and expense of finding and purchasing a third-party scheduling solution.
TileMatrix™
Allows users to customize a video wall configuration using advanced On Screen Display controls.
NaViSet™
Offers an intuitive graphical interface, allowing for easy adjustment of display settings via mouse and keyboard. NaViSet Administrator provides all the advanced control to remotely located IT professionals.
TileComp™
Automatically eliminates geometrical distortions between displays by adjusting for the width of the monitor bezels, working in tandem with TileMatrix on NEC displays (some data on the screen will be lost in the area of the bezels).
PIP/POP/Side-by-Side
Picture-in-picture (PIP) allows for a second frame within the screen area. Picture-on-picture (POP) surrounds the standard frame with multiple frames. Side-by-side places two sources adjacent to one another.
