电视调谐器
模拟信号系统 |
NTSC |
调谐器类型 |
Analog & Digital |
数字信号格式系统 |
ATSC |
显示器
显示器尺寸 |
55 " |
对比度 |
4000:1 |
视角,水平 |
178 ° |
视角,垂直 |
178 ° |
响应时间 |
6.5 ms |
LED背光类型 |
Edge-Lit LED |
HD 类型 |
Full HD |
屏幕形状 |
Flat screen |
显示器亮度 |
350 cd/m² |
高频运动速度 |
120 Hz |
3D兼容性 |
N |
长宽比 |
16:9 |
显示器分辨率 |
1920 x 1080 pixels |
音频
内置超低音音响 |
N |
扬声器数量 |
2 |
RMS的额定功率 |
20 W |
内置扬声器 |
Y |
环境条件
运行湿度范围(H-H) |
10 - 80% |
储存温度范围 (T-T) |
0 - 40 °C |
储存相对湿度范围(H - H) |
5 - 85% |
性能
集成读卡器 |
N |
双亲控制 |
Y |
包含DVD播放器/录音机 |
Not included |
支持的视频格式 |
JPG |
管理功能
睡眠定时器 |
Y |
智能模式 |
Dynamic, Energy saving, Theater |
重量和尺寸
宽度(含底座) |
1242.1 mm |
宽度 |
1242.1 mm |
高度 |
734.1 mm |
重量(含底座) |
23400 g |
深度 |
63.5 mm |
重量 |
20100 g |
深度(含底座) |
254 mm |
高度(含底座) |
789.9 mm |
内容包装
包含电缆 |
AC, VGA |
用户手册 |
Y |
手持式遥控器 |
Y |
台式电脑支架 |
Y |
配有电池 |
Y |
端口 & 界面
PC机(D型接口) |
Y |
DVI端口 |
N |
共通介面 |
N |
Plus通用接口(CI +) |
N |
耳机输出端口 |
1 |
VGA(D-SUB)端口数量 |
1 |
HDMI端口数量 |
3 |
USB2.0端口的数量 |
1 |
分量视频(YPbPr/YCbCr)输入 |
1 |
能量控制
功耗(一般操作) |
122 W |
功耗(待机) |
0.5 W |
人体工程学
VESA 安装支架 |
Y |
VESA 安装系统兼容界面 |
400 x 400 mm |
另外
产品色彩 |
Black |
RS-232接口 |
1 |
以太网连接器 |
N |
运行温度范围(T - T) |
0 - 40 °C |
能源效率等级 |
Unspecified |
139.7 cm (55 ") , 1920 x 1080, 4000:1, 350 cd/m2, 6.5 ms, NTSC/ATSC

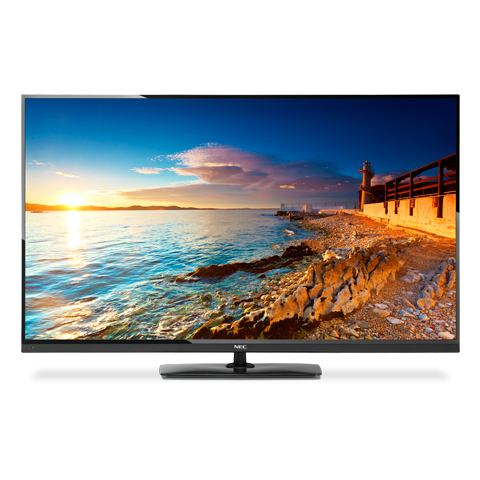

The 55” NEC E554, an LED edge-lit, commercial-grade display, is ideal for education, corporate and other digital signage applications. Compared to previous generation displays, this model’s edge-lit LED backlighting allows for reduced power consumption, a thinner depth, a smaller bezel and lighter weight. Full HD resolution delivers stunning image quality for a variety of content, and the E554’s integrated tuner and speakers allow users to enjoy high-definition broadcast capabilities. This display can be monitored remotely through the RS-232C networking feature, which also provides customers the ability to synchronize multiple displays, remotely power on/off and lock out external buttons to prevent unwanted changes in the display’s setting.
- LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth.
- Thinner bezel improves display's aesthetics.
- RS-232C allows users to lock out external buttons, synchronize multiple displays and remotely power on/off displays.
- USB media player allows users to view .jpg images.
- Full 1080p high-definition resolution provides stunning detail.
- Built-in NTSC/ATSC analog/digital tuner allows for high-definition broadcast capabilities.
- Built-in, low-profile 10W speakers enhance the experience with superior sound.
