显示器
| 数字垂直频率 |
50 - 85 Hz |
| 数字水平频率 |
31.5 - 91.1 kHz |
| HDCP |
Y |
端口 & 界面
| 复合视频 |
1 |
| DVI-D接口数量 |
1 |
| 复合视频输出 |
1 |
| 分量视频(YPbPr/YCbCr)输入 |
1 |
| VGA（D-SUB）端口数量 |
1 |

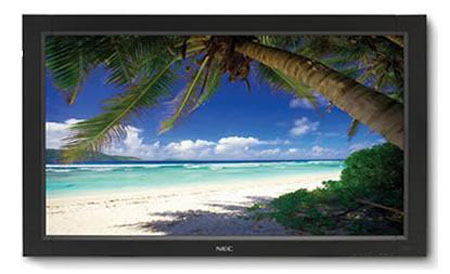

MultiSync LCD3215 32" inkl. ext PC Intel Atom 1,86 GHz , 1366 x 768, 500cd / m2, 800:1
Enhanced heat-resistant components are employed in the electrolytic rectifier and the power supply circuits. Stable continuous operation for a long time within the operational environmental temperature range can be achieved.
The cooling fan turns according to the operating conditions of the panel and the location where the panel is installed, reducing the load on the panel under continuous use for a long time.
When operating multiple monitors, the function prevents the overcurrent that may occur when the power is turned on by shifting the timing for turning the power on to the respective monitors with the breaker on. (You can select a value among the preset values within a range from 0 to 50 seconds.)
The Scheduling function automatically manages the power ON/OFF in the standard configuration.Set the automatic power ON/OFF with a simple operation by choosing either one of Everyday, Every day of the week and Every week (up to 7 settings). Furthermore, the power save mode moves to the pause state automatically if there are no input signals.
Various kinds of the main/sub (2 screens) display function includes PiP (Picture-in-Picture), where the sub screen is displayed on the main screen, and PoP (Picture-out-Picture), where the sub screen is displayed on the side of the main screen. Select the optimum display formation according to the uses and the purposes.
The monitor can be installed according to the available space, the images to be displayed and the purpose of the display. Choose between landscape mode and portrait mode, as well as an installation on the ceiling or mounted on the wall. (Compliant with VESA standards) With the RS-232C connector, various kinds of control of the monitor are available.
