其他功能
| 绿色同步 |
Y |
| 独立h/v同步 |
Y |
| 可视尺寸，横向 |
1018.1 mm |
| 可视尺寸，纵向 |
572.7 mm |
| 复合同步 |
Y |
| 线缆锁插槽 |
Kensington |
| BNC输入端口 |
1 |
| 内置摄像头 |
N |
显示器
| 垂直扫描范围 |
50 - 85 Hz |
| HD 类型 |
Full HD |
设计
| 边框宽度（顶部） |
18.3 mm |
| 边框宽度（底部） |
18.3 mm |
端口 & 界面
| 复合视频 |
1 |
| DVI-D接口数量 |
2 |
| DisplayPort 数量 |
1 |
| HDMI端口数量 |
1 |
环境条件
| 非运行高度 |
0 - 12192 m |
| 工作高度 |
0 - 3000 m |
另外
| 水平扫描范围 |
31.5 - 91.1 kHz |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
116.84 cm (46 ") A-MVA, 1920 x 1080, 16:9, 350cd/m2, DisplayPort, HDMI, DVI-D, VGA, BNC Composite, RS-232C, RJ-45, RMS 10W, 76W

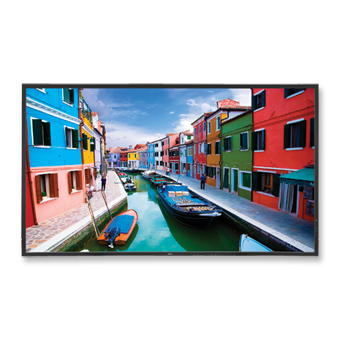

NEC’s 46” V463 high-performance large-screen display utilizes LED backlighting to deliver both environmental and functional benefits for digital signage. The V463’s commercial-grade panel is capable of displaying brilliant imagery and capturing the audience’s attention. This full HD model features built-in 10W speakers and an Open Pluggable Specification (OPS)-compliant expansion slot, which future-proofs the display and allows for the seamless integration of a computer or other NEC/third-party component. Because video, RS-232 control and power are passed internally from the display to the computer, additional cabling is not required, thereby simplifying installations. With integrated temperature sensors and fans, this display is ideal in applications that require extended use, including retail stores, restaurants, indoor venues, training facilities and corporate boardrooms.
- LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth
- Built-in expansion slot supports the Open Pluggable Specification (OPS), which is the industry’s first standardization option slot that simplifies digital signage installations
- Full 1080p high-definition resolution provides stunning detail
- Commercial-grade LCD panel and components enable extended run time
- Expanded connectivity with digital loop-through
- TileMatrix allows you to create video walls up to 10 x 10
