数据传输
| 存储转发 |
Y |
| 支持数据传输率 |
10/100 Mbps |
| 最大数据传输率 |
0.1 Gbit/s |
联网
| 广播风暴控制 |
Y |
| 全双工传输 |
Y |
| 流量控制支持 |
Y |

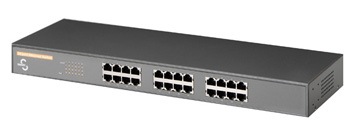

24-Port Fast Ethernet Smart Switch
General Descriptions
Pro-Nets ES3124CS Full Duplex Ethernet Switch is a full-featured Ethernet Switch that provides Ethernet direct connection to local area network or individual PC with build-in 24-port Switch. ES3124CS uses advanced Ethernet chipset solution with complete set of industry standard features for high-speed Internet access. ES3124CS offers easy installation and cost-effective connection for corporate users.
All Pro-Nets products are made in ISO9001 approved factory. ES3124CS Web Smart Switch complies with FCC part15 regulations and CE approval.
Features and Benefits
- Supports 24 10M/100M auto-detect Half/Full duplex switch ports
- Supports 802.3x flow control for full-duplex mode and collision-based backpressure for half-duplex mode
- High performance switching engine performs forwarding and filtering at full wire speed
- Supports Head of Line (HOL) blocking prevention
- Supports Non-blocking Store & Forward architecture
- Performs Broadcast Storming Filter function
- Supports self-learning and address recognition mechanism enables forwarding rate at wire speed
- Supports port-based VLAN and 802.1Q tag-based VLAN with both IVL and SVL
- Supports 802.1v protocol-based VLAN classification
- Supports port trunking with flexible load distribution control and fail-over function
- Provides 7 trunk groups of up to 4 member ports within 24 ports
- Supports ingress port security mode
- Supports source-port-based, destination-port-based, and source-destination-pair-based Sniffer function
- Embedded 1.5Mbit SSRAM for control data, including 6/8/10/14K address space for 64-bit address table entries, shared with 2K 128-bit VLAN table slots, 2/4K 16-bit protocol-based VLAN index table slots, 32-bit port mask table of 448 slots for static multicast address entries
- Web Smart Configuration
