联网
| 以太网的数据传输率 |
10, 100 Mbit/s |
| 以太网铜缆技术 |
10BASE-T, 100BASE-TX |
性能
| 可支持的Mac操作系统 |
Mac OS 9.0, Mac OS X 10.1 Puma, Mac OS X 10.2 Jaguar, Mac OS X 10.4 Tiger |
| 网路唤醒功能 |
Y |
另外
| 以太网路(RJ-45)连接接口数量 |
1 |
| 以太网连接器 |
Y |
| 数据传输率(最大) |
100 Mbit/s |
| 连接方式 |
Wired |
Fast Ethernet, 10/100Base-T(X), 32-bit PCI
<b>What it does</b>

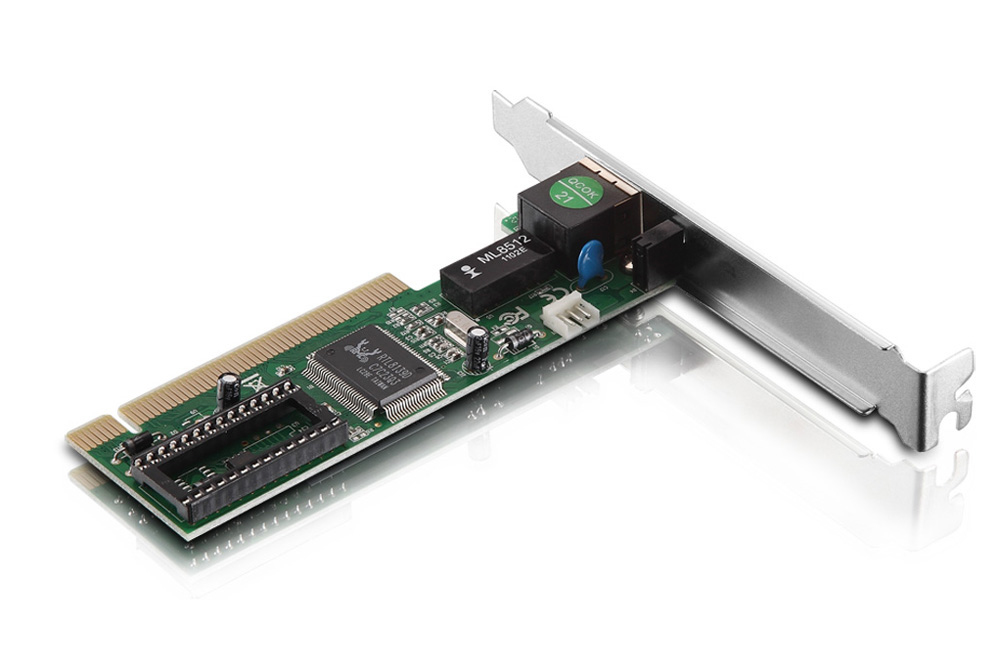

The netis AD-1101 Fast Ethernet PCI Adapter is a highly integrated and cost-effective Adapter that supports 32-bit data transfer and reduces CPU loading using bus master architecture. It also provides WOL and Boot-ROM. The netis Fast Ethernet PCI Adapter keeps low cost and eliminates usage barriers. It is the easiest way to upgrade a network from 10 to 100Mbps. It supports both 10Mbps and 100Mbps network speed both in Half-Duplex and Full-Duplex transfer modes, using Auto-Negotiation technology to detect the network speed. It also can be widely used in most modern Operating System
- Support 32-bit PCI interface
- Comply with the IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX specifications
- Support Full-Duplex, achieve up to 20M/200M network bandwidth
- Plug and Play
- Support Windows XP (32/64bits), Window 2000 (32/64bits), Windows 7 (32/64bits); Linus; Mac OS
