性能
| 5 GHz |
N |
| 发射功率 |
23 dBmW |
| 以太网的数据传输率 |
100, 10 Mbit/s |
| 2.4 GHz |
Y |
| 固件可升级 |
Y |
| 网上管理 |
Y |
| 频段 |
2.4 - 2.4835 GHz |
协议
| 动态主机配置协议服务器 |
Y |
| 动态主机配置协议客户 |
Y |
另外
| 数据传输率（最大） |
300 Mbit/s |
| 以太网路(RJ-45)连接接口数量 |
2 |
| 包括 AC 适配器 |
Y |
2.4GHz, 300Mbps, 802.11b/g/n, Fast Ethernet, PoE

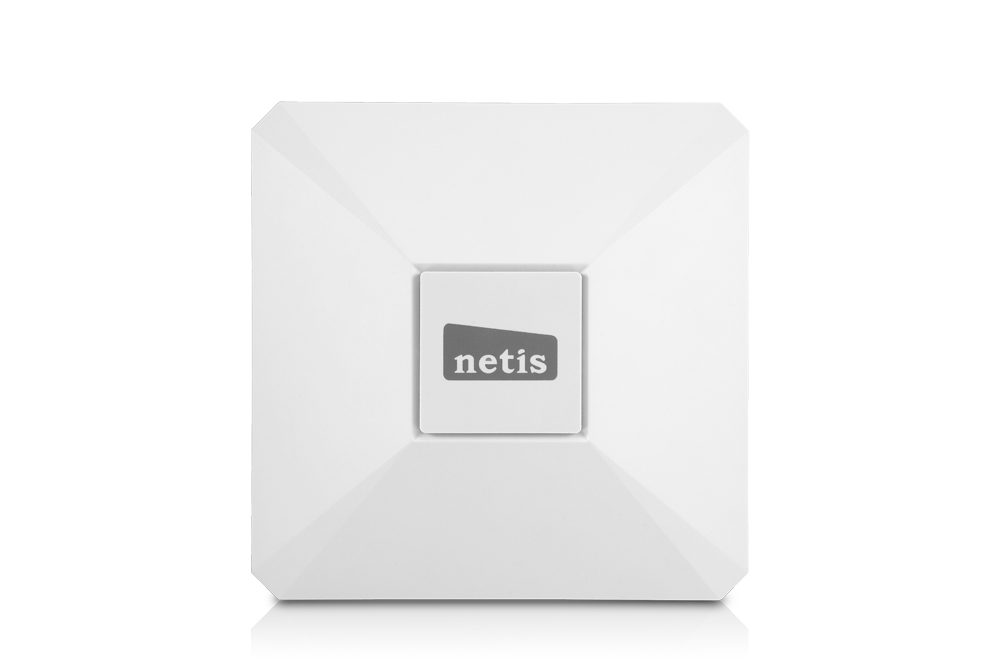

<b>300Mbps Wireless N Ceiling-Mounted Access Point</b>
The netis 300Mbps Wireless N Ceiling-Mounted Access Point WF2222 provides long range, high performance wireless Internet access over large areas. It provides you multiple wireless modes including AP, Repeater, WDS, Client and Multi-SSID, for flexible wireless network setup and deployment. Also, with the 802.3af & Passive PoE design, you may easily establish a solution where electrical socket is unavailable or hard to reach.
The netis WF2222 is a high speed solution that is compatible with IEEE 802.11 B/G/N. Based on 11N technology, WF2222 provides you wireless high speed up to 300Mbps, ideal for online gaming, video streaming, and VoIP phone calling.
WF2222 supports AP, WDS, Repeater, Client, Multi-SSID (VLAN) modes, providing various wireless solutions. When using Multi-SSID, you can also assign different VLAN ID to different wireless network, to make netis access point work with switches which as VLAN assigned for different access level and authority.
WF2222 makes it possible for you to control the wireless online time reasonably. After the correct time setting, you may set the Wi-Fi auto-off during the sleeping time while auto-on in the day time to control the Wi-Fi influence in your house.
Once more than one access point is installed in different rooms of the house, you may hardly to find the detailed position for each device. You may access to the configuration page for specified device to activate the LED Locator function, and then the LED may start flashing for a specified time for you to find out the device from where it’s installed in the house.
WF2222’s ceiling-mounted appearance makes it easy to be installed to the wall or ceiling surface. Also, it can be powered by an Ethernet cable which transmits data and electricity at the same time, to allow you to locate the Access Point in a position even the power slot is not available.You may feel much convenient to get the best signal and coverage when building the wireless network.
WF2222 has built-in Metro Style web interface to help you understand the device status and setup your wireless connection within seconds.
