性能
| 固件可升级 |
Y |
| 重启按钮 |
Y |
| 支持服务质量（QoS） |
Y |
| 频段 |
2.4 - 2.4835 GHz |
| 以太网的数据传输率 |
10, 100 Mbit/s |
| 自动无线分布系统 (WDS) |
Y |
| 5 GHz |
N |
| 高功率 |
Y |
| 发射功率 |
30 dBmW |
| 自动 MDI / MDI - X 检测功能 |
Y |
| 通用即插即用（UPnP） |
Y |
| 2.4 GHz |
Y |
另外
| 以太网路(RJ-45)连接接口数量 |
2 |
| 数据传输率（最大） |
300 Mbit/s |
IEEE 802.11b/802.11g/802.11n, 300 Mbps, 2.4-2.4835 GHz, 1x RJ-45 WAN, 1x RJ-45 LAN, PoE

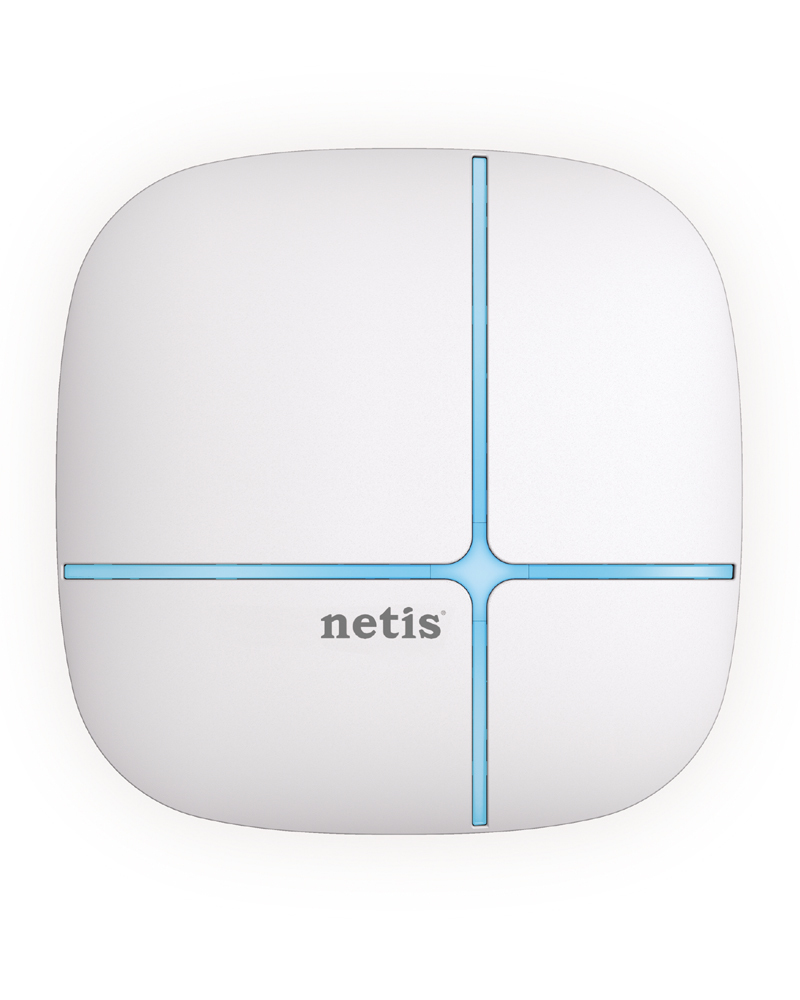

<b>300Mbps Wireless N High Power Ceiling-Mounted Access Point (IEEE 802.3af&at PoE)</b>
The netis 300Mbps Wireless N High Power Ceiling-Mounted Access Point WF2520 provides long range, high performance wireless Internet access over large areas.It provides you multiple wireless modes including Access Point, AP Router, Client, WDS, Repeater, and WISP, for flexible wireless network setup and deployment. Also, with the 802.3af&at PoE design, you may easily establish a solution where electrical socket is unavailable or hard to reach. Under the high power mode, you will enjoy much better network experience in large homes, multi-floor offices or warehouses.
<b>Multiple Operation Mode</b>
Availability for Various Network Applications
WF2520P supports AP(Default), AP Router, and WISP as operation modes. And under AP Router mode, it provides Access Point, Client, WDS, AP+WDS, Client+Repeater modes for various wireless solutions. Based on your current network structure, you can flexibly choose a suitable wireless mode to build or extend the wireless network.
<b>High Power</b>
Penetrate Walls and Eliminate Dead Zones
With the advanced high Power Amplifiers (PA) and Low Noise Amplifier (LNA) technology, WF2520P provides powerful Wi-Fi coverage that easily penetrates walls and Wi-Fi obstructions to provide Wi-Fi coverage in hard to reach areas. It is great for larger homes, backyards, offices, hotels and warehouses.
<b>PoE Supported (802.3af & at)</b>
WF2520 powered by an Ethernet cable which transmits data and electricity at the same time, to allow you to locate the Access Point in a position even the power slot is not available.You may feel much convenient to get the best signal and coverage when building the wireless network.
