安装
屏幕尺寸最大的兼容性 |
75 " |
屏幕尺寸最小的 兼容性 |
32 " |
安装接口兼容性(最小) |
200 x 200 mm |
安装界面相容性(最大) |
600 x 400 mm |
支持的显示器数量 |
1 |
最大承重量(最大载重能力) |
50 kg |
人体工程学
距离墙(最大) |
520 mm |
距离墙(最小) |
50 mm |
旋转角度 |
120 ° |
倾角 |
0 - 20 ° |

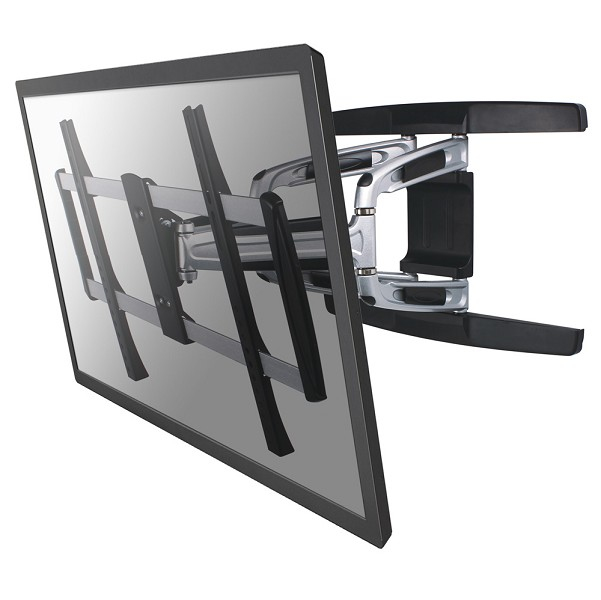

Newstar TV/Monitor Wall Mount (Full Motion) for 32"-60" Screen - Silve
The NewStar wall mount, model LED-W750SILVER is a full swing tilt- and swivel wall mount for flat screens up to 75" (191 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen TV. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished.
NewStars’ tilt (20°) and swivel (120°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily depth adjustable from 5 to 52 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep living room, bedroom or home cinema installation nice and tidy.
NewStar LED-W750SILVER has three pivot points and is suitable for screens up to 75" (191 cm). The weight capacity of this product is 50 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 200x200 to 600x400mm. Different hole patterns can be covered using NewStar VESA adapter plates.
Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema.
All installation material is included with the product.
