设计
类型 |
PC |
支持的主板外形 |
ATX |
格式要素 |
Full-Tower |
EDGE | ATX/Flex ATX/M-ATX/E- ATX case w. Noise Absorption and 3x 14cm fan
EDGE - great airflow, silence and plenty of space for a whole lot of HDD's and opticals...
Motherboards

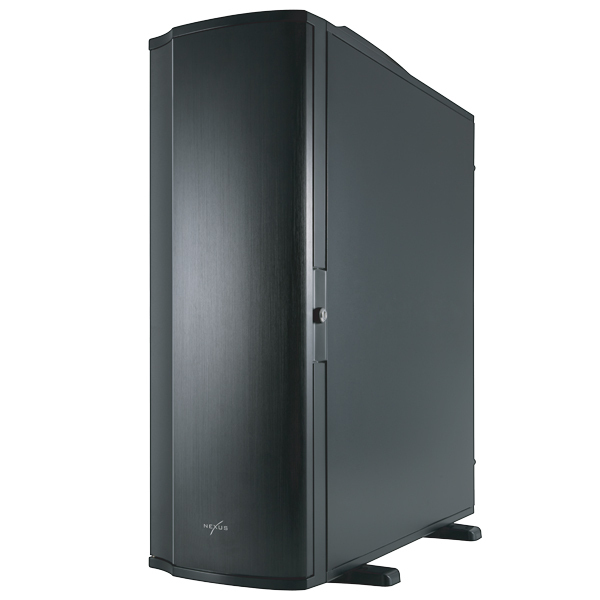

The Nexus Edge case is a Full-tower big case that fits ATX/Flex ATX/Micro ATX and Full ATX motherboards.
Noise absorption wave foam
The side panels of the Edge case are fully covered with noise absorption wave foam to absorb noises and sounds from the inside of the case.
Stunning front panel
The front panel is from 3mm thick aluminum with three stunning finishes. The right hand side of the front panel has the recognizable aluminum hairline finish and the left hand size has a sand-spray mat finish. And at the edge, where these two different surface treatments come together, has been polished to a mirror finish line.....
Fans
Sure you need good cooling...but you do not want the noise...right? We fitted the Edge with 3 pieces of real silent 14cm (!) case fans. These fans run at 1000 RPM and move a massive amount of air....but all ultra quiet.
Rubber buffering
When you install the power supply of your choice in the Edge case you will notice that you lay the PSU on nice, soft rubber buffers. These buffers prevent resonance and vibration and make sure the PSU has enough room to 'breathe' so the fan speed of the PSU is not influenced by air obstruction.
Filters
At the air intake areas such as at the front 14cm case fan we have positioned some filter parts to keep the dust out of the case. Also at the ventilation and air-intake holes in the bottom of the case there are 2 dust filters.
Toolless
And to keep things nice and simple... HDD's and opticals are fitted toolless.
Specifications
Model number: EDGE
Motherboard size: ATX, Extended ATX, Micro ATX
Padding: Noise absoprtion wave foam
PSU: not supplied
Case fans: 3x 140mm | 1000RPM
Front ports: E-SATA, 2x USB 2.0, MIC and AUDIO
5.25" bay exposed: 8 tool less
3.5" bay exposed: 1 tool less
3.5"bay hidden: 9 tool less
Expansion slots: 7 tool less
Case size: 64,2x23,9x57,6cm (L x W xD)
Front cover: Aluminum + ABS
Chassis material: SECC 1.0 t
Watercooling: 4 pipe holes for liquid cooling
Feet: Rubber adjustable feet
