安全
防火墙 |
60+ DDoS, 30+ ALG |
认证方法 |
NAT |
MAC(媒体存储控制)地址过滤 |
N |
协议
路由协议 |
OSPF |
管理协议 |
IGMPv2, IGMPv3, PIM-SMv2, PIM-SSM |
动态主机配置协议客户 |
N |
动态主机配置协议服务器 |
N |
支持网络协议 |
PPPoE, PPP, HDLC, BCP |
其他功能
连通的液晶显示器 |
Y |
接口 |
2xT1 |
电源类型 |
AC |
认证标准
电磁辐射 |
FCC Part 15 Class A; EN 55022, EN 300 386-2, EN61000-3-2 & EN61000-3-3 |
安全 |
UL/cUL 1950, 3 (2000); IEC60950, 3 (1999) |
环境条件
运行温度范围(T - T) |
32 - 104 °F |
另外
以太网连接器 |
N |
连接方式 |
Wired |
以太网路(RJ-45)连接接口数量 |
2 |

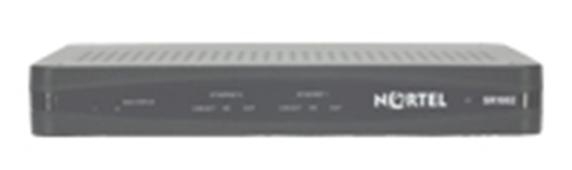

Secure Router 1002 2-ports active T1, (2) 10/100 Eth. Ports, 16MB FLASH, 256MB SDRAM, AC power supply, OSPF, RIP, VLAN, BGP, Firewall, Multilink, Multicast, QoS (No power cord included)
Nortel Secure Router Portfolio enables secure end-to-end converged solutions. The Nortel Secure Router 1002 provides high performance WAN access for enterprise branch offices and remote sites. This versatile platform provides a single T1 or E1 port plus the ability to upgrade to two-port (T1/E1) capacity. The Secure Router 1002 provides unparalleled performance and advanced software functionality in a compact, highly reliable platform.
High performance optimized for high-demand applications
Perform at wire speed even with small packet sizes and network services enabled. Low-latency, high packet throughput is optimal for VoIP and multimedia transport.
Advanced technology
An industry-leading set of advanced technologies including:
- A fast path forwarding engine.
- Multi-link bonding.
- Extensive QoS capabilities.
- Security features including IPsec VPN, stateful firewall, policy-based NAT and DoS protection.
Robust routing
Routing features include:
- Comprehensive IP routing services (OSPF, RIP, static routing, equal cost multi-path).
- Advanced BGP-4.
- Multicast (PIM-SSM, PIM-SM, IGMPv3).
- Multi-homing.
Integrated security
Security features include:
- IPsec VPN services for secure voice/data transport.
- Stateful packet inspection firewall.
- H.323 and SIP ALGs for VoIP support.
Multi-link scalability
Bond multiple T1/E1s into a single logical circuit with dynamic load balancing across each WAN connection
Quality of Service (QoS)
Includes multi-level priority-based queuing (Layer 2 and Layer 3) to optimize voice, video and data
Integrated solution
Include a wide array of integrated capabilities, including IPsec VPN, stateful firewall, built-in Ethernet ports, CSU/DSU and drop/insert (DSX-1) voice support, eliminating the need to purchase extra equipment to support additional services.
Simplified user architecture
Offer Command Line Interface (CLI) scripting tools to quickly deploy and maintain the router.
