设计
| 3.5" 托架数量 |
6 |
| 5.25" 托架数量 |
4 |
| 格式要素 |
Full-Tower |
| 侧窗 |
Y |
| 类型 |
PC |
| 扩展插槽数 |
9 |
| 内部3.5英寸托架数量 |
6 |
冷却
| 安装的侧面风扇 |
1x 140 mm |
| 支持的底部风扇直径 |
140, 120 mm |
| 前部风扇安装 |
1x 140 mm |
| 液体冷却能力 |
Y |
| 安装的顶部风扇 |
1x 140 mm |
| 最大底部风扇 |
2 |
| 最大顶部风扇 |
3 |
| 最大侧风扇 |
2 |
| 支持的侧面风扇直径 |
140, 120 mm |
| 最大前部风扇 |
2 |
| 支持的后部风扇直径 |
120, 140 mm |
| 安装的后部风扇 |
1x 140 mm |
| 最大后部风扇 |
1 |
端口 & 界面
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |

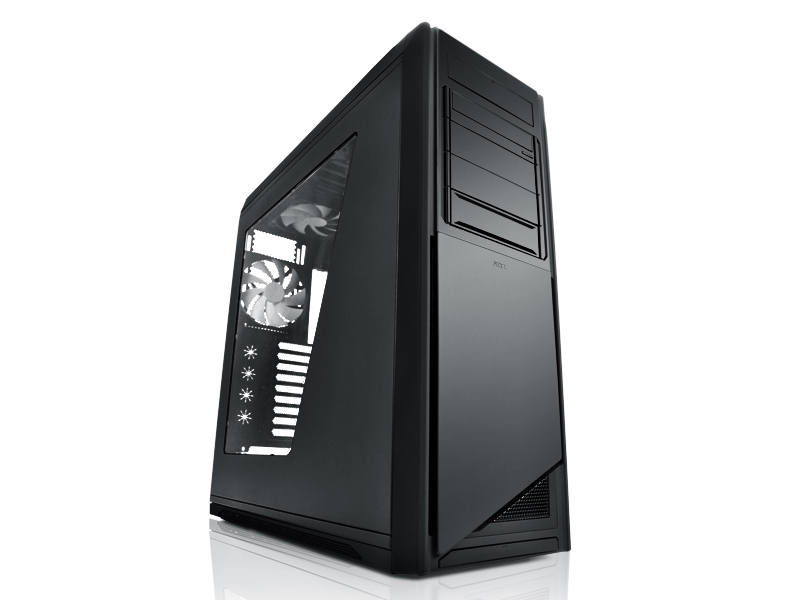

SWITCH 810 Special Edition Matte Black Hybrid Full Tower
Experience the pinnacle of chassis design! Switch 810 is an epic hybrid case built for the hardcore PC enthusiast. This full tower chassis introduces a first of its kind concept for more versatility and adaptability to any configuration. It can be modified for superior water cooling or superb airflow through seamless operation. The Switch 810 is the ultimate powerhouse suitable for any type of PC enthusiast – whether you are liquid cooling, silent performance, or extreme airflow. You will have full control to customize all the features of Switch 810 based upon your preference.
- Unique hybrid full tower chassis optimized for extreme liquid cooling, airflow, or silence.
- Supports high-end water cooling solutions up to three fans for push and pull configuration: 90mm of internal top space with top 360/420mm and bottom 140/240mm radiator support for unmatched liquid cooling.
- Four watercooling cutouts for easy liquid cooling management on the rear panel.
- Spacious CPU cutout for mounting high-end CPU coolers without removing the motherboard.
- Removable top 5.25” plates to accommodate wide radiators.
- Clever hybrid fin design allows the user to choose between maximum airflow or sound reduction.
- Innovative right-mounted HDDs for easy hard drive replacement.
- Removable HDD pull-out cages and large storage capacity for 7 hard drives.
- Equipped with two 140mm pivot fan slots for directing airflow at 15⁰ to the VGA and CPU.
- Rear white light for visibility in dark environments with a toggle switch.
- Dual high-speed USB 3.0, hard drive dock along with a SD card reader for transfer and quick access to multimedia.
- 5.25" hard drive hot swap with SATA III support.
- Nine expansion slots for installing EATX motherboards with Quad SLI or Triple Crossfire.
- Supreme cooling capacity with up to ten 140/120mm fans.
- Stress-free wire management and 23mm clearance in the rear allows for superb wire-tucks.
- Ten large specialized cutout holes for easy cable management.
- Easily removable bottom filters in the front and rear to prevent dust from entering.
- Tool-less 5.25” and 3.5”/2.5” SSD hard drive installation for convenience and ease of accessibility.
- Large acrylic window with a view to show off the interior of your rig.
