技术细节
| 类型 |
AV transmitter & receiver |
| 无线局域网连接 |
Y |
| 最大传输距离 |
30 m |
| HDCP |
Y |
| 无线技术 |
dual-band wi-fi 802.11n |
| 音频系统 |
Multichannel |
端口 & 界面
| 3.5 mm 毫米输入端口 |
Y |
| USB 连接器形状 |
Mini-USB A |
| 3.5 mm 毫米输出端口 |
Y |
| HDMI输入 |
1 |
重量和尺寸
| 接收器尺寸（宽 x 深 x 高） |
85 x 85 x 27 mm |
| 接收器的重量 |
388 g |
| 发射器重量 |
388 g |
| 发射器尺寸（宽x深x高） |
85 x 85 x 27 mm |
5.1 DTS HD, FullHD, 3D, 1080p, HDCP, 30 m

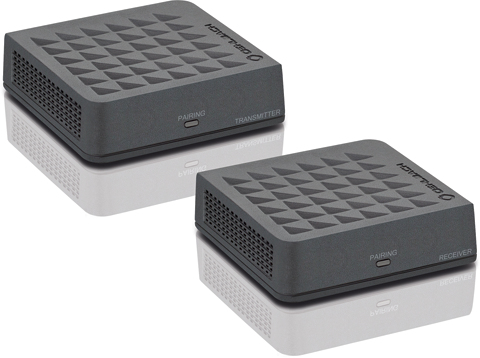

The Falcon HD Wireless HDMI Transmitter guarantees loss-free wireless transmission of HDMI signals in FullHD and 3D. Transmission of the entire 1080p information with very low latency of less than 0.5 seconds is ensured over a range of 30 m with a clear line of sight. In addition, IR signals from the remote control are also transmitted reliably. The Qualcomm Atheros chipset provides for the necessary processing power for the wireless transmission is an optimum manner. The PureVu CNW8302 FullHD media processor ensures loss-free video processing in precise detail. It goes without saying that the Falcon HD is HDCP-compliant and energy-efficient. Thanks to its compact dimensions, it offers many varied set-up options and flexibility.
It is not without good reason that the AR9374 wi-fi chip from Qualcomm is the first choice in any devices with high demands concerning data throughput, range and operating stability for wireless data transmission. Its extremely compact format allows the problem-free elimination of any scattering signals, meaning that it can be integrated into our high-quality Oehlback products. With dual-band wi-fi 802.11n, signals up to 300 Mbit/s are transmitted, with the AR9734 providing excellent signal stability even at maximum range.
