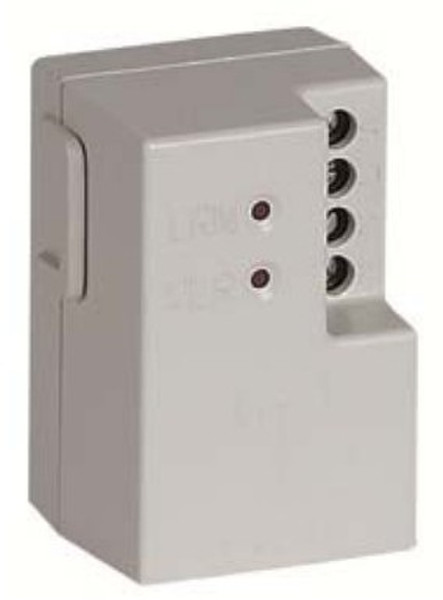

Omnio UPE230/01

Flush mounted switching actuator ECO 1-channel 5A Supply voltage 230V AC The flush mounted switching actuator ECO 1-channel UPE230/01 is a device for switching electrical loads. Its nonisolated 230V AC output is able to be controlled by up to 30 Omnio radio transmitters of the type WS or up to two Omnio window contacts of the type FK. While programming the first transmitter the running mode can be fixed: Wall mounted- or window contact mode. Using the wall mounted mode each programmed transmitter is able to switch the electrical load either on or off. Whilst the window contact mode is only able to turn off the electrical load, unless all window contacts are closed (AND operation). Suitable for flush mounted sockets.
