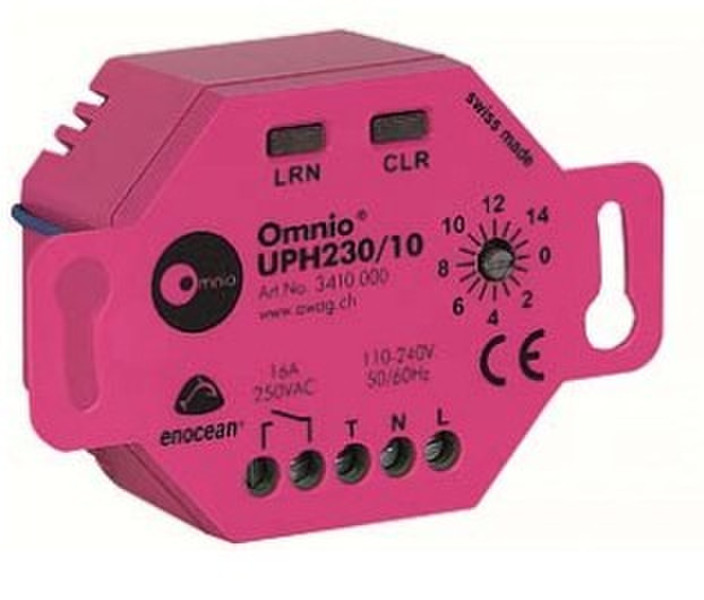

Omnio UPH230/10

Flush mounted thermostatic actuator 1-channel 16A including two position controller, supply voltage 230V AC The Omnio flush mounted thermostatic actuator UPH230/10 is a device to switch and regulate control valves, electric heaters or similar electric loads through a two position controller with hysteresis. Its potential free output is able to be controlled by an Omnio room temperature sensor RTF and up to eight Omnio window contacts or –handles in ANDoperation. The modes standby, comfort, night and off can be selected via optional Omnio radio transmitters. The frost protection will automatically switch on if the room temperature sensor should fail. With a conventional push-button connected to the extension input one can switch to the second target value. Thanks to bi-directional communication feedback is given in
cyclic manner or as soon as the state changes. In addition this actuator can be used as repeater if the next one is it out of reach. EnOcean Equipment Profile (EEP) D2-01-01. Suitable for flush mounted sockets.
