联网
| 布线技术 |
100BASE-FX, 100BASE-TX |
| 双机热备系统 |
Full, Half |
其他功能
| 接收功率 |
-31 - -14 dBmW |
| 发射功率 |
-24 - -14 dBmW |
性能
| 光纤模式结构 |
Multi-mode |
| 最大传输距离 |
5000 m |
| 波长 |
1310 nm |
另外
| 数据传输率（最大） |
100 Mbit/s |
| 连接方式 |
Wired |
| 以太网路(RJ-45)连接接口数量 |
1 |
100BASE-TX / 100BASE-FX, DF, MM, MT-RJ, RJ-45, 1310 nm, 5 km, 7 dBm

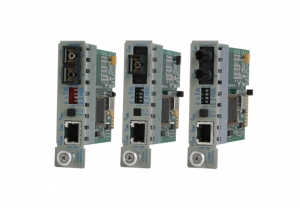

The iConverter 100Fx/Tx is an IEEE 802.3 compatible 100BASE-TX UTP to 100BASE-FX fiber converter
- Supports multimode, single-mode, and single-fiber with ST, SC, LC and MT-RJ connectors
- UTP port supports Full or Half-Duplex 100Mbps Ethernet
- UTP crossover switch eliminates the need for a crossover cable
- User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting
- Management is available with the addition of a management module to the chassis
- SNMP management via NetOutlook provides real-time port and module information, remote parameter configuration and trap notification
- Modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis
- LED displays for immediate visual status of each port
- Lifetime Warranty and free 24/7 Technical Support
- The iConverter 100Fx/Tx managed media converters are members of the modular iConverter product family, and provide 100BASE-TX UTP to 100BASE-FX fiber conversion.
The iConverter 100Fx/Tx models are available with multimode, single-mode and single-fiber options. They support ST, SC, LC and MT-RJ connectors. The UTP port supports 100BASE-TX in either Full or Half-Duplex mode. A UTP crossover switch eliminates the need for a crossover cable and facilitates connectivity to network equipment such as hubs, switches and workstations.
The 100Fx/Tx features user-selectable Link Propagate, Link Segment, Remote Fault Detection and Symmetrical Fault Detection modes to facilitate quick fault detection, isolation and reporting.
iConverter 100Fx/Tx modules are hot-swappable and can be mounted in a 19-Module (2U high) or 5-Module (1U high) rack-mountable chassis (19-inch or 23-inch) with any combination of redundant AC, 24VDC or 48VDC power supplies. They can also be mounted in a 2-Module AC or 18 to 60VDC powered chassis, or in a 1-Module AC/DC powered chassis.
The iConverter family of managed fiber access media converters are used in Service Provider access networks and Enterprise LANs. iConverter media converters provide fiber connectivity with copper-to-fiber, multimode fiber to single-mode fiber, or dual fiber to single-fiber conversions.
