无线电
| AM波段范围 |
522 - 1710 kHz |
| 包含相关数据库调谐器 |
Y |
| 预设电台数量 |
40 |
| 调频电台 |
Y |
| FM波段 |
87.5 - 108 MHz |
卫星音箱
| 卫星功率有效值 |
120 W |
| 卫星扬声器频率范围 |
80 - 20000 Hz |
| 卫星扬声器阻抗 |
6 Ω |
| 卫星扬声器灵敏度 |
81 dB |
| 壁挂式卫星音箱 |
Y |
超低音音箱
| 超重低音功率有效值 |
130 W |
| 无线低音炮 |
N |
| 超重低音频率范围 |
30 - 150 Hz |
| 超重低音炮阻抗 |
6 Ω |
| 超重低音喇叭敏感度 |
82 dB |
技术细节
| 游戏模式 |
Y |
| iPod / iPhone 底座 |
Y |
| DVD录像机 |
N |
| 与苹果产品对接兼容性 |
iPhone, iPod |
| 屏幕显示 |
Y |
端口 & 界面
| 复合视频 |
5 |
| 数字音频光纤入 |
2 |
| 调频天线 |
Y |
| 数字音频同轴i输入 |
1 |
| 耳机输出端口 |
1 |
| 复合视频输出 |
2 |
| HDMI输入 |
4 |
中置扬声器
| 中央扬声器阻抗 |
6 Ω |
| 中央扬声器电源 |
120 W |
| 中心扬声器频率范围 |
80 - 20000 Hz |
| 中央扬声器灵敏度 |
82 dB |
| 中置扬声器壁挂式 |
Y |
重量和尺寸
| 前置扬声器尺寸（宽 x 深 x 高） |
101 x 116 x 175 mm |
| 卫星音箱尺寸（宽x深x高） |
101 x 116 x 175 mm |
| 卫星扬声器重量 |
700 g |
| 中央扬声器重量 |
1000 g |
| 超重低音炮重量 |
5500 g |
| 超重低音扬声器尺寸（宽x深x高） |
211 x 381 x 425 mm |
| 中置扬声器尺寸（宽x深x高） |
273 x 106 x 101 mm |
| 前扬声器重量 |
800 g |
| 主机身尺寸（宽 x 深 x 高） |
435 x 328 x 150 mm |
| 主机重量 |
7500 g |
前置扬声器
| 前置扬声器的频率范围 |
80 - 20000 Hz |
| 前置扬声器阻抗 |
6 Ω |
| 前置音箱RMS功率 |
120 W |
| 前置扬声器灵敏度 |
81 dB |
| 前置扬声器壁挂式 |
Y |
光盘驱动器
| 包含DVD播放器/录音机 |
Not included |
| 光盘类型支持 |
N |

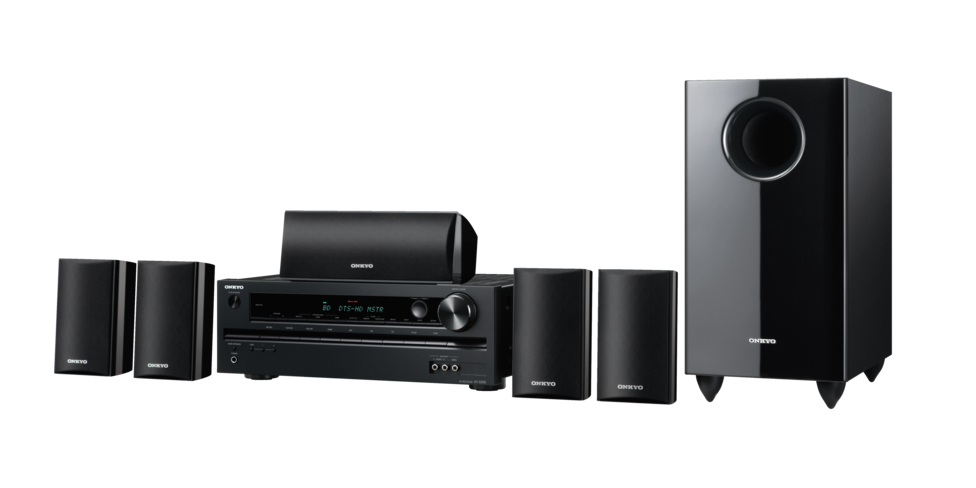

5.1-Channel Home Cinema Receiver / Speaker Package - 120W Speakers, 130W Subwoofer, Dolby TrueHD, DTS-HD Master Audio, Dolby Digital +, OSD, 5x Composite Video In, 3x Digital Audio In, 6x Analog Audio In, Black
A Spectacular Blend of Quality and Value
Onkyo’s AVX-390 combines the convenience of a full-featured A/V receiver and surround-speaker set with the quality assurance of one of home cinema’s leading brands. Four HDMI® inputs on the receiver deliver music, movies, and games in better-thanever resolution. As well as handling high-def audio from DTS and Dolby, these HDMI inputs let you enjoy 3D video and an Audio Return Channel from your compatible HDTV. Front-side on the receiver are handy analog audio and video inputs for fuss-free connection of your game console or camcorder. And on the back is a Universal Port that allows you to hook up peripherals such as an optional iPod/iPhone dock. The system packs Audyssey audio filters to optimize the sound for your living room, and user-friendly on-screen menus so you can easily adjust settings without interrupting the action. Rounding out the package are five precision-matched surround speakers and a powerful subwoofer for deep-impact bass and low-frequency effects.
- HDMI® Support for 3D Video and Audio Return Channel
- Decoding of High-Definition Surround-Sound Codecs
- Convenient Overlaid On-Screen Display via HDMI
- Audyssey Technologies to Optimize the Listening Experience
- Advanced Music Optimizer
