卫星音箱
| 卫星音箱数量 |
4 |
| 卫星功率有效值 |
120 W |
| 卫星扬声器频率范围 |
80 - 20000 Hz |
| 卫星扬声器阻抗 |
6 Ω |
| 卫星扬声器灵敏度 |
82 dB |
无线电
| AM波段范围 |
530 - 1710 kHz |
| 包含相关数据库调谐器 |
Y |
| 预设电台数量 |
40 |
| 调频电台 |
Y |
| FM波段 |
87.5 - 108 MHz |
端口 & 界面
| TV信号输入端口 |
Y |
| 复合视频 |
1 |
| 分量视频(YPbPr/YCbCr)输出 |
1 |
| 数字音频光纤入 |
2 |
| 调频天线 |
Y |
| 数字音频同轴i输入 |
1 |
| 中波天线 |
Y |
| 耳机输出端口 |
1 |
| 数字音频光学输出 |
1 |
| 复合视频输出 |
1 |
| 分量视频(YPbPr/YCbCr)输入 |
2 |
| AUX 输入 |
Y |
超低音音箱
| Subwoofer driver diameter (imperial) |
6.5 " |
| 超重低音功率有效值 |
130 W |
| 超重低音频率范围 |
30 - 150 Hz |
| 超重低音炮阻抗 |
6 Ω |
| 超重低音喇叭敏感度 |
82 dB |
| 超重低音扬声器类型 |
Passive subwoofer |
其他功能
| Satellite speaker driver diameter |
3 " |
| Centre speaker driver diameter |
3 " |
| 音响的连接 |
Y |
| 耳机连接插孔 |
6.3 mm |
| 比特率 |
32 - 320 Kbit/s |
| 液晶显示器指示灯 |
Y |
| ID3标签显示 |
Y |
| 扬声器 |
6 |
| 远程控制类型 |
IR |
| 视频输出 - 数字 |
1 |
| 支持的介质类型 |
BD-Video, BD-R/RE 3.0, BD-ROM, DVD Video, DVD±R/RW, DVD±R DL, MP3 CD, Audio CD, CD-R/RW |
| HDMI端口数量 |
4 |
| 频道/通道 数量 |
6 channels |
音频
| 频响范围DVD |
4 - 44000 Hz |
| MP3 比特率 |
32 - 320 Kbit/s |
| 音频输出通道数量 |
5.1 channels |
| WMA 比特率 |
32 - 320 Kbit/s |
| 内建的声音解码器 |
DTS-HD |
| 频响范围CD |
4 - 20000 Hz |
| DVD音频动态范围 |
86 dB |
| CD音频动态范围 |
86 dB |
| 音频系统 |
LPCM, Dolby Digital, Dolby Digital Plus, Dolby True HD, DTS, DTS-HD |
| 均衡器 |
Y |
| 总谐波失真 |
0.08% |
| 信号-噪声比(信噪比) |
100 dB |
技术细节
| 游戏模式 |
Y |
| 多声道解码 |
Y |
| 放映幻灯片 |
Y |
| 支持的视频格式 |
JPG, PNG |
| 频率范围 |
4 - 88000 Hz |
中置扬声器
| 中央扬声器阻抗 |
6 Ω |
| 中央扬声器电源 |
120 W |
| 中心扬声器频率范围 |
80 - 20000 Hz |
| 中央扬声器灵敏度 |
82 dB |
重量和尺寸
| 前置扬声器尺寸（宽 x 深 x 高） |
161 x 101 x 111 mm |
| 后方扬声器尺寸 （宽x深x高） |
101 x 161 x 111 mm |
| 后方扬声器重量 |
700 g |
| 卫星音箱尺寸（宽x深x高） |
161 x 101 x 111 mm |
| 中央扬声器重量 |
900 g |
| 超重低音炮重量 |
5500 g |
| 超重低音扬声器尺寸（宽x深x高） |
425 x 381 x 211 mm |
| 中置扬声器尺寸（宽x深x高） |
102 x 113 x 230 mm |
| 前扬声器重量 |
800 g |
| 接收器尺寸（宽 x 深 x 高） |
151.5 x 328.5 x 435 mm |
光盘驱动器
| 包含DVD播放器/录音机 |
Blu-Ray |
| Number of optical discs |
1 discs |
| 光盘类型支持 |
BD-R, BD-RE, BD-ROM, CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RAM, DVD-ROM, DVD-RW |

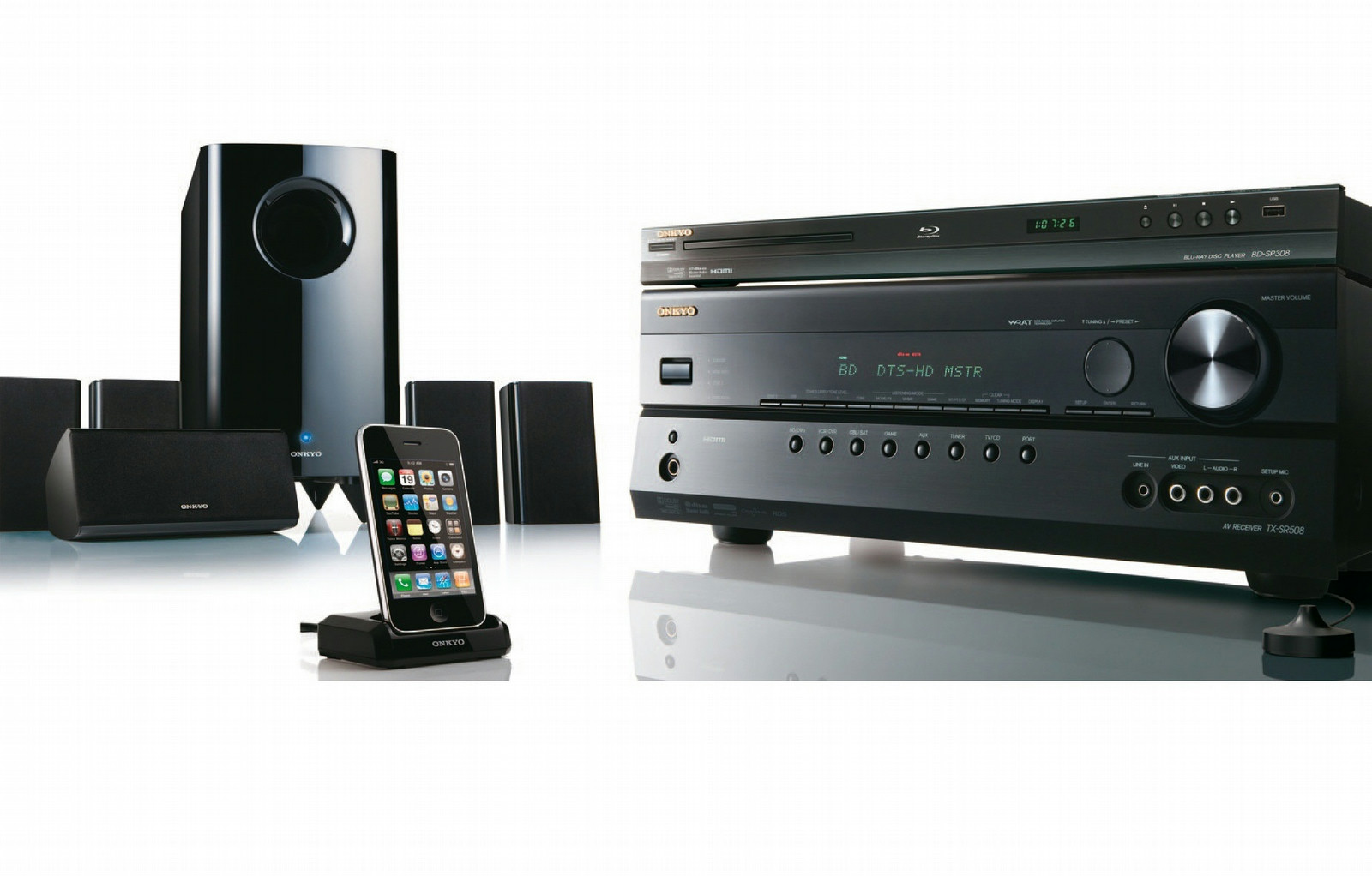

HT-BD6315 B Package
HT-S3305
If you’re looking for a high-performance receiver-and-speaker package that won’t break the bank, your search may be over. Meet Onkyo’s 5.1-channel HT-S3305—a system packed with so much advanced technology that it redefines entry-level home cinema. As with every A/V receiver in Onkyo’s 2010 line-up, you get the latest iteration of HDMI—version 1.4. Three HDMI inputs let you hook up, say, your Blu-ray player, game console, and cable/satellite box—all of which can be output via a single cable to your connected high-res display. Not only is HDMI 1.4 compatible with next-generation 3D video, it also enables a convenient Audio Return Channel. On top of this, the HT-S3305 supports lossless HD audio formats from Dolby and DTS—previously the domain of mid-range to high-end receivers only. But that’s not all. The HT-S3305 also provides an overlaid On-Screen Display function for easy adjustment of settings; a Universal Port for one-cable connection of peripherals; four gaming audio modes; and a fully immersive, beautifully balanced 5.1-channel speaker set.
BD-SP308
As Onkyo’s most affordable Blu-ray player, the BD-SP308 makes an ideal playback partner for our popular entry-level home cinema systems. Now everyone can enjoy the wide-screen thrills of stunning high-def video, whether in native 1080p resolution from a Blu-ray Disc or upscaled from a DVD. On the audio side, the BD-SP308 can decode the spectacular studio quality of DTS-HD Master Audio™ and Dolby® TrueHD, the industry’s leading lossless surround-sound formats. All audio and video content can be output via a single convenient HDMI® jack connected to your compatible A/V receiver. Other connectivity options include a rear-side Ethernet port for
BD-Live compatibility, and a front-side USB port for connecting a flash memory device. The BD-SP308 is compatible with the AVCHD format, which helps deliver smoother and more realistic home movies. All this precision and playability is packed into a slender chassis, with your choice of an all-black or silver-black finish. So take the BD-SP308 for a spin, and experience Blu-ray the Onkyo way.
