联网
| 蓝牙 |
Y |
| 蓝牙模式 |
AVRCP, A2DP |
| 无线局域网连接 |
Y |
| 数据传输速度 |
100 Mbit/s |
输入
| Line-in |
Y |
| 数字音频光纤入 |
2 |
| 遥控器（IR）输入 |
1 |
| PC音频 |
Y |
| AC（电源）输入 |
Y |
| 数字音频同轴i输入 |
2 |
| USB 端口数量 |
1 |
输出
| Line-out |
Y |
| 音频（左、右声道）输出 |
1 |
| 耳机输出端口 |
1 |
| 遥控器（IR）输出 |
1 |
音频
| 输出阻抗 |
680 Ω |
| 输出电平 |
1000 mV |
| 频率范围 |
10 - 100000 Hz |
| 输入阻抗 |
47000 Ω |
| 输入灵敏度 |
200 mV |
| 动态功率每声道（4Ohm） |
190 W |
| 信号-噪声比(信噪比) |
106 dB |
| 总谐波失真 |
0.08% |
| 动态功率每声道（4Ohm） |
170 W |
| 动态功率每声道（8Ohm） |
110 W |
| 每通道输出功率(1KHz@6 Ohm) |
135 W |
无线电
| 支持波段 |
FM, DAB, DAB+ |
| FM波段 |
87.5 - 108 MHz |
| 网上电台 |
Y |
| 包含相关数据库调谐器 |
Y |
| 预设电台数量 |
40 |
技术细节
| 睡眠定时器 |
Y |
| 手持式遥控器 |
Y |
| 高音调整 |
Y |
| 卫星扬声器阻抗 |
16 Ω |
| 低音调整 |
Y |
另外
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

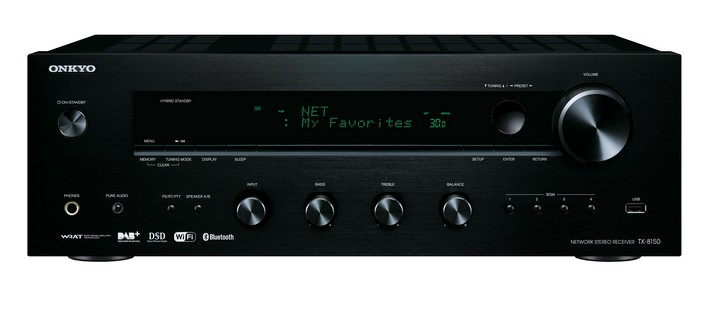

Network Stereo Receiver, USB2.0, MP3/WMA/WAV/AAC/FLAC/Ogg Vorbis/LPCMDSD, Ethernet LAN (10BASE-T/100BASE-TX), Wi-Fi (IEEE802.11 b/g/n ), Bluetooth 2.1 +EDR, DAB/DAB+/FM, Black
- Hi-Current Non-Phase-Shift Amplification.
- Hi-Grade 384 kHz/32-bit DAC.
- Rediscover the Magic of Vinyl.
- Bluetooth Audio, Wi-Fi, and AirPlay with Spotify.
- Ready for Hi-Res Audio.
<b>Magnificent Sound Meets Ultimate Versatility</b>
With 135 W/Ch of pure high-current analog power courtesy of a discrete low-impedance amplification system, your speakers are driven with depth and clarity no matter what audio source you select. And there are so many options: TV sound via digital inputs, music streaming from Spotify over Wi-Fi®, iTunes via AirPlay, MP3s from USB drives, audio from mobile apps via Bluetooth technology, and both FM and DAB+ radio. There’s also a phono equalizer for your turntable and other players can be connected using the four digital and six analog inputs. BGM Preset stores four of your best FM, DAB+, and internet radio stations, so entertainment is only a button push away. Don’t settle for second best: with almost 70 years’ experience building premium Hi-Fi gear, nothing else performs like an Onkyo.
