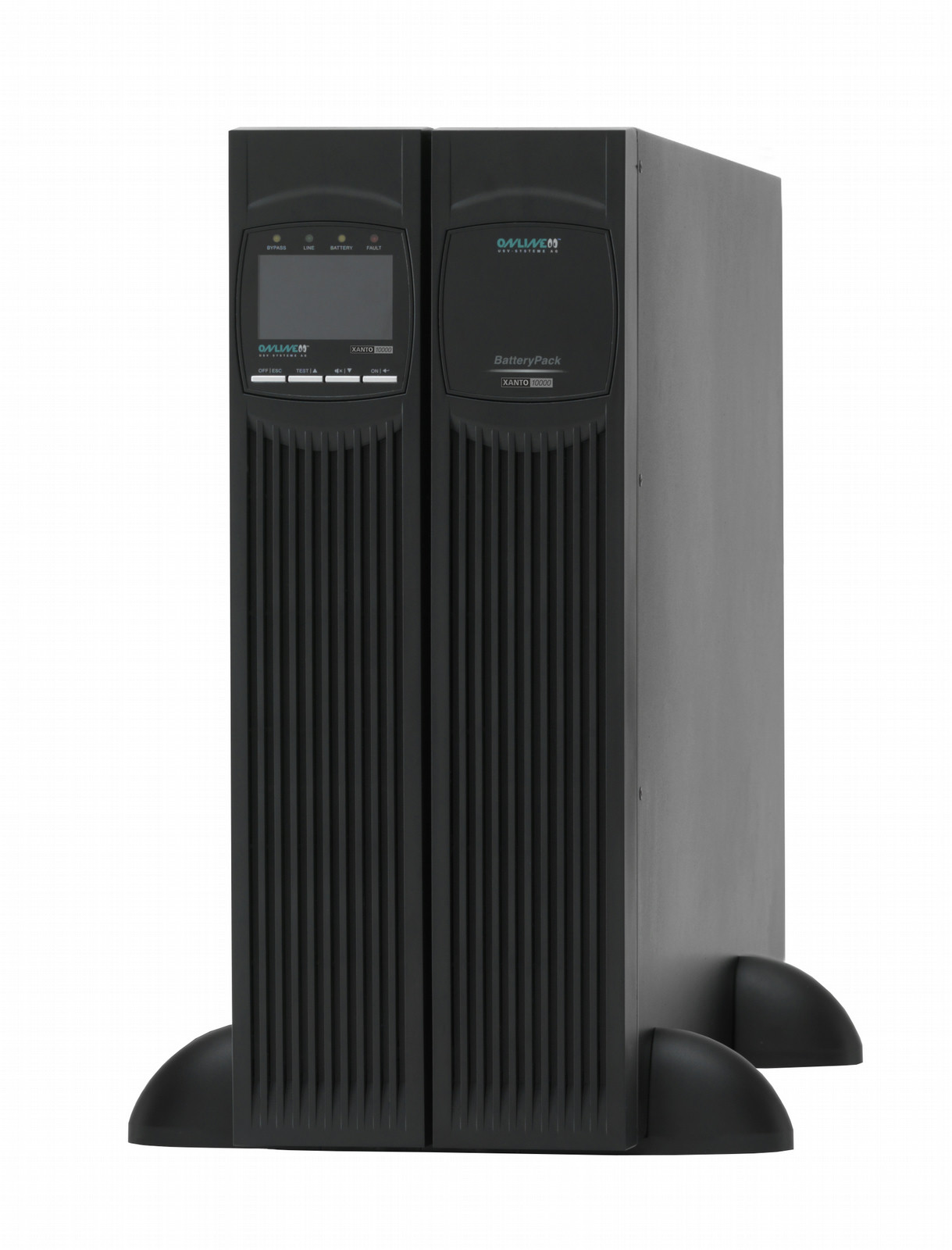

ONLINE USV-Systeme XANTO 10000 Double-conversion (Online) 10000VA Rackmount/Tower Black uninterruptible power supply (UPS)

XANTO 10000 - 10000VA, 230V +/-1%, 50/60Hz, USB, RS-232, 58dB, 47000h, IP21 Perfect: The ultimate protection against power failure and data loss

The new XANTO is the result of the consistent further development of tried-and-proven ONLINE UPS concepts. The premium-class UPS protects servers, switchgear and controlgear, IT and sensitive applications against power failure and data loss.

The XANTO double conversion technology provides a complete decoupling of consumers from the electricity supply system. Even extreme voltage fluctuations, voltage peaks and harmonic waves cause no damage to the supplied devices. A smooth, uninterrupted transition is guaranteed in the event of a power failure. The outstanding highlight of XANTO is its future-oriented DYNAMIC POWER TECHNOLOGY (DPT). It dynamically adapts the output power of the UPS system to its load and increases where necessary the active power (watts) up to their nominal value (watt = VA). More power is thus available than with conventional UPS systems. The proven redundancy mode is also a standard feature of the new XANTO models. The redundancy degree of safety has been improved for the 6000 and 10000VA models: As of now, up to three UPS systems may work together in parallel.
In addition, the new XANTO provides up to 34% more autonomy time than its predecessor model. The low operating costs due to its up to 98% efficiency is an added advantage.

ONLINE USV-Systeme AG (ONLINE) is one of the leading manufacturers of uninterruptible power supplies (UPS). Since 1988, the German company has focussed on the development, production, sale and support of UPS systems. Based on unit numbers sold, ONLINE products are the German number one in the UPS market and internationally recognised
because of their top quality and excellent support.

In economic terms: XANTO therefore pays for itself

Reduces purchase and operating costs, and at the same time protects the environment. The new and future-oriented DYNAMIC POWER TECHNOLOGY from ONLINE USV-Systeme is considered to be a pioneering breakthrough in the UPS sector. It provides the connected load up to 54% more active power (watts) than conventional and widely available UPS systems. Therefore with XANTO a smaller UPS model with lower purchase costs can be used as a result. At the same the UPS system reaches its optimum operating range and reduces the heat losses. This benefits both the environment and the purse of the
operator.

STANDARD REDUNDANCY FOR TRIPLE SECURITY

Triple security with redundancy or a power increase of up to 60,000VA are possible with the standard parallel function of XANTO. It suffices to interconnect the required number of UPS systems. No additional hardware or programming is required. No additional costs arise. For all XANTO with 6,000VA or higher up to three UPS system can be connected in parallel.

Example: Redundancy operation of three XANTO 6000 A load sharing takes place in redundancy operation as long as the supply voltage is available. All XANTO 6,000 are hereby loaded with maximum 1/3 of their nominal capacity. If one of the XANTO 6,000 fails, the two remaining XANTO take over directly and without any interruption.

FLEXIBLE INSTALLATION

The innovative device class of XANTO offers unlimited possibilities for mixing and matching variants: XANTO 6,000 – 10,000 is available in flexible versatile rack-tower design with only 4 U. It enables flexible installation, in particular after relocation or system expansion. The display of the UPS system is adapted for this purpose without tools to the horizontal type of mounting and installed using the 19" angle included in the scope of delivery.

Example: Increase in performance
To increase performance, up to three XANTO can also be connected in parallel. This function is often used when it is planned to expand a system at a later date. As with redundancy operation, all UPS systems initially run with a load sharing. If the power output exceeds the limit value of each separate UPS system, XANTO automatically switches to redundancy mode to increase the performance.

SCALABLE AUTONOMY TIME

With external battery packs, XANTO can in each case adapt the autonomy time to its specific requirements. Therefore, shutting down large networks and backing up extensive databases no longer represent any safety risk. After extensive redesign of the UPS internal charging unit, up to four additional battery pack can now be connected subsequently to a XANTO. With XANTO 10000 3/1, for example, this enables a typical autonomy time of more than 186 minutes to be achieved. This corresponds to more than double the predecessor model.

Flexible: SNMP adapter and DataWatch software

The optional SNMP adapter is the professional solution for multiserver shutdown and for remote administration of the UPS. Thanks to it powerful 32-bit RISC processor, the SNMP adapter supports all well known functions such as automatic data backup with closure of running applications and orderly shutdown of the complete system. An extensive messaging system, freely programmable routines, time-controlled tests and an event log are also mandatory.

A temperature or temperature/humidity sensor can also be directly connected to the "professional“ version (order no. DW5SNMP30). The standard scope of delivery of the XANTO series includes the DataWatch software. This software continually communicates with XANTO via the RS-232 or USB interface and monitors all processes. DataWatch operates in the background and is the all-round software solution for the shutdown and management of the PC system or server system, as well for monitoring the XANTO and the mains power supply.

The RCCMD software agent is recommended for shutting down multiple servers connected to an UPS. It is event driven and thus reduces unnecessary data traffic in the network.

The entire communication is supported by all operating systems.

An optional AS400/relay card can be added to the XANTO for communication with IBM AS400 servers or for integration in industrial switchgear. Dry-contacts (via relay) with the following functions are available on its terminal strip: Normal operation, battery operation, battery voltage low, bypass mode, standby mode, group fault.The UPS can be shut down remotely via an additional input contact.
