电池
| 电池容量 |
9 Ah |
| 热插拔电池 |
Y |
| 电池电压 |
48 V |
| 半载典型备用时间 |
23 min |
| 全载典型备用时间 |
10 min |
| 冷启动 |
Y |
设计
| 机架容量 |
2U |
| 平均故障间隔时间 |
50000 h |
| 国际保护（IP）代码 |
IP20 |
| 格式要素 |
Rackmount/Tower |
| 显示器 |
LCD |
能量控制
| 输入工作电压（最大值） |
274 V |
| 输入工作电压（最小值） |
176 V |
| 效率 |
97% |
| 最大电流 |
11 A |
| 电源输入频率 |
50/60 Hz |
| 输出功率（瓦特－安培） |
1500 VA |
| 输出工作电压（最小值） |
208 V |
| 输出工作电压（最大值） |
240 V |
| 输出电压调节 |
+3 - -3% |
| 输出频率调节 |
50/60 Hz |
| 输出功率 |
1350 W |
端口 & 界面
| 交流电（AC）插座类型 |
C13 coupler |
| 串联接口 |
Y |
| USB2.0端口的数量 |
1 |
| USB端口 |
Y |
| 串口类型 |
RS-232 |
| 电源插头 |
C14 coupler |
| 交流电（AC）插座数量 |
8 AC outlet(s) |
认证标准
| 安全 |
EN62040-1 |
| 认证 |
EN62040-2 (EN61000-2-2, EN61000-3-2, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8), CE |
重量和尺寸
| 深度 |
512 mm |
| 重量 |
21000 g |
| 宽度 |
438 mm |
| 高度 |
88 mm |
性能
| 噪音水平 |
45 dB |
| UPS 拓扑 |
Line-Interactive |
另外
| 产品色彩 |
Black |
| RS-232接口 |
1 |
| 以太网路(RJ-45)连接接口数量 |
2 |
| 运行温度范围（T - T） |
0 - 40 °C |

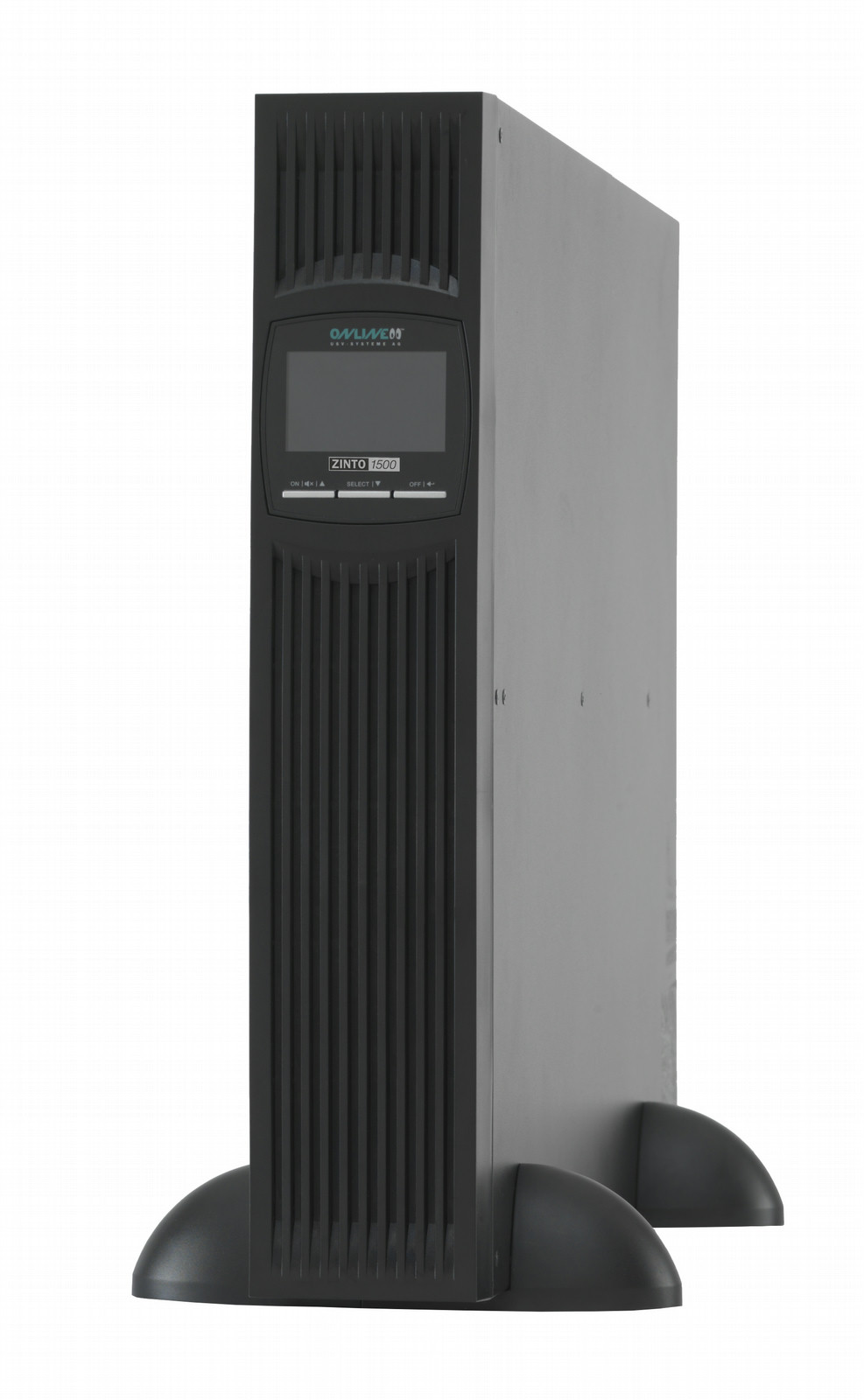

ZINTO 1500, 1500VA, 1350W, 176 - 274V AC, 50/60Hz, 2U, USB, RS-232, SNMP
High grade: Technological advances as standard
ZINTO is the latest generation in the successful series of ON- LINE UPS systems. This generation is the result of almost 30 years of UPS experience and provides sensitive applications with power failure and data loss protection. The outstanding highlight of ZINTO is its future-oriented DYNAMIC POWER TECHNOLOGY (DPT). It dynamically adapts the output power of the UPS system to its load and increases where necessary the active power (watts) up to 90% of the UPS rated valve. More power is thus available than with conventional UPS systems. Noiseless operation is a further innovation. Under normal conditions all ZINTO up to 3000VA operate with- out fan and therefore noiseless. Another benefit is ZINTO's buck-and-boost function which electronically handles voltage fluctuations without using a battery. This increases the life expectancy and minimises ongoing costs.
ONLINE USV-Systeme AG (ONLINE) is one of the leading manufacturers of uninterruptible power supplies (UPS). Since 1988, the German company has focussed on the develop- ment, production, sale and support of UPS systems. Based on unit numbers sold, ONLINE products are the German number one in the UPS market and internationally recognised because of their top quality and excellent support.
Convincing: Multiple applications
Cost-effective purchasing, reliable operation
ZINTO distinguishes itself by offering more power, greater autonomy times and favourable price. Thanks to its convincing features, ZINTO is the global standard for protecting critical applications from power failure, data loss and cost-intensive operational interruptions.
Reliable blood testing:
In addition to being used in classic server or IT applications ZINTO is also used in the medical sector to analyse blood samples. In this case the analysis equipment defines, for examples, values for complete and partial blood counts or is used to detect infectious diseases such as HIV, malaria, hepatitis and tuberculosis. A UPS has to be especially reliable in this area. All samples would be unusable if the power supply were to be interrupted during the process of analysis.
In economic terms: ZINTO therefore pays for itself
The new and future-oriented DYNAMIC POWER TECHNOLOGY from ONLINE USV-Systeme is considered to be a pioneering breakthrough in the UPS sector. It provides the connected load up to 38% more effective power (watts) than conventional and widely available UPS systems. A smaller UPS model with lower purchase cost can therefore be used with ZINTO.
