Opticis SDISE-100-TR AV transmitter & receiver AV extender

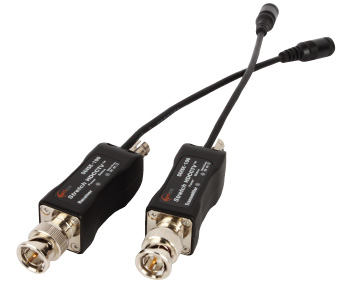

SDISE-100-TR - Miniature Fiber-optic 3G-SDI Module for HDCCTV The OPTICIS 3G-SDI extender, SDISE-100-TR is a miniature, fiber-optic 3G-SDI digital video extender supporting full HD 1080p, 60Hz and designed to transmit multi-rate SDI signal including 3G-SDI (SMPTE-424M), HD-SDI (SMPTE-292M) or DVB-ASI and serial digital video signal (SMPTE-259M) up to 2Km over one (1) ST single-mode fiber.

Using advanced digital fiber optic transmission technology, no user adjustments are required in the mini 3G-SDI extender system, so that SDISE-100-TR enables quick setup and trouble-free operation. SDISE-100-TR can simply extend over the limits such as falloff of video quality, signal delay and maintenance, security problem by distribution, repeater for long-distance transmission in IP base or copper wire system.

- Supports multi-rate SDI up to 3G-SDI over one (1) fiber
- Extends up to 2Km at 3Gbps
- Applicable to both single and multi-mode fibers
- SDI BNC input connector and ST terminated fiber optical connector
- Robust metal die-casting enclosure for harsh environment
