联网
| 支持ISDN连接 |
N |
| IP电话协议 |
SIPv2 ( RFC3261 ), RTP / RTCP |
安全
| 防火墙 |
DoS/DDoS |
| 支持虚拟专用网 |
PPTP, IPSec, L2TP, L2TP over IPSec |
| 虚拟专用网信道数量 |
32 |
| MAC（媒体存储控制）地址过滤 |
Y |
其他功能
| 最大数据传输率 |
0.108 Gbit/s |
| 管理平台 |
CLI / Telnet / SSH |
| xDSL connection |
N |
| USB 端口数量 |
1 |
协议
| 动态主机配置协议客户 |
Y |
| 动态主机配置协议服务器 |
Y |
另外
| 过滤 |
URL, Java Applet, Cookies, Active X |
| 以太网路(RJ-45)连接接口数量 |
4 |

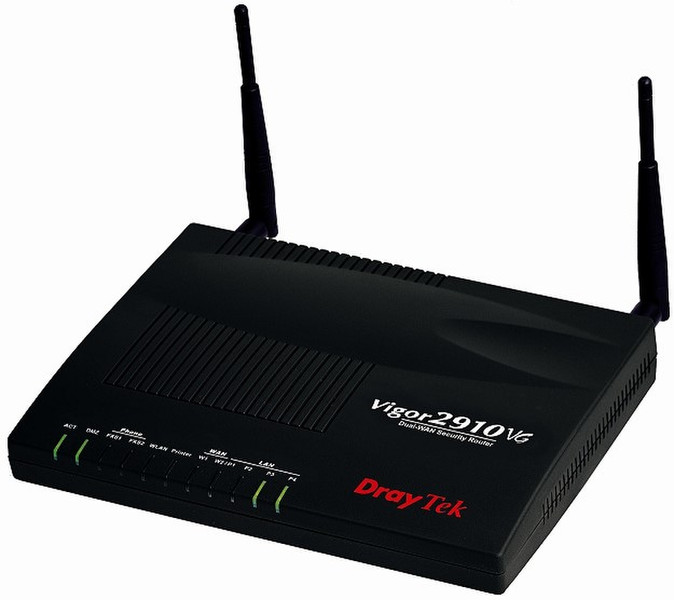

Draytek Vigor 2910VG Dual WAN Security Router
The Vigor 2910 Series is a router firewall provides a great balance of security, VPN, routing and optional VoIP/Wireless facilities. Content filtering helps protect against inappropriate web usage or time wasting using either keyword matching or Surfcontrol web site categorisation (Subject o subscription).
Optional 3G Cellular data increases the product's flexibility too, allowing you to make use of cellular networks for broadband-like HSDPA networks without needing a fixed line. This can be used for backup or your primary Internet feed. Alternatively, a switchable Ethernet port can be used as a secondary WAN port, to a second broadband connection, for example.
The wireless LAN equipped models provide 802.11g connectivity for your laptops or other wirelessly connected PCs. The Vigor 2910 supports several independely levels of wireless security to protect your data. In addition, WDS mode can be used to provide repeating or bridging to a secondary router to increase wireless coverage or set up a secondary remote site (within range) where cables cannot be practically run.
The Vigor 2910's VPN facilities provide up to 16 simultaneous tunnels. These tunnels can be encrypted and authenticated with indistry standard methods, making your data secure as it passes over the public Internet. VPNs are ideal for both remote office linking or teleworker connections to access brand or head office resources.
- Broadband Router & Firewall
- 3G (Cellular) Modem support (Firmware Upgradable)
- Content Filtering (by matched keyword or data type)
- SurfControl Web Site Category Filtering
- Ethernet Virtual LAN segmentation (common/distinct)
- Configurable QoS Features (For traffic prioritisation)
- VPN Dial-in/dial-out (up to 16 tunnels)
- 802.11g Wireless LAN ('G' Model only)
- Selectable Secondary WAN Port for backup
- Twin Voice-over-IP Phone Ports ('V' model only)
- USB Port for Printer sharing or 3G Modem connection
- Highly configurable but easy to install and monitor
