端口 & 界面
FireWire800 |
Y |
USB 连接器性别分类 |
Female |
eSATA端口数量 |
1 |
USB版本 |
3.0 (3.1 Gen 1) |
USB 端口数量 |
1 |
USB 连接器形状 |
USB Type-B |
USB连接 |
Y |
能量控制
电源转换器输出电流 |
8.33 A |
电源转换器频率 |
50/60 Hz |
电源转换器输出电压 |
12 V |
电源转换器输入电压 |
100 - 240 V |
存储介质
可支持的存储驱动器数量 |
4 |
存储驱动器安装类型 |
HDD |
存储驱动器安装数目 |
4 |
安装存储总容量 |
24000 GB |
性能
芯片组 |
JMicron 355 FW800, FW400, Micron 567 |
4 x 6TB, eSATA/2 x FireWire 800/USB 3.0, RAID, 7200 RPM, 3.9 kg
The Ultimate Blend of Professional
Performance and Convenience

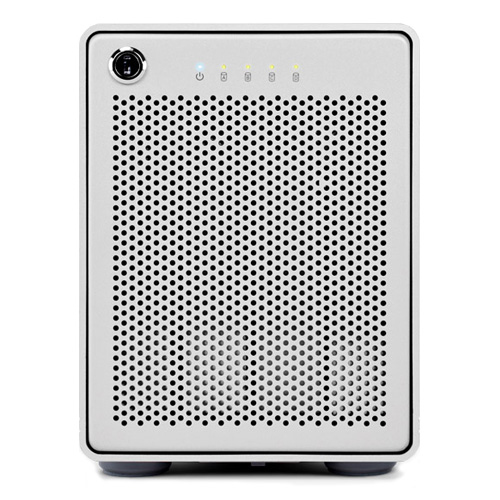

The high-capacity, high-performance Mercury Elite Pro Qx2 was engineered for performance-intensive applications such as HD-video, digital photography, professional music, graphics and backup. Choose between five different RAID levels for the best combination of speed, capacity and redundancy for your needs.
Four 3.5" Serial ATA (SATA I/II) hard disk drives in a brushed aluminum enclosure with Hardware RAID setting flexibility and up to 300MB/s data transfer speed for high performance data storage and redundancy.
User Selectable Hardware RAID Settings
Thanks to a front panel selector switch, the Mercury Elite Pro Qx2 enables easy configuration of the hardware RAID settings to Span, 0, 1, 5, 10, and JBOD/Independent drive modes – so you can select the best combination of speed, capacity, redundancy.
Span
Combines the capacity of two or more drives of the same size without any RAID data distribution scheme into one logical desktop volume. This mode can combine the capacity of varying size drives based on the lowest capacity drive in the set.
RAID 0 (Stripe)
Data is split into blocks over two or more drives at same time for high speed and large capacity.
RAID 1 (Mirror)
Data is written at same time to two drives only for highest level of data safety and redundancy.
RAID 5 (Stripe with Parity)
Data is Striped (RAID 0) while incorporating redundancy over three or more drives for the best combination of speed, capacity, and redundancy. The Multi-Interface 4 Bay Enterprise Class Performance RAID Solutions are pre-configured as RAID 5.
RAID 10 (1+0)
Data is Striped (RAID 0) over two Mirrored sets (RAID 1) of drives for fast redundancy.
JBOD/Independent drive operation
Each drive mounts as an individual volume.
