处理器的特殊功能
英特尔®快速同步视频技术 |
N |
英特尔® 内线™ |
N |
英特尔®64 |
Y |
英特尔® 清晰视频技术 |
N |
英特尔® 双显示功能技术 |
N |
可选用的嵌入式选项 |
N |
英特尔®直接输入/输出硬件辅助虚拟化技术 (Intel® VT-d) |
N |
英特尔® 防盗技术 |
N |
英特尔®超线程技术 |
N |
英特尔®Turbo Boost技术 |
N |
英特尔® 增强暂停状态 |
Y |
英特尔® 我的WiFi技术 |
N |
英特尔®MID清晰视频技术 |
N |
英特尔®vPro™ 技术 |
N |
英特尔®VT-x的扩展页表(EPT) |
N |
英特尔® FDI技术 |
N |
增强型英特尔®SpeedStep动态节能技术 |
Y |
英特尔®基于需求开关 |
N |
英特尔®无线显示(WiDi)技术 |
N |
英特尔®清晰视频高清技术 |
N |
英特尔®快速存储技术 |
N |
英特尔® 快速内存访问 |
N |
英特尔® Flex内存访问 |
N |
执行禁止位 |
Y |
热监测技术 |
Y |
英特尔®可信执行技术 |
N |
处理器封装尺寸 |
37.5 mm |
Processor ARK ID |
39107 |
处理器代码 |
SLGUR |
处理器
无冲突处理器 |
N |
FSB奇偶校验 |
N |
总线频率 |
7.5 |
处理器运行模式 |
64-bit |
步进 |
R0 |
核心的处理器数量 |
4 |
处理器频率 |
2.5 GHz |
外壳温度 |
71.4 °C |
处理器支持 ECC 功能 |
N |
总线类型 |
FSB |
处理器前端汇流总线 |
1333 MHz |
处理器高速缓存类型 |
L2 |
Number of Processing Die Transistors |
456 M |
处理器安装数量 |
1 |
处理器高速缓存 |
4 MB |
处理器光刻 |
45 nm |
散热设计功耗 (TDP) |
95 W |
处理器代号(codename) |
Yorkfield |
内存参数
内存布局 |
2 x 2 GB |
内置存储器 |
4 GB |
内存类型 |
DDR3-SDRAM |
内存时钟速度 |
1333 MHz |
内容包装
包括驱动器 |
Y |
键盘配件 |
Y |
手持式遥控器 |
N |
包括鼠标 |
Y |
包括显示器 |
N |
图像
独立显卡类型 |
NVIDIA GeForce G210 |
显卡适配器内存最大值 |
0.5 GB |
板载图形适配器 |
Y |
存储介质
兼容性内存条 |
CF, Memory Stick (MS), MMC, MS PRO, SD, xD |
总存储容量 |
1024 GB |
集成读卡器 |
Y |
硬盘接口 |
Serial ATA |
端口 & 界面
PS/2连接埠数量 |
2 |
耳机输出端口 |
1 |
S/PDIF输出接口 |
Y |
麦克风/音频输入插孔 |
Y |
eSATA端口数量 |
1 |
HDMI端口数量 |
1 |
VGA(D-SUB)端口数量 |
1 |
DVI端口 |
Y |
其他功能
集成电视调谐器 |
N |
遵守工业标准 |
IEEE 802.11b/g/n |
网路功能 |
Gigabit Ethernet |
SMP(适用于表面安装的封装形式)处理器的最大数量 |
1 |
软盘驱动器的安装 |
N |
图形适配器系列 |
NVIDIA |
联网
无线局域网连接 |
Y |
以太网的数据传输率 |
10, 100, 1000 Mbit/s |
另外
InTru™3D技术 |
N |
以太网连接器 |
Y |
英特尔®AES新指令 |
N |
Processing die size |
164 mm² |

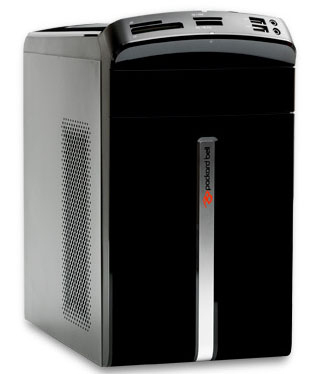

iMedia X4545 GE, Intel Core 2 Quad Q8300, 4GB, DDR3, 1TB, Geforce G210, SATA, DVD SuperMulti, Windows 7 Home Premium
Small and compact
The fashionable design of the imedia combines a sleek glossy-black chassis with matte accents and soft curves highlighted by a glowing blue power on/off button. It is 60 percent smaller than a standard desktop chassis, thus saving space while offering the same power and features of a full-size desktop.
Full of power
The imedia desktop line is driven by a selection of powerful quad-core processors, speedy DDR3 memory, up to 1 TB hard disk drive and an optional Blu-ray Disc™ drive. Peripheral connectivity is made easy via six USB 2.0 connectors, an eSATA port, optional IEEE 1394 port, HDMI™ interface and a multi-in-1 card reader. Stunning graphics and flawless fast-moving visuals are made possible by either NVIDIA GeForce or Intel graphics. Experience high-definition 7.1 surround sound via an S/PDIF connector, view your favorite TV programs using the optional DVBT TV-tuner with remote control, and get access the Internet easily with Wi-Fi connectivity.
Easy to use
Media ports are positioned in front for easy access to multimedia functionalities such as transferring your precious files from a memory card to the imedia hard disk drive. A storage deck on top of the imedia provides a convenient area for placing devices and other items. A smart cable management system hides the tangle of cables, so your desk stays neat.
