显示器
| 显示器尺寸 |
32 " |
| 可视尺寸，横向 |
698 mm |
| 可视尺寸，纵向 |
393 mm |
| 可视尺寸，对角线 |
812.8 mm |
| 长宽比 |
16:9 |
| 数字垂直频率 |
56.2 - 85.1 Hz |
| 数字水平频率 |
31.4 - 75 kHz |
| HD 类型 |
Full HD |
| 响应时间 |
8 ms |
| 原机长宽比 |
16:9 |
| 对比度 |
1000:1 |
| 显示器分辨率 |
1920 x 1080 pixels |
| 视角，水平 |
178 ° |
| 视角，垂直 |
178 ° |
| 显示器亮度 |
400 cd/m² |
| 显示技术 |
IPS |
| HDCP |
Y |
| 3D兼容性 |
Y |
| 显示器 |
LCD |
端口 & 界面
| AC（电源）输入 |
Y |
| 分量视频(YPbPr/YCbCr)输出 |
1 |
| DVI端口 |
Y |
| DVI-D接口数量 |
2 |
| 分量视频(YPbPr/YCbCr)输入 |
1 |
| BNC输入端口 |
1 |
| VGA（D-SUB）端口数量 |
1 |
人体工程学
| VESA 安装支架 |
Y |
| 高度调整 |
N |
| 线缆锁插槽 |
N |
| VESA 安装系统兼容界面 |
200 x 200 mm |
| OSD语言数 |
5 |
| 屏幕显示 （OSD）语言 |
DEU, ENG, ESP, FRE, ITA |
| 屏幕显示 |
Y |
环境条件
| 储存温度范围 (T-T) |
-20 - 60 °C |
| 相对湿度 |
5 - 85% |
重量和尺寸
| 深度 |
114 mm |
| 重量 |
15500 g |
| 宽度 |
776 mm |
| 高度 |
473 mm |
多媒体
| 集成电视调谐器 |
N |
| 内置摄像头 |
N |
| 内置扬声器 |
N |
认证标准
| 认证 |
EN60601-1, EN60601-1-2, CE(MDD) |
另外
| 显示器的颜色数量 |
16.78 million colours |
| 产品色彩 |
Black |
| 显示器对角线（公制） |
81.28 cm |
| 超级视频输入 |
1 |
| RS-232接口 |
1 |
| 以太网连接器 |
N |
| 能源效率等级 |
Unspecified |
| 运行温度范围（T - T） |
5 - 35 °C |
32” 3D IPS LCD, 1920x1080, 16:9, 16.77M, 400cd/m², 8ms, BNC in/out, DVI-D, YPbPr, VGA, S-Video, RS-232C, 15.5kg, Black

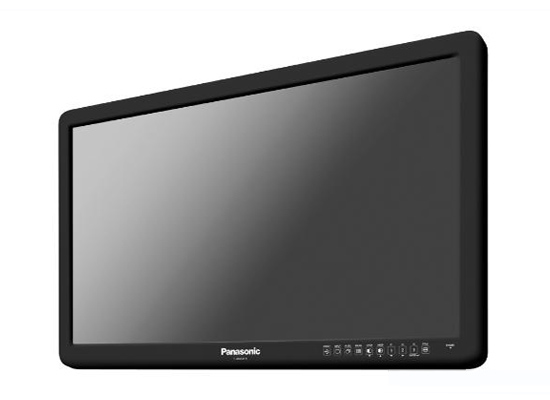

32” 3D LCD medical monitor
This new 3D monitor is fully compliant with medical equipment standards, delivers 2D and 3D image quality and can display multiple images from various sources at once. The Xpol® circular polarizing system used in the EJ-MDA32U-K offers several advantages over linear polarization solutions by maintaining the stereoscopic effect even when the head is tilted to the left or right. This feature enables a natural viewing experience allowing several clinicians or medical students in the O.R. to watch the same 3D display. For increased flexibility, the device also supports multiple 3D formats and inputs and is equipped with the latest evolution of IPS-Pro technology.
