能量控制
| 全年能源消耗 （降温） |
161 kWh |
| 每小时能耗量（制冷） |
0.835 kWh |
| 每小时能耗量（采暖） |
0.840 kWh |
| 全年能源消耗 （采暖）（一般采暖季） |
933 kWh |
| 能源效率等级（降温） |
A++ |
| 能源效率等级（采暖）（一般采暖季） |
A++ |
| 消耗功率（冷却）（最小） |
250 W |
| 消耗功率（冷却）（最大） |
1050 W |
| 消耗功率（加热）（最小） |
190 W |
| 消耗功率（加热）（最大） |
1600 W |
| 电流 |
16 A |
技术细节
| 季节性能效等级（降温）（SEER） |
7.6 |
| 运转温度（采暖）(T-T) |
-15 - 24 °C |
| 制热量，单位为瓦特（额定）（一般采暖季） |
4000 W |
| 除湿能力 |
2 l/h |
| 季节性能效等级（采暖）（SCOP）（一般采暖季） |
4.8 |
| 制冷剂 |
R410A |
| 制冷能力 - 瓦特（额定功率） |
3500 W |
| 制冷瓦量（最小） |
850 W |
| 制冷瓦量（最大） |
4000 W |
| 制热瓦量（最小） |
800 W |
| 制热瓦量（最大） |
6000 W |
| 制冷量（最小） |
2900 BTU/h |
| 制冷量（最大） |
13650 BTU/h |
| 软管长度（最大） |
15 m |
| 逆变器技术 |
Y |
| 制冷介质重量 |
1150 g |
| 负离子空气净化器 |
N |
| 运转温度（制冷）(T-T) |
-10 - 43 °C |
| 一拖多分体 |
N |
| Timer |
Y |
| 类型 |
Split system air conditioner |
室内单元
| 室内机深度 |
255 mm |
| 室内机高度 |
295 mm |
| 室内机宽度 |
870 mm |
| 噪音水平（室内单元） |
58 dB |
| 室内机重量 |
10000 g |
| 冷却空气流（室内单元） |
804 m³/h |
| 加热气流（室内单元） |
822 m³/h |
| 室内机类型 |
Wall-mountable |
| 室内机数量 |
1 |
室外单元
| 室外机宽度 |
824 mm |
| 室外机深度 |
299 mm |
| 室外机高度 |
619 mm |
| 室外机重量 |
35000 g |
| 加热气流（室外单元） |
2160 m³/h |
| 冷却空气流（室外单元） |
2106 m³/h |
| 室外机数量 |
1 |
| 噪音水平（室外单元） |
65 dB |

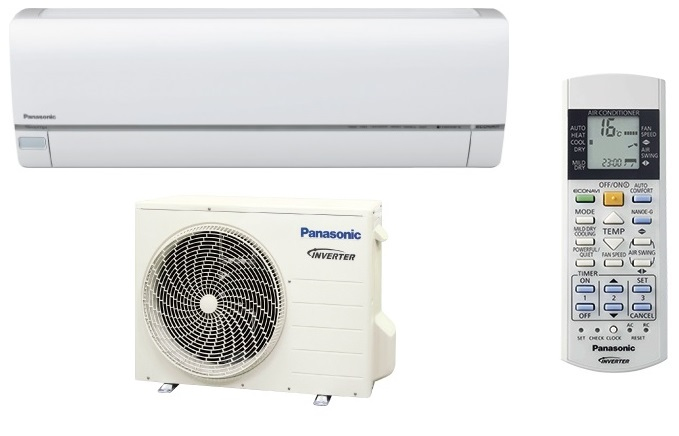

Split system, 3.5kW Cooling capacity (11950 BTU/h), 4.0kW Heating capacity, 2.0L/h, Energy efficiency class A++/A++, R410A, INVERTER+, White
Etherea with enhanced Econavi sensor and new Nanoe-G air-purifying system: outstanding efficiency, comfort and healthy air combined with state-of-the-art design.
Econavi features an in-built human activity sensor and a new sunlight detection technology to adjust output thereby giving you the best comfort at anytime whilst saving energy. Econavi not only optimizes air flow orientation and volume according to human presence, it also reduces cooling power automatically by no/less sunshine. With Econavi, energy savings of up to 38% are possible, whilst increasing your comfort. Furthermore, the Nanoe-G revolutionary air-purifying system utilises nano technology fine particles to remove and deactivate 99% of both airborne and adhesive micro-organisms like bacteria, viruses and mould.
- New! This units can be installed on R22 pipings
- Maximum efficiency and comfort with Econavi, now with sunlight detection
- Nanoe-G air purifying system, 99% effective on both airborne and adhesive mould, viruses, bacteria and pollen allergen
- Optional smartphone control
- Mild Dry Cooling: prevent a rapid decrease in room humidity
- Super Quiet! Only 20 dB, equivalent to night-time in the countryside (E7, E9 and E12)
- More powerful airflow to quickly reach the desired temperature
HEALTHY AIR
- Nanoe-G air purifying system
- Mild Dry Cooling operation mode for increased comfort and prevention of skin moisture loss
ENERGY, EFFICIENCY AND ECOLOGY
- Maximum efficiency Inverter system, for bigger savings
- -45% consumption with Econavi on heat pump, and -38% on cooling mode
- R410A refrigerant gas
COMFORT
- Super Quiet mode (from 20 dB)
- Powerful mode
- Uniform dispersion of airflow
- Automatic vertical airflow control
- Hot start mode, increased comfort on heat pump mode, no cool airflow when process starts
- Automatic restart after power cut
EASE OF USE
- Real time clock with dual ON&OFF timer
- User friendly infrared remote control
- Optional wired weekly timer with 6 settings per day and 42 settings per week
- Connectivity function (indoor unit equipped with PCB port which can be connected to outside network)
- Optional Smartphone control
EASY INSTALLATION AND MAINTENANCE
- NEW! Heating only function by enabling software (only by service partner)
- Removable, washable panel
- 15 m maximum connection distance
- 15 m maximum elevation difference
- Maintenance access through the top panel of the outdoor unit
- Self-diagnosis function
