卫星音箱
| 卫星音箱数量 |
4 |
| 卫星功率有效值 |
125 W |
| 卫星扬声器阻抗 |
3 Ω |
超低音音箱
| 超重低音功率有效值 |
250 W |
| 超重低音炮阻抗 |
6 Ω |
| 超重低音扬声器类型 |
Passive subwoofer |
中置扬声器
| 中央扬声器阻抗 |
6 Ω |
| 中央扬声器电源 |
250 W |
重量和尺寸
| 前置扬声器尺寸（宽 x 深 x 高） |
255 x 255 x 1023 mm |
| 中央扬声器重量 |
1060 g |
| 超重低音炮重量 |
4600 g |
| 超重低音扬声器尺寸（宽x深x高） |
180.5 x 351 x 322 mm |
| 中置扬声器尺寸（宽x深x高） |
424 x 59 x 76 mm |
| 前扬声器重量 |
2300 g |
其他功能
| 环绕扬声器尺寸（宽x高x深） |
255 x 255 x 1023 mm |
| 环绕扬声器重量 |
2300 g |
| HDMI端口数量 |
1 |
光盘驱动器
| 包含DVD播放器/录音机 |
DVD player |
| 光盘类型支持 |
BD-R, BD-R DL, BD-RE, BD-RE DL, BD-ROM, CD, DVD-R, DVD-R DL, DVD-RAM, DVD-RW |
音频
| 音频系统 |
Dolby TrueHD, Dolby Digital Plus, Dolby Digital |
| 均衡器 |
Y |
| 总谐波失真 |
10% |

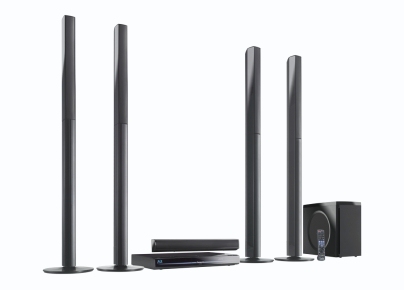

Blu-ray Disc Home Cinema System
Slim-type speaker box reduces unwanted reflection from the baffle, and brings out high quality pure direct sound. With bamboo cone speaker, Vocals are more pure and clearer, and the dialogue being crisper and easier to understand than ever before.
By using combination of real speakers and virtual speakers, the listener is encircled by surround speakers and more natural and smoother surround can be enjoyed especially in action scenes such as car chase scene, as if you are sitting in the centre of the theatre.
PHL Reference Chroma Processor Plus is a high quality image-processing technology developed by Panasonic to precisely process each pixel of the Blu-ray DiscTM video signal in the vertical direction. It reproduces colour data with twice the accuracy of conventional systems to keep colours faithful and sharp.
High precision 4:4:4 signal technology processes each pixel of the Blu-ray Disc™ video signal in the horizontal direction to complement vertical direction processing. When viewed on a high end VIERA TV model, which features 4:4:4 signal compatibility, it recreates images with the original film quality to further enhance movie enjoyment.
SC-BT735 is compatible with a new feature of ARC (Audio Return Channel). ARC allows receiving audio signals from the TV, on top of the preexisting HDMI function of sending audio/video signals to the TV with just one cable. This new feature will simplify the connection by eliminating an audio cable connection between TV audio output and main unit’s audio input. * ARC compatible TV is required.
