端口 & 界面
| PC音频 |
Y |
| HDMI端口数量 |
2 |
| 分量视频(YPbPr/YCbCr)输入 |
3 |
| DVI-D接口数量 |
1 |

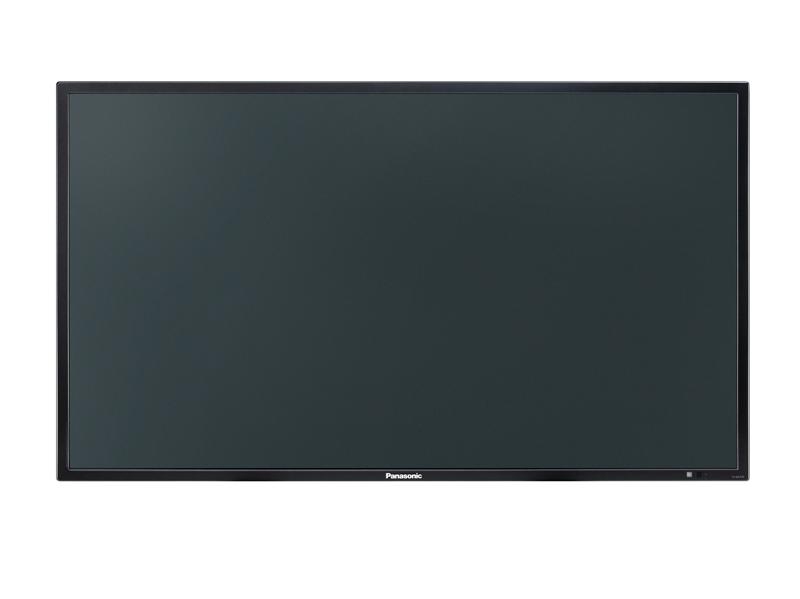

1080p Full HD Professional LCD Display,Slim Design, 106.68 cm (42 ") , HD (1920x1080), 2x HDMI, Black
700 cd/m2 High Brightness
LF20 Series have a high brightness of 700 cd/m². And they feature an IPS panel with full-HD resolution and a wide-viewing angle. They display clear images even in bright locations, and transmit information accurately.
Tough Panel for Signage Use
This rugged liquid crystal display panel strongly resists afterimages and soiling to provide the long-time display durability that is essential for signage use.
Wide Viewing Angle for Sharper Images
The IPS panel has a wide viewing angle, so colors don't change when the image is viewed from right or left angles. Information can be accurately relayed to groups of people in large areas, like public spaces.
Flexible, Vertical Installation
The display can be installed either horizontally or vertically to match the content and installation location without being affected by “Mura” (unevenness). This is because the display has relatively uniform pressure distribution as compared to a TV panel, which results in far better stability. Regardless of the installation direction, the lamp life stays the same since a constant operating temperature is maintained.
Dust-Resistant, Fanless Design
While raising heat dissipation efficiency, the unique Panasonic fanless design resists dust entry and lowers operating noise. Dust particles are not sucked inside, so the display can be installed just about anywhere.
Built-in Speakers
10-watt (5w + 5w) speakers are built-in to the left and right sides of the rear panel. This eliminates the need to attach external speakers when sound is required, for quick and easy installation.
A Slim 101 mm (4.0 inches) Panel Thickness and 18 mm (0.7 inch) Bezel
A simple design with a slim bezel of approximately 18 mm(0.7 inch) and thickness of only 101 mm(4.0 inches) facilitates signage applications by enabling installation just about anywhere. In fact, with the thinnest part measuring only 52 mm(2.0 inches) , the display looks even slimmer than it is. This prevents it from appearing large and oppressive when suspended from the ceiling. The slim bezel also enhances this thin appearance and improves image visibility.
