端口 & 界面
| DVI端口 |
Y |
| 以太网的数据传输率 |
10, 100 Mbit/s |
| VGA（D-SUB）输入端口 |
1 |
| DVI-D接口数量 |
2 |
| USB 端口数量 |
1 |
| USB版本 |
2.0 |
| HDMI端口数量 |
2 |
| 分量视频(YPbPr/YCbCr)输入 |
1 |
显示器
| 有效显示区域（宽×高） |
927 x 521 mm |
| HD 类型 |
Full HD |
| 原机长宽比 |
16:9 |
| 显示类型 |
LCD |
另外
| 以太网路(RJ-45)连接接口数量 |
1 |
| 以太网连接器 |
Y |

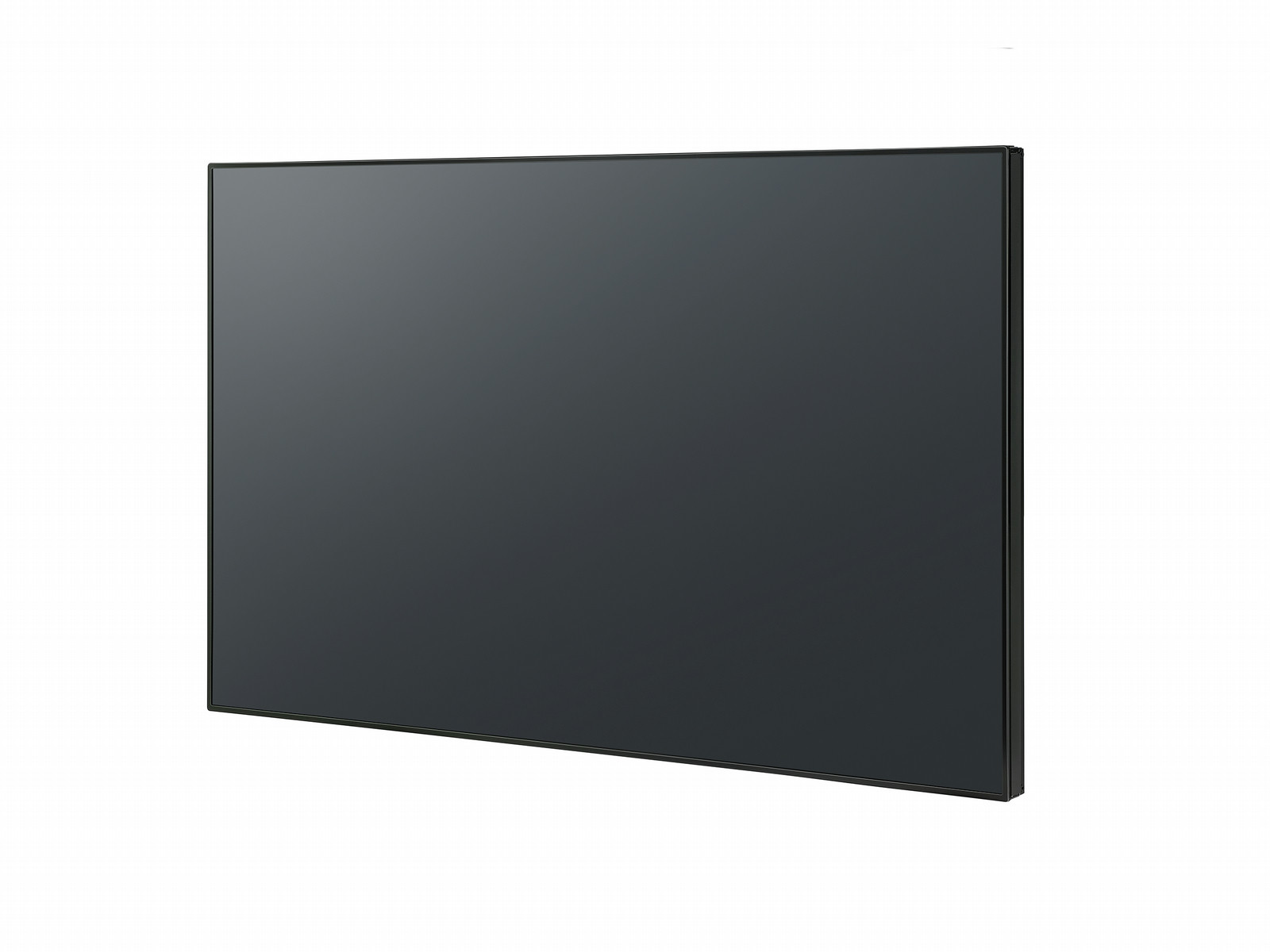

106.68 cm (42 ") LCD, FHD, IPS, 16:9, HDMI, DVI-D, 3.5 mm, USB, LAN, 155 W, RMS 20 W, 947 x 541 x 72 mm
Featuring Industrial Durabilitfaiy and Reliability, as well as a Stylish Appearance This stylish design blends in with surrounding spaces and fills the screen with images. The 6.3 mm (0.25") bezel width of the LF80U Series is less than half the 16 mm (0.7") bezel width of the LF60U Series. And the slim design makes the depth only 57 mm (2.3"). Since the LF80U Series blends in with almost any surroundings and the screen is nearly filled with images, this display has a powerful, eye-catching impact.
STYLISH DESIGN AND HIGH VISIBILITY Featuring Industrial Durabilitfaiy and Reliability, as well as a Stylish Appearance This stylish design blends in with surrounding spaces and fills the screen with images. The 6.3 mm (0.25") bezel width of the LF80U Series is less than half the 16 mm (0.7") bezel width of the LF60U Series. And the slim design makes the depth only 57 mm (2.3"). Since the LF80U Series blends in with almost any surroundings and the screen is nearly filled with images, this display has a powerful, eye-catching impact. unable to display
Brightness for Displaying Easy-to-See Content in Bright Places Performance with 700 cd/m² of brightness is required for some signage and other professional applications. This allows images to be beautifully displayed even in large, brightly lit spaces, such as train stations and airports.
The IPS Panel Has a Wide Viewing Angle and Minimal Color Fluctuations There is very little change in color, compared with the VA panel, when the screen is viewed at right or left angles, so the images are crisp and clear. This is ideal for providing correct information to places with a lot of people present, such as public spaces and facilities.
Choose the Installation to Match Your Application The LF80U Series is designed for use in either portrait or horizontal orientation with no effect on panel color and lifespan, further reducing TCO. A tilt installation up to 45 degrees forward or backward is also possible. The angle can be adjusted for easy viewing when installed in a high location.
Media Player for Simple Signage Use Without an STB The LF80U Series features a USB media player. Signage operation is possible by simply inputting the desired content via USB, eliminating the need for a set-top box. Both videos and still images can be displayed, so a wide variety of original signage content can be used.
