端口 & 界面
| PC音频 |
Y |
| DVI端口 |
Y |
| RS-232C |
Y |
| USB端口 |
N |
| HDMI端口数量 |
2 |
| 分量视频(YPbPr/YCbCr)输入 |
1 |
| DVI-D接口数量 |
2 |
显示器
| 有效显示区域（宽×高） |
1039 x 584 mm |
| HD 类型 |
Full HD |
| 显示类型 |
LED |
性能
| 面板寿命 |
60000 h |
| 多显示器支持 |
Y |
| 屏幕显示 |
Y |
另外
| 以太网路(RJ-45)连接接口数量 |
1 |
| 以太网连接器 |
Y |

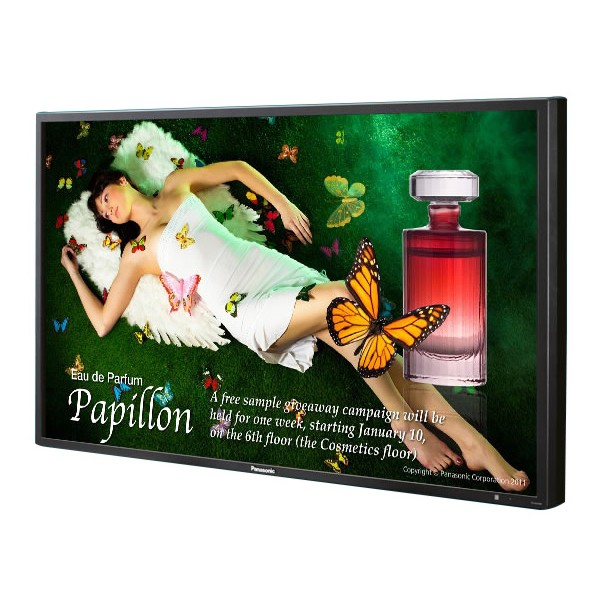

119.38 cm (47 ") (1192 mm) LED, 1920 x 1080, 16:9, 700 cd/㎡, 1300:1, 12 ms, 178°/178°, HDMI x 2, RJ45, DVI-D x 2, PC IN, 10 W
Professional LCD Display with high brightness and excellent picture quality
High-brightness 700-cd/m2 models with wide-viewing-angle IPS panel and LED backlight
The IPS panel provides the wide viewing angle and 700-cd/m2 brightness required for signage and other professional applications. Images are beautifully displayed even in large, brightly lit spaces such as train stations and airports. Information is clearly transmitted with highly detailed Full-HD quality, so the signage content is easy to understand.
DIGITAL LINK function enables simple installation and low system costs
Using DIGITAL LINK makes it possible to transmit video, audio and control signals over a long distance (up to 100 m [328.1 ft]) with a single LAN cable. Easy cabling also reduces labor during setup. This provides transmission of high-quality images and sounds, as well as remote control.
Continous 24/7 operation
The highly durable panel can be operated continuously for 24/7. It makes the display panel suitable for use all day and night in places such as restaurants and transportation facilities.
Fan-less Design
The fan-less design prevents malfunctions otherwise caused by dust particles brought in by the fan. This enables safe installation in crowded areas.
Flexible, Vertical Installation
The display can be installed either horizontally or vertically to match the content and installation location without being affected by “Mura” (unevenness). This is because the display has relatively uniform pressure distribution as compared to a TV panel, which results in far better stability. Regardless of the installation direction, the lamp life stays the same since a constant operating temperature is maintained.
Stylish Slim Design
The slim display, only 68 mm (2.7") in depth, and a narrow bezel of about 16 mm (0.7") achieve a stylish design, light weight, and thin profile.
Built-in Speaker
The speaker is built into the rear of the display. There is no need for external speakers when using content that has a soundtrack.
