显示器
| 可视尺寸，对角线 |
1268 mm |
| HD 类型 |
Full HD |
| 屏幕格式调整 |
4:3, 13:9, 14:9, 16:9 |
端口 & 界面
| PC机(D型接口) |
Y |
| DVI端口 |
Y |
| 分量视频(YPbPr/YCbCr)输入 |
3 |
| HDMI端口数量 |
1 |
能量控制
| 功耗（睡眠模式） |
0.3 W |
| 接受频率 |
50/60 Hz |
| 功耗（最大） |
390 W |
另外
| RS-232接口 |
1 |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

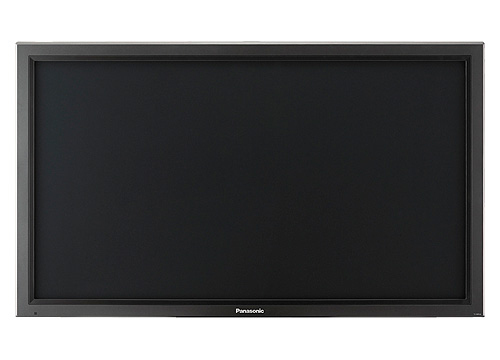

TH-50BT300ER - 50'', 16:9, 1920x1080, 5000000:1
Faithful Colour Reproduction with the High-Performance Professional-Grade Engine
The professional-grade engine features 10-bit processing with YUV 4:4:4 for each channel. By faithfully reproducing all of the colour and luminance signals output by image sources, it produces smooth, vibrant colours across the entire screen.
Bi-level Drive Technology Smoothly Displays Dark Areas
Improving the luminous efficiency of the panel has achieved steady illumination even with a small electrical discharge. By reducing the minimum unit of brightness per flash by 1/2 compared to previous panels, this makes it possible to display finer gradation steps. Smoother tonal expression is gained in dark areas thanks to a total of 12,288 steps, twice the number of our conventional models (compared with the PF20 Series).
The Wide Colour Gamut Panel Reproduces Colours That Professional Applications Demand
The BT300 Series offers superb images with stunning colours for displaying materials in all their natural beauty. Six modes are provided, including the colour gamut modes for broadcasting and post-production use including (SMPTE-C/EBU/BT.709) and Digital Cinema Colour and Native. Custoum mode allows you to set the hue for each RGB colour while viewing a simplified chroma diagram.
Wave Form Monitor
This function displays the waveform for the brightness and colour levels of input signals from other video devices, for easy monitoring.
HV Delay Display
This function delays the synchronisation signals for horizontal and vertical positioning to display the image blanking intervals.
