端口 & 界面
| 遥控器（IR）输出 |
1 |
| PC音频 |
Y |
| DVI端口 |
Y |
| 遥控器（IR）输入 |
1 |
| 以太网的数据传输率 |
10, 100 Mbit/s |
| RS-232C |
Y |
| HDMI端口数量 |
2 |
| VGA（D-SUB）输入端口 |
1 |
| 复合视频 |
1 |
| DVI-D接口数量 |
1 |
| USB 端口数量 |
1 |
设计
| 边框宽度（顶部） |
13.9 mm |
| 边框宽度（底部） |
14.9 mm |
| 倾斜调整 |
Y |
| 倾角 |
0 - 20 ° |
显示器
| 有效显示区域（宽×高） |
1428 x 803 mm |
| HD 类型 |
Full HD |
| 原机长宽比 |
16:9 |
| 显示类型 |
LED |
技术细节
| 面板类型 |
VA |
| LED背光类型 |
Direct-LED |
性能
| 面板寿命 |
50000 h |
| 多显示器支持 |
Y |
| 集成电视调谐器 |
N |
| HDCP |
Y |
| 营业时间（小时/日） |
16/7 |
另外
| 以太网路(RJ-45)连接接口数量 |
1 |
| 以太网连接器 |
Y |

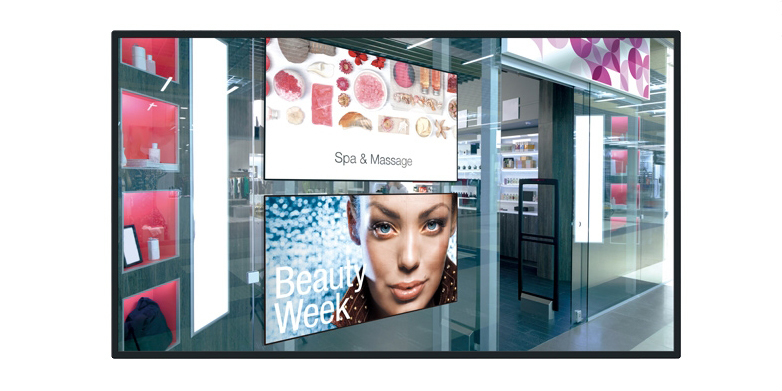

165.1 cm (65 ") , 1920x1080, 16:9, 8 ms, VA, 2x HDMI, DVI-D, RS-232C, RJ-45, USB, 20 W RMS, 1459 x 82 x 835 mm
Stylish LED backlight entry flat panel
Offering high level of efficiency and easy connectivity for a wide range of applications from digital signage, corporate and education
Slim Design for any Interior Design Scheme
The narrow frame and slim design draw attention to the image. And the flat-panel form does not feel oppressive when mounted on the wall. The High-Visibility IPS Panel makes images easier to see and boosts the signage effect.
Simple Signage Based on USB Memory
Built-in USB Media Player
It enables video and still-image playback via USB without set-top box or pc
A USB media player is built right into the display, so you simply insert a USB memory stick for automatic video and still-image playback. Signage can be easily created without requiring a set-top box or a PC. You can also compile scenario files to designate the playback order and time. And you can freely revise both the content and display schedule* .
Quick and Easy Signage
The USB media player features synchronized playback on multiple displays. The content can be rewritten via a LAN network, so you can even mount the displays at a distance.
A Cloning Function
When installing multiple displays, the Cloning function lets you use USB memory to copy the settings of a master display, thus greatly shortening the set-up time.
The Cloning function works only for displays with the same screen size, Depending on the type of a USB memory device, it may come in contact with the periphery such as a back cover, and cannot be attached. Use a commercially sold extension cable, or use a small type of a USB memory device connectable to this unit.
Multi Monitoring & Control Software Also Supported
The EF1 Series is compatible with Multi Monitoring & Control Software, which makes it possible to monitor and control up to 2048 displays with a single PC via a LAN network. This is highly effective for large-scale signage systems. In addition, systems that include Early Warning Software (optional) give you even more detailed display data, for greater monitoring and control convenience.
Stylish Design with Excellent Visibility
- Efficient High-Visibility Panel with 350 cd/m2 Brightness
- IPS Panel for Clear Off-Axis Visibility and Excellent Colour Reproduction
- Reliable and Cost-Effective Visual Communication Solution for Retail, Public Spaces, Showrooms, Meeting Rooms, and Classrooms
