端口 & 界面
PC音频 |
Y |
DVI端口 |
Y |
Mini VGA (D-Sub) 输入口 |
1 |
HDMI输入 |
1 |
RS-232C |
Y |
DVI-D接口数量 |
1 |
USB 端口数量 |
1 |
USB版本 |
2.0 |
HDMI端口数量 |
1 |
设计
边框宽度(顶部) |
14.8 mm |
边框宽度(底部) |
14.8 mm |
显示器
有效显示区域(宽×高) |
1649 x 927 mm |
HD 类型 |
Full HD |
原机长宽比 |
16:9 |
显示类型 |
LCD |
技术细节
面板类型 |
IPS |
纵向模式 |
N |
LED背光类型 |
Edge-LED |
USB 连接器形状 |
USB Type-A |
性能
面板寿命 |
50000 h |
HDCP |
Y |
营业时间(小时/日) |
16/7 |
无线局域网连接 |
N |
另外
以太网连接器 |
Y |
以太网路(RJ-45)连接接口数量 |
1 |

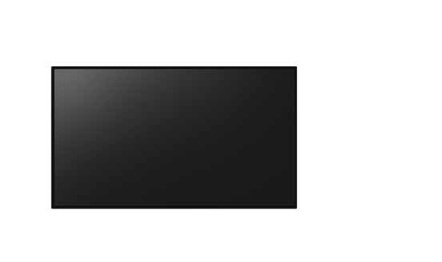

IPS, LCD, 190.5 cm (75 ") , Edge-LED, 1920 x 1080, Full HD 16:9, 410cd/m², 50000h, 16/7
Slim Design for any Interior Design Scheme
The EF1 Series have a narrow bezel for a slim design that accents the image on the screen. And the flat-panel form doesn't feel oppressive when mounted on the wall. The TH-75EF1 has a 14.8 mm (0.6″) (L/R/T/B) width bezel.*1 The depth of the TH-84EF1 is 78 mm (3.1″), and the depth of the TH-75EF1 is 77 mm (3.0″), which both comply with the ADA Standard,*2 making them ideal for installation in public spaces.
Wide Viewing Angle for a Greater Eye-Catching Effect
The high-visibility IPS panel makes images easier to see and boosts the signage effect twith minimal color shift.
The display also offers easy-to-see images for meetings, so it enables smooth sharing of information among all members.
The Display has a Built-in USB Media Player
The EF1 Series can automatically start showing pictures when a USB memory containing data is inserted. The display unit can be used as digital signage without a set-top box or PC. And the content can be displayed smoothly without including the black screen display. What's more, the order of content playback and playback time can be programmed Content can also be rewritten and multiple displays can be operated via LAN.*
Multi Monitoring & Control Software (Free) Lets You Control Devices in Groups
This free Panasonic software enables you to monitor and control up to 2048 devices over a LAN network from a single PC. It facilitates the control of multiple devices used in a facility or store.
Timer-Programmable Switching of Device Connection
The timer function of the display unit can be used to change connected signal source devices at a desired time.
This allows an easy change of displayed content according to the application or the progress of an event.
Smooth Switching of Presenters
The TH-84/75EF1 automatically switches source signals when the input signal for the current content stops or when an input signal other than the signal of the current content is received. When presenters change during a meeting, the displayed image can be switched easily by simply changing the cable connection, thus eliminating the need to operate the remote control.
A Wealth of Connection Terminals for Easy Replacement of Existing Display
A wealth of connection terminals are provided not only for use in meetings but also for use as digital signage, so existing systems can be replaced easily with the Panasonic displays. The display units accept 59 types of PC signals to rank at the top in the industry in terms of signal compatibility.
Built-in Speakers for the Playback of Content with Sound
The display unit has built-in speakers so that it can play back
content with sound without the connection of external speakers. This allows maximum use of a limited space for the installation of a large-screen display.
Cloning Function Speeds Up Multiple Display Setup
When installing multiple displays, the Cloning function lets you use a USB memory to copy the settings of a parent display to other units, thus greatly shortening the setup time.
Customizable Original Screen
An original image created by your company or other desired picture can be displayed when the unit is turned on and when there is no input signal.
The image data for the original screen can be transferred and stored in the display unit via a USB memory. This function allows a company logo mark, brand image, etc., to be displayed when there is no input signal.
Supports LAN Control Connection
The EF1 Series can be controlled by LAN or RS-232C. You can configure the display into your existing control system, and you can control several devices simultaneously. It also supports AMX or Crestron Connected™ LAN control.
