端口 & 界面
| 遥控器（IR）输出 |
1 |
| PC音频 |
Y |
| DVI端口 |
Y |
| 遥控器（IR）输入 |
1 |
| 以太网的数据传输率 |
10, 100 Mbit/s |
| DVI-D接口数量 |
1 |
| RS - 232接口 |
Y |
| USB版本 |
2.0 |
| HDMI端口数量 |
2 |
| USB 端口数量 |
1 |
显示器
| 有效显示区域（宽×高） |
1860 x 1046 mm |
| HD 类型 |
Full HD |
| 原机长宽比 |
16:9 |
| 显示类型 |
LED |
技术细节
| 遥控器电池 |
AA |
| LED背光类型 |
Edge-LED |
性能
| 面板寿命 |
50000 h |
| 多显示器支持 |
Y |
| HDCP |
Y |
另外
| 以太网路(RJ-45)连接接口数量 |
1 |
| 以太网连接器 |
Y |

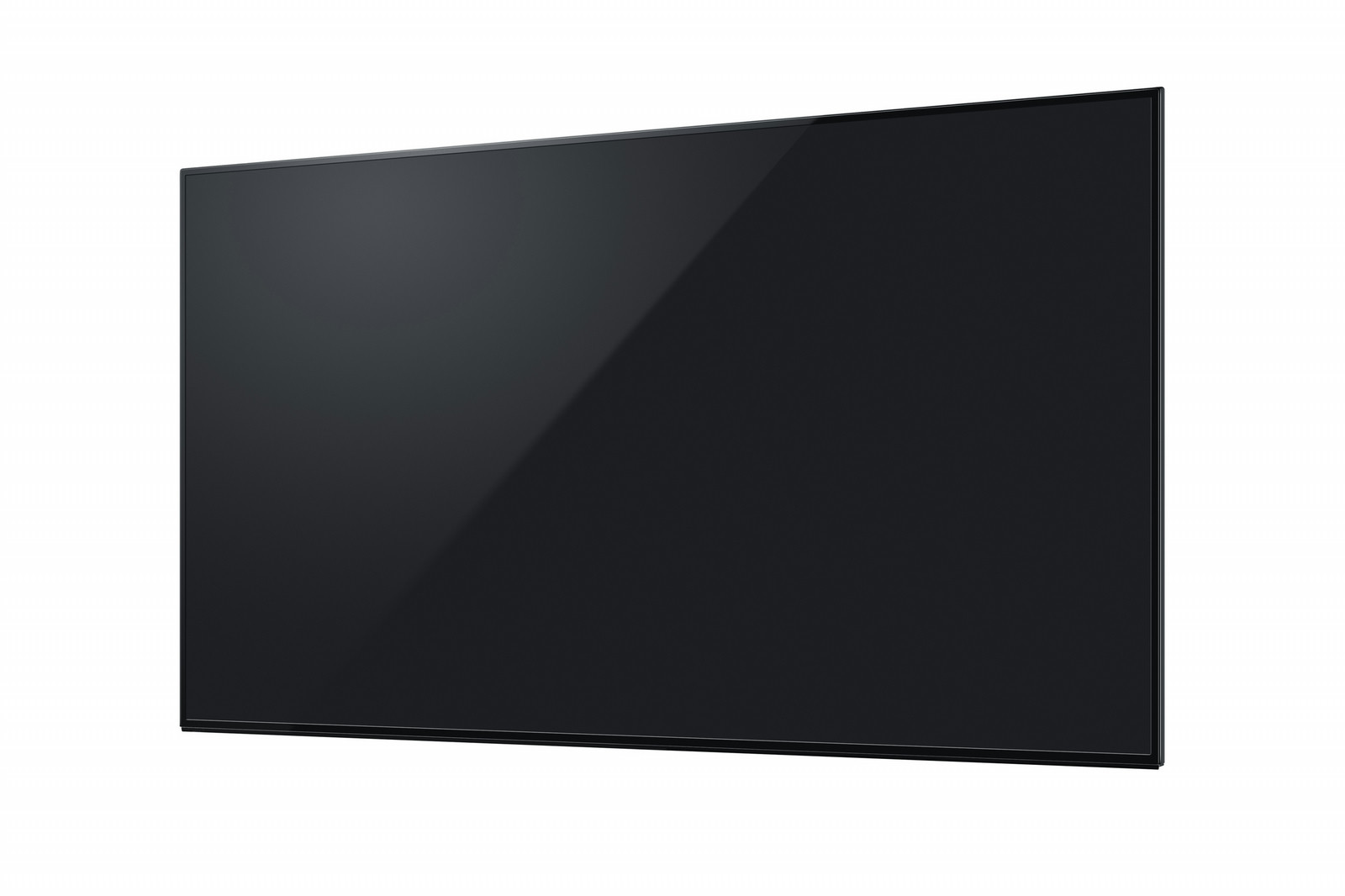

213.36 cm (84 ") , 16:9, IPS, 1920 x 1080, 350 cd/m², 5 ms, HDMI, DVI-D, Mini D-sub, USB, RS-232C, RJ-45, 2x 10 W, 1910 x 78 x 1102 mm, 65 kg
Simple and Flexible Media Signage
- Built-in USB Media Player Enables Video and Still-image Playback via USB without Set-top Box or PC
- USB Media Player Features Synchronized Playback on Multiple Displays via USB and LAN
- USB Cloning Function Allows Settings to Be Copied and Shared Between Displays
- Free Multi Monitoring & Control Software to Operate Multiple Displays and Projectors via PC (Supports Up to 2048 Devices)
- Multi Monitoring & Control Software Features Content List Distribution Function to Distribute Content via Network, Enable Content Rewriting and Display Scheduling
- Supports Early Warning Software
Extensive Connectivity for Professional Use
- Choice of Input Terminals: 2 x HDMI, DVI-D, PC In, Video In, USB
- Selection of Professional Interfaces (LAN, RS-232C) for External Control
- IR (Infrared Signal) In/Out Function for Simultaneous Control of Multiple Displays In Daisy-Chain Configuration
- Compatible with 59 PC Corresponding Signal Types
- 5 V/1 A Charging USB Terminals to Power Streaming Dongles
- Supports LAN Control with AMX or Crestron Connected™ Compatibility
- Power Management Function to Reduce Power Consumption
- 10 W + 10 W Built-in Speakers
Stylish Design with Excellent Visibility
- Efficient High-Visibility Panel with 350 cd/m² Brightness
- IPS Panel for Clear Off-Axis Visibility and Excellent Color Reproduction
- Reliable and Cost-Effective Visual Communication Solution for Retail, Public Spaces, Showrooms, Meeting Rooms, and Classrooms
- Narrow Bezel Width of 0.89″(L/R)
- (TH-84EF1) for Clear Visibility
