显示器
显示器尺寸 |
15 " |
触摸屏技术 |
Capacitive |
显示器分辨率 |
1024 x 768 pixels |
显示器亮度 |
350 cd/m² |
触摸屏 |
Y |
处理器
处理器高速缓存 |
4 MB |
处理器线程数 |
4 |
核心的处理器数量 |
2 |
处理器频率 |
2.7 GHz |
联网
以太网的数据传输率 |
10, 100, 1000 Mbit/s |
端口 & 界面
PoweredUSB 介面 |
Y |
DC-IN插口 |
Y |
USB 3.0(第 1代3.1)Type-A 端口数量 |
4 |
VGA(D-SUB)端口数量 |
1 |
内存参数
内存插槽类型 |
SO-DIMM |
內存插槽数量 |
2 |
内存类型 |
DDR4-SDRAM |
最大内部存储 |
32 GB |
内置存储器 |
4 GB |
存储介质
硬盘容量 |
500 GB |
总存储容量 |
500 GB |
存储介质类型 |
HDD |
重量和尺寸
深度 |
237 mm |
宽度 |
360 mm |
高度 |
335 mm |
环境条件
储存温度范围 (T-T) |
-20 - 60 °C |
运行湿度范围(H-H) |
15 - 80% |
储存相对湿度范围(H - H) |
15 - 80% |
另外
产品色彩 |
Black |
RS-232接口 |
2 |
以太网连接器 |
Y |
以太网路(RJ-45)连接接口数量 |
2 |
运行温度范围(T - T) |
0 - 40 °C |
Intel Core i3-6100TE, 38.1 cm (15 ") 1024 x 768 LED, 4GB DDR4, 500GB HDD, 2 x RJ-45, 4 x USB 3.0, 1 x 3W speaker (internal)

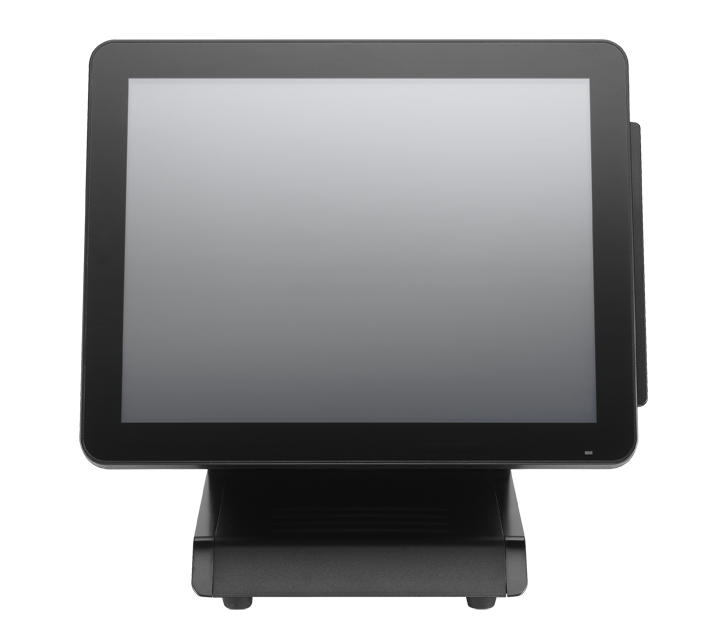

The SP-1060 POS terminal gives forward-thinking businesses options for speed, endurance, and performance now as well as the ability to add IoT solutions and new applications as technology advances and consumer trends change.
- Fanless design from Celeron all the way to i7 CPU (Celeron/i3/i5/i7)
- Rear cover Aluminum Die-Casting construction for exceptional thermal dissipation
- Future proof with support up to 2 signage Displays and compatible with iAMT (IOT Advance)
- Latest DDR4 memory and SATA 3.0 support, maximized the access speed and efficiency
- Supports USB 3.0
- Dual LAN design supports a wide variety of network configurations
