技术细节
频带 |
1125 - 1525 MHz |
增益 |
7 dB |
MoCA Amplifiers
Ultra-low noise amplification & built-in LPF filter so MoCA stays in the house

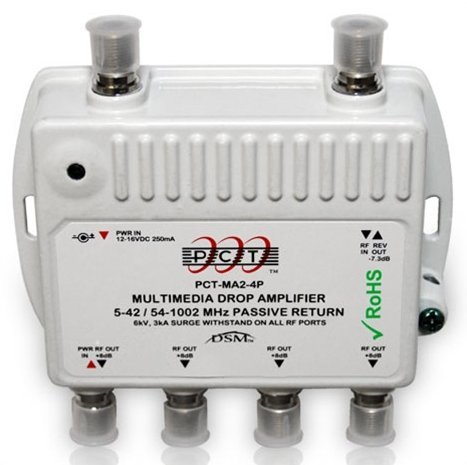

PCT’s multimedia MoCA drop amplifier series provide ultra-low noiseamplification of broadband signals for subscriber drop installations, and thebuilt-in LPF filter ensures the MoCA signals (1125 to 1525 MHz) are constrainedto the home network
Features and Benefits
- Integrated MoCA filter
- Keeps MoCA signals within the home network and blocks them from going up the drop
- Reduces the loss of MoCA passband frequencies (1125 to 1525 MHz) within the in-home network
- Patented DSM seizure technology provides increased spring retention for better surface contact
- Patented design to increase spring retention for better surface contact-even after repeated entry across maximum to minimum center conductor diameters
- Gold-plated, beryllium copper construction for better corrosion resistance, impedance matching, and less common path distortion
- Drop amplifiers available in the following configurations:
- Single output with passive reverse
- Single output with active reverse
- Four outputs with passive reverse
- RoHS Compliant
- F-Port is 60 in-lbs tightening and loosening
