显示器
| 显示器尺寸 |
18.5 " |
| 长宽比 |
16:9 |
| HD 类型 |
HD |
| 响应时间 |
5 ms |
| 原机长宽比 |
16:9 |
| 对比度 |
1000:1 |
| 显示器分辨率 |
1366 x 768 pixels |
| 视角,水平 |
170 ° |
| 视角,垂直 |
178 ° |
| 像素 |
0.294 x 0.294 mm |
| 显示器亮度 |
250 cd/m² |
| 3D兼容性 |
N |
| 显示器 |
LCD |
人体工程学
| 备用的液晶显示器 |
Y |
| VESA 安装支架 |
Y |
| 液晶显示器功率 |
Y |
| VESA 安装系统兼容界面 |
100 x 100 mm |
| 液晶显示器指示灯 |
Y |
| OSD语言数 |
3 |
| 屏幕显示 (OSD)语言 |
DEU, ENG, KOR |
| 屏幕显示 |
Y |
端口 & 界面
| DVI端口 |
Y |
| USB集线器版 |
USB 2.0 |
| USB Type-A 下游端口数量 |
1 |
| DVI-I接口数量 |
1 |
| VGA(D-SUB)端口数量 |
1 |
环境条件
| 运行湿度范围(H-H) |
10 - 90% |
| 储存温度范围 (T-T) |
-10 - 60 °C |
| 储存相对湿度范围(H - H) |
5 - 95% |
多媒体
| 集成电视调谐器 |
N |
| 内置摄像头 |
N |
| 内置扬声器 |
N |
认证标准
| 认证 |
RoHS, EN, CE, ISO, WEEE |
另外
| 显示器的颜色数量 |
16.78 million colours |
| 产品色彩 |
Black, White |
| 能源效率等级 |
Unspecified |
| 运行温度范围(T - T) |
0 - 40 °C |

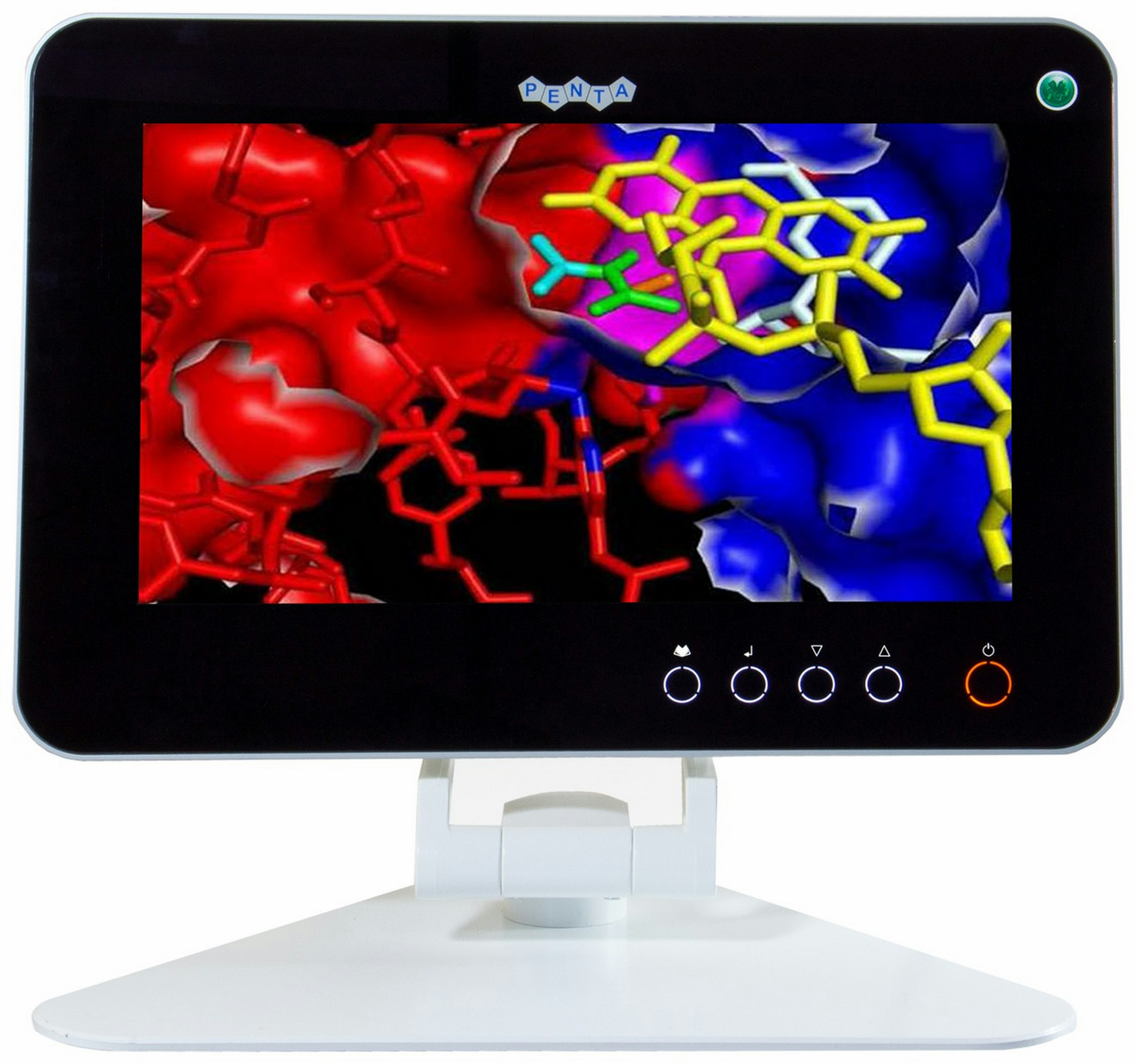

46.99 cm (18.5 ") LCD 1366 x 768 px, 16:9, 1000:1, 250 cd/m2, 5 ms, D-Sub, DVI-I, 8000 g, White/Black
- Modular high-end – Medical - Monitor with complete closed housing (IP65).
- Disinfectable and washable , fanless , sterile , fail-safe and maintenancefree.
- Durable and error-free even under critical environmental conditions.
- Fast data input via functionkeys as well as optional Touchscreen.
- Various input-devices are connectable.
- Ports : DVI, VGA.
- Passive cooling concept without ventilation-slot and without fan.
- Slim housing in Medical i5 / i7 design with especially plain surface, protected all around.
- Medical suited mounting- and fastening concept with VESA 100 Norm.
