重量和尺寸
| 风扇尺寸（宽×深×高） |
140 x 140 x 25 mm |
性能
| 最大气流 |
88.6 cfm |
| 最小气流 |
40.9 cfm |
| 最低空气压力 |
0.39 mmH2O |
| 最大空气压力 |
1.64 mmH2O |
| 噪音水平（低速） |
15.22 dB |
| 噪音水平（高速） |
19 dB |
| 转速（最小） |
600 RPM |
| 转速（最大） |
1300 RPM |
| 类型 |
Fan |
| 适用于 |
Computer case |
| 风扇数量 |
1 |
| 风扇直径 |
140 mm |

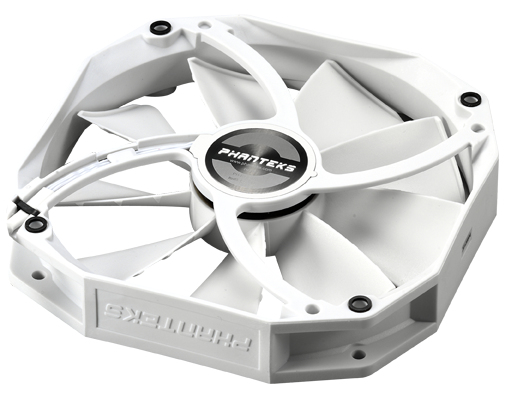

PWM Fan f/ CPU Cooler & Case, 600-1300rpm, 40.9-88.6CFM, 15.22-19dB, 0.39-1.64mmH2O, 12V DC, White
Designed specifically for CPU coolers, PH-F140HP fans with PWM functions is an excellent choice for
users demanding for a better cooler fan upgrade. PH-F140HP features 120mm mounting holes and
an octagon frame, this helps strengthen the frame structure while maintaining a slim profile creating
more space for memory clearance compared to the conventional square 140mm fans. the fans are
specifically deigned to overcome high static pressure, blade deflection and noise challenges.
MVB (Maelström Vortex Booster)
The new nine high pressure MVB blades are precisely angled to generate a silent controlled airflow. The blades produces a downdraft vortex allowing for greater amount of air passage through and reduce airflow turbulence across the surface of the blades to create significantly better performance and airflow while keeping noise to a minimum.
UFB bearing (Updraft Floating Balance bearing)
Composed by MOSS and SSC systems, Phanteks’ UFB bearings have an effective hub-tip ratio to achieve a state of equilibrium reducing air and vibration noise. SSC provides an increase in the bearing’s lifespan and ensures that the fan’s axis is consistently operational and quiet.
PWM Speed Control
PH-F140HP’s PWM functions allow users to adjust speed from 600 – 1300 RPM. Higher speed for performance and lower for silent operation.
