技术细节
| 在5000小时下的驱动故障率 |
0.5% |
| Optic material |
Acrylate |
| 光学外罩/ 透镜类型 |
Acrylic bowl/cover |
| 光学外罩/ 透镜材料 |
Acrylate |
| Ambient temperature range |
-30 - 45 °C |
| 平均环境温度 |
25 °C |
| 光学器件类型 |
Medium beam |
| 抗外部机械冲击防护等级代码 |
IK07 |
| 平均使用寿命 L90B50 |
25000 h |
| 平均使用寿命 L80B50 |
50000 h |
| 平均使用寿命 L70B50 |
70000 h |
| Initial chromaticy |
(0.38, 0.38) SDCM <3 |
| 灼热丝测试 |
650/5 |
设计
| Plafond颜色 |
White |
| 防护等级 |
I |
| 国际保护（IP）代码 |
IP65 |
| 材料 |
Acrylic glass, Aluminium, Steel |
灯
| 总功率 |
87 W |
| 兼容灯泡类型 |
LED |
| 兼容灯泡能效等级 |
A, A+, A++ |
| 色温 |
4000 K |
| 显色指数（CRI） |
80 |
| 灯泡数目 |
8 |
| 光通量 |
13000 lm |
性能
| RoHS符合性 |
Y |
| 认证 |
CE, ENEC |
| 数量 |
1 |
| (电磁)波束宽度 |
114 ° |
能量控制
| 电源类型 |
AC |
| 交流电（AC）输入电压 |
220-240 V |
| 交流电（AC）输入频率 |
50/60 Hz |
重量和尺寸
| 长度 |
450 mm |
| 重量 |
11100 g |
| 宽度 |
350 mm |
| 高度 |
130 mm |
另外
| Initial LED luminous efficacy |
149 lm/W |
| 产品色彩 |
Silver |
| 灯光颜色 |
Neutral white |
8x 87 W, 13000 lm, 149 lm/W, 4000K, >80 CRI, 114°, 220-240V, 50-60Hz, 11.1 kg

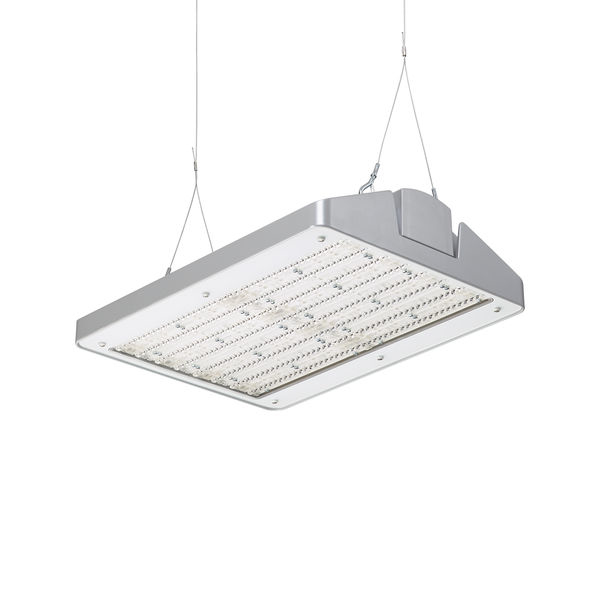

With the introduction of the GentleSpace LED luminaire in 2011, Philips achieved a breakthrough in high-bay lighting, offering a huge reduction in power consumption, a long service life and an innovative design. Now, with GentleSpace gen2, Philips continues to improve even further: an improved total cost of ownership, even in extreme conditions with the the GS-2 Xtreme version, which can be used up to +60 °C or 100,000 hrs of lifetime (L80), both ensured by an integrated over-heat protection. In addition, a wide variety of options – e.g. optics, coatings, mounting possibilities, cover materials and suitable for explosive zones 2/22 – are available to ensure an ideal solution for your application. Additionally, the GentleSpace gen2 can be equipped for use in a central emergency grid (PSED).
- Improved efficiency of up to 143 lm/W
- DALI-addressable for further energy savings (250S and 320S require two DALI addresses)
- Extremely long lifetime of up to 100,000 hours (XT version)
- Improved thermal management to withstand ambient temperatures up to 60 °C (XT version)
- Iconic design for architectural appeal
- Small surface makes it possible to meet ESFR sprinkler requirements
- Fully compliant with EN-12464-1; low glare rating and color rendering of ≥ 80
- Suitable for new builds or point-for-point replacement of HPI 250 W, HPL 400 W or HPI 400 W, reducing energy consumption by up to 60%
- Wide variety of optics, including asymmetrical for side-lit applications (ideal for indoor sports halls and industry) and very narrow beams for industrial halls up to 40 meters
- Polycarbonate or PMMA cover available for use in food industry
