卫星音箱
| 卫星音箱数量 |
2 |
| Satellite speaker woofer diameter (imperial) |
3 " |
| 卫星扬声器频率范围 |
150 - 20000 Hz |
| 卫星扬声器阻抗 |
3 Ω |
| 无线卫星扬声器 |
N |
视频
| 模拟信号系统 |
NTSC, PAL |
| 视频数字/模拟转换器 |
12-bit / 108MHz |
| 视频像素提升 |
Y |
| Full HD |
Y |
| 逐行扫描 |
Y |
其他功能
| 中置扬声器厚度 |
75 mm |
| 中置扬声器高度 |
105 mm |
| 超重低音扬声器宽度 |
163 mm |
| 中置扬声器宽度 |
440 mm |
| 前置扬声器宽度 |
103 mm |
| 后置扬声器宽度 |
262 mm |
| 后置扬声器厚度 |
264 mm |
| 后置扬声器高度 |
1199 mm |
| 前置扬声器厚度 |
71 mm |
| 前置扬声器高度 |
203 mm |
| 超重低音扬声器厚度 |
369 mm |
| 超重低音扬声器高度 |
363 mm |
| HDMI端口数量 |
1 |
超低音音箱
| Subwoofer driver diameter (imperial) |
6.5 " |
| 超重低音功率有效值 |
150 W |
| 无线低音炮 |
N |
| 超重低音频率范围 |
40 - 150 Hz |
| 超重低音炮阻抗 |
6 Ω |
| 超重低音扬声器类型 |
Passive subwoofer |
中置扬声器
| Center speaker woofer diameter (imperial) |
2.5 " |
| Center speaker tweeter diameter |
2 " |
| 中央扬声器阻抗 |
6 Ω |
| 中心扬声器频率范围 |
150 - 20000 Hz |
| 中置扬声器类型 |
3-way |
音频
| 音频数字/模拟转换器 |
24-bit / 192kHz |
| MP3 比特率 |
32 - 256 Kbit/s |
| 音频系统 |
DTS, Dolby Digital, Dolby Prologic II, Stereo |
| 均衡器 |
Y |
| 声音增强技术 |
Y |
端口 & 界面
| 分量视频(YPbPr/YCbCr)输出 |
1 |
| 数字音频同轴i输入 |
1 |
| 复合视频输出 |
1 |
| AUX 输入 |
Y |
| 超级视频输出 |
1 |
重量和尺寸
| 前置扬声器尺寸（宽 x 深 x 高） |
203 x 71 x 103 mm |
| 后方扬声器重量 |
3530 g |
| 卫星音箱尺寸（宽x深x高） |
262 x 264 x 1199 mm |
| 卫星扬声器重量 |
3530 g |
| 中央扬声器重量 |
1390 g |
| 超重低音炮重量 |
5080 g |
| 超重低音扬声器尺寸（宽x深x高） |
363 x 369 x 163 mm |
| 中置扬声器尺寸（宽x深x高） |
105 x 75 x 440 mm |
| 前扬声器重量 |
540 g |
| 主机身尺寸（宽 x 深 x 高） |
435 x 360 x 58 mm |
| 主机重量 |
3700 g |
光盘驱动器
| 包含DVD播放器/录音机 |
DVD player |
| 光盘类型支持 |
CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW |
| 播放光盘格式 |
CD audio, CD video, SVCD, VCD |
技术细节
| 放映幻灯片 |
Y |
| 卡拉 OK |
Y |
| 超重低音扬声器 |
Y |
| MP3播放 |
Y |
| CD－RW播放 |
Y |
| 支持的视频格式 |
JPG |
| 频率范围 |
150 - 18000 Hz |
| 与苹果产品对接兼容性 |
Not supported |
| 消费电子控制（CEC） |
EasyLink |

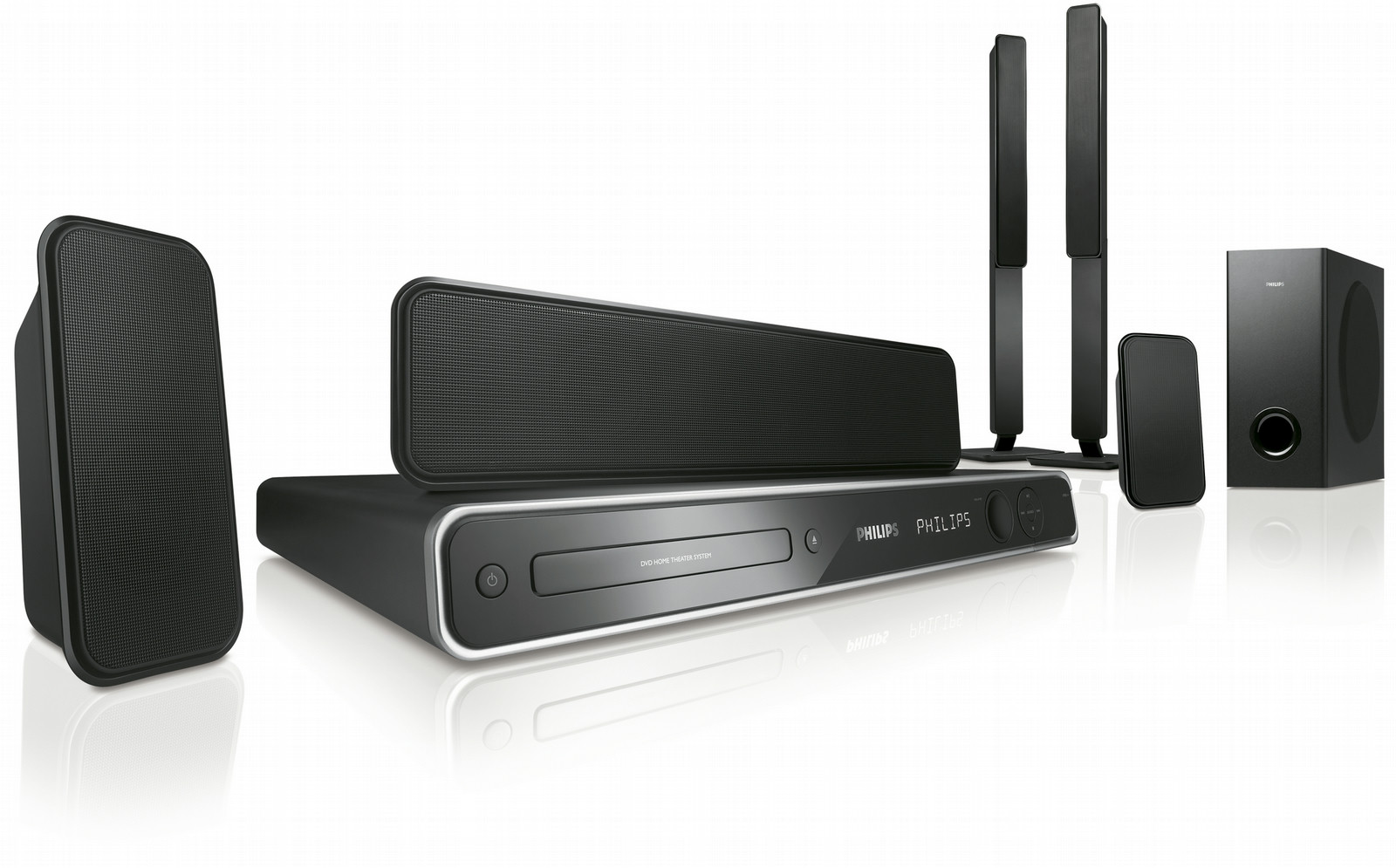

HTS3366/98 - 4 x 75 + 2 x 150 W RMS, DVD, HDMI, USB, DTS, Dolby Digital, Dolby Prologic II
Connect and enjoy multiple sources
- Hi-Speed USB 2.0 Link plays video/music from USB flash drive
Bring audio and video to life
- HDMI 1080p upscales to high definition for sharper pictures
- DoubleBASS for an extended, deep bass experience
- Karaoke Scoring for fun and exciting song contests at home
- DTS, Dolby Digital and Pro Logic II surround sound
- Clear Voice for more audible vocals in movies and music
Play all your movies and music
- DivX Ultra Certified for enhanced playback of DivX videos
- Plays WMV, DivX, WMA, MP3 and JPEG digital camera photos
- Plays CD, (S)VCD, DVD, DVD+R/RW, DVD-R/RW, DVD+R DL
Easy to set up and use
- EasyLink controls all EasyLink products with a single remote
- Floor standing speakers for freedom of placement
Hi-Speed USB 2.0 Link plays video/music from USB flash drive
The Universal Serial Bus or USB is a protocol standard that is conveniently used to link PCs, peripherals and consumer electronic equipment. Hi-Speed USB devices have a data transfer rate of up to 480 Mbps - up from the 12 Mbps in original USB ones. With Hi-Speed USB 2.0 Link, all you have to do is plug in your USB device, select the movie, music or photo and play away.
HDMI 1080p upscales to high definition for sharper pictures
HDMI 1080p upscaling delivers images that are crystal clear. Movies in standard definition can now be enjoyed in true high definition resolution - ensuring more details and more true-to-life pictures. Progressive Scan (represented by "p" in "1080p') eliminates the line structure prevalent on TV screens, again ensuring relentlessly sharp images. To top it off, HDMI makes a direct digital connection that can carry uncompressed digital HD video as well as digital multichannel audio, without conversions to analog - delivering perfect picture and sound quality, completely free from noise.
DoubleBASS for an extended, deep bass experience
DoubleBASS ensures you hear even the deepest bass tones from compact-sized subwoofers. It captures low frequencies and recreates them in the audible range of the subwoofer - delivering sound with more boom and panache, and ensuring you a full, uncompromised listening experience.
Karaoke Scoring for fun and exciting song contests at home
Add a dash of fun to your Karaoke sessions with Karaoke Scoring. Allow your performance to be judged for further improvement, or for friendly competitions. Karaoke Scoring automatically rates your singing and gives you a humorous picture that is tied to how well you did. The fun never ends.
DTS, Dolby Digital and Pro Logic II surround sound
A built-in DTS and Dolby Digital decoder eliminates the need for an external decoder by processing all six channels of audio information to provide a surround sound experience and an astoundingly natural sense of ambience and dynamic realism. Dolby Pro Logic II provides five channels of surround processing from any stereo source.
DivX Ultra Certified for enhanced playback of DivX videos
With DivX support, you are able to enjoy DivX encoded videos in the comfort of your living room. The DivX media format is an MPEG4-based video compression technology that enables you to save large files like movies, trailers and music videos on media like CD-R/RW, and DVD recordable discs. DivX Ultra combines DivX playback with great features like integrated subtitles, multiple audio languages, multiple tracks and menus into one convenient file format.
Clear Voice for more audible vocals in movies and music
Critical moments in a conversation or inspiring lyrics to a song are too often missed. Rewinding the DVD disrupts the entertainment, whilst simply ignoring what was missed diminishes the enjoyment. Clear Voice is an innovative audio technology that significantly increases the intelligibility of vocalizations, whether spoken or sang. It ensures you hear every word - so you can enjoy what you're watching to the fullest.
EasyLink controls all EasyLink products with a single remote
EasyLink lets you control multiple devices with one remote. It uses HDMI CEC industry-standard protocol to share functionality between devices through the HDMI cable. With one touch of a button, you can operate all your connected HDMI CEC enabled equipment simultaneously. Functions like standby and play can now be carried out with absolute ease.
Plays WMV, DivX, WMA, MP3 and JPEG digital camera photos
Play virtually any media format you want - whether they be WMV, DivX, MP3s or JPEGs. Experience the unbeatable convenience of great playability, and the luxury of sharing media files on your TV or home theater system - in the comfort of your living room.
Plays CD, (S)VCD, DVD, DVD+R/RW, DVD-R/RW, DVD+R DL
Play virtually any disc you want - whether they be CDs, (S)VCDs, DVDs, DVD+R, DVD-R, DVD+RW, DVD-RW or DVD+R DL. Experience unbeatable flexibility and the convenience of playing all your discs on the one device.
Floor standing speakers for freedom of placement
