性能
额定功率 |
18 W |
光通量 |
1350 lm |
灯泡功率 |
18 W |
灯泡使用寿命(@ EM 50% 失效时之寿命) |
15000 h |
色坐标 X |
378 |
色坐标 Y |
373 |
设计温度 |
25 °C |
发光效率 |
75 lm/W |
灯泡使用寿命(@ EM 10% 失效时之寿命) |
10000 h |
色温 |
4100 K |
调光 |
Y |
灯泡尺寸 |
T8 |
显色指数(CRI) |
85 |
汞含量 |
5 mg |
能量控制
能量消耗(1000 小时) |
22 kWh |
灯泡电流 |
360 mA |

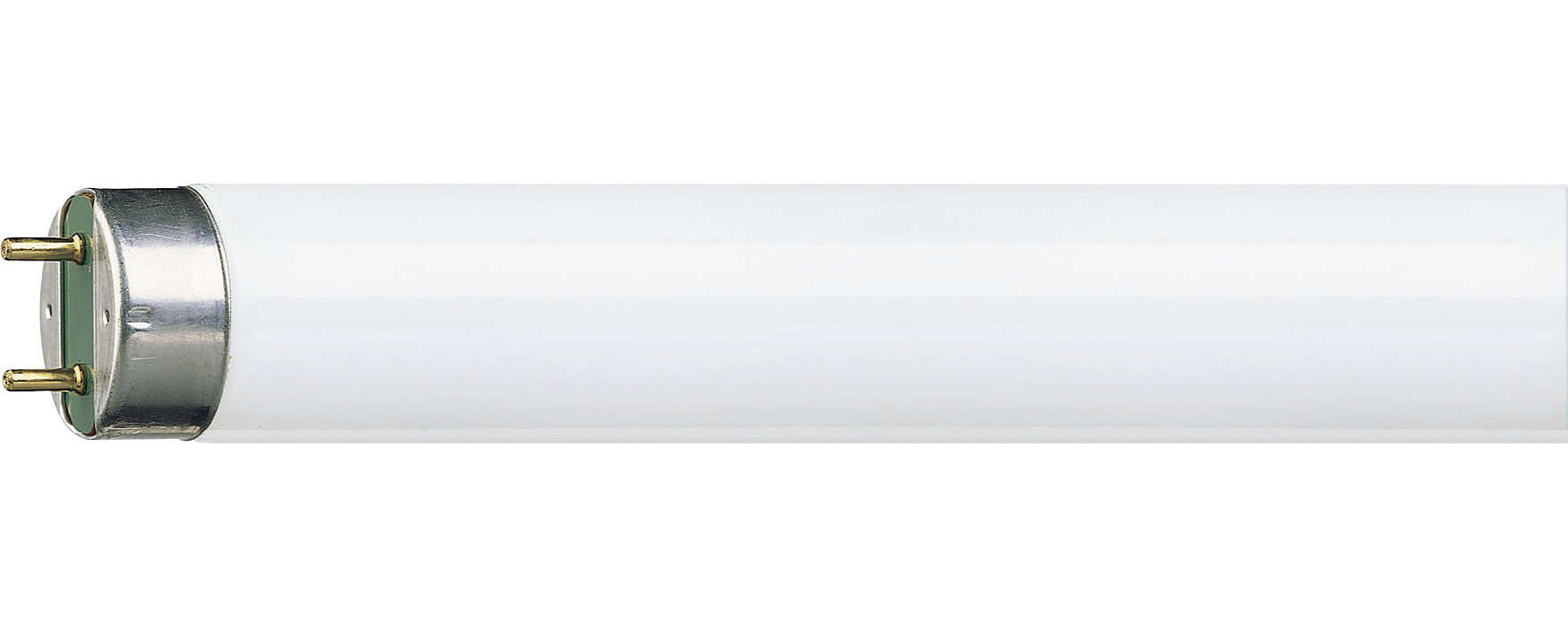

MASTER TL-D Reflex, 18 W, G13, 4100 K, 1350 lm, 68.9 g
Low-pressure mercury discharge lamps with a tubular 26 mm envelope
<b>Benefits</b>
- Internal reflector directs the light where it is needed
- Energy savings of 30-50% in non-reflector luminaires without loss of light
- Internal reflector is not affected by dust accumulation (in contrast to normal TL-D lamps)
- Relatively high efficacy, both initially and during lifetime, with high lumen maintenance
<b>Features</b>
- Internal reflector directs the light via a 160° ‘window’
- Reflector directs 85% of the light downwards avoiding wasted light
- Direct retrofit for existing fluorescent fittings operating on conventional or HF gear
- High-quality lighting with good colour rendering (CRI>80)
- Light output comparable to other TL-D Super 80 colours
- Lumen maintenance and lifetime the same as other TL-D Super 80 colours
- Dimmable
<b>Application</b>
- Luminaires without reflectors or with only simple reflectors, mainly found in industry and shops / supermarkets
<b>Warnings and Safety</b>
- A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner.
